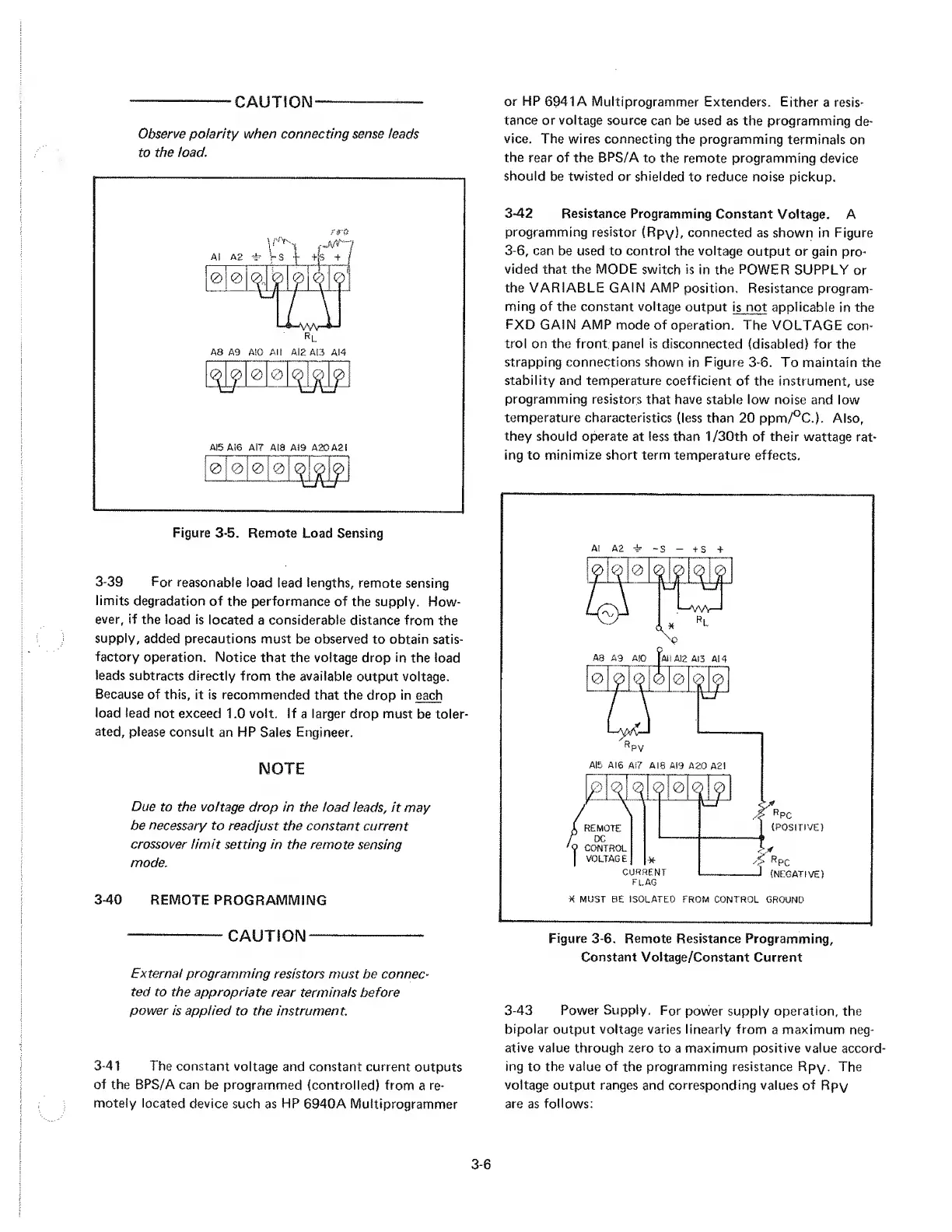

Page #15 background imageLoading...
Page #15 background image
CAUTION
Observe
polarity
when
connecting
sense
leads
to
the
load.
3-39
For
reasonable
load
lead
lengths,
remote
sensing
limits
degradation
of
the
performance
of
the
supply.
How¬
ever,
if
the
load
is
located
a
considerable
distance
from
the
supply,
added
precautions
must
be
observed
to
obtain
satis¬
factory
operation.
Notice
that
the
voltage
drop
in
the
load
leads
subtracts
directly
from
the
available
output
voltage.
Because
of
this,
it
is
recommended
that
the
drop
in
each
load
lead
not
exceed
1.0
volt,
if
a
larger
drop
must
be
toler¬
ated,
please
consult
an
HP
Sales
Engineer.
NOTE
Due
to
the
voltage
drop
in
the
load
leads,
it
may
be
necessary
to
readjust
the
constant
current
crossover
limit
setting
in
the
remote
sensing
mode.
3-40
REMOTE
PROGRAMMING
---CAUTION--—
External
programming
resistors
must
be
connec¬
ted
to
the
appropriate
rear
terminals
before
power
is
applied
to
the
instrument
3-41
The
constant
voltage
and
constant
current
outputs
of
the
BPS/A
can
be
programmed
{controlled)
from
a
re¬
motely
located
device
such
as
HP
6940A
Multiprogrammer
or
HP
6941A
Multiprogrammer
Extenders.
Either
a
resis¬
tance
or
voltage
source
can
be
used
as
the
programming
de¬
vice.
The
wires
connecting
the
programming
terminals
on
the
rear
of
the
BPS/A
to
the
remote
programming
device
should
be
twisted
or
shielded
to
reduce
noise
pickup,
3-42
Resistance
Programming
Constant
Voltage.
A
programming
resistor
(Rpy),
connected
as
shown
in
Figure
3-6,
can
be
used
to
control
the
voltage
output
or
gain
pro¬
vided
that
the
MODE
switch
is
in
the
POWER
SUPPLY
or
the
VARIABLE
GAIN
AMP
position.
Resistance
program¬
ming
of
the
constant
voltage
output
is
not
applicable
in
the
FXD
GAIN
AMP
mode
of
operation.
The
VOLTAGE
con¬
trol
on
the
front
panel
is
disconnected
(disabled)
for
the
strapping
connections
shown
in
Figure
3-6.
To
maintain
the
stability
and
temperature
coefficient
of
the
instrument,
use
programming
resistors
that
have
stable
low
noise
and
low
temperature
characteristics
{less
than
20
ppm/°C.).
Also,
they
should
operate
at
less
than
1/30th
of
their
wattage
rat¬
ing
to
minimize
short
term
temperature
effects.
X
MUST
BE
ISOLATED
FROM
CONTROL
GROUND
Figure
3-6.
Remote
Resistance
Programming,
Constant
Voltage/Constant
Current
3-43
Power
Supply.
For
power
supply
operation,
the
bipolar
output
voltage
varies
linearly
from
a
maximum
neg¬
ative
value
through
zero
to
a
maximum
positive
value
accord
ing
to
the
value
of
the
programming
resistance
Rpv-
The
voltage
output
ranges
and
corresponding
values
of
Rpy
are
as
follows:
3-6
