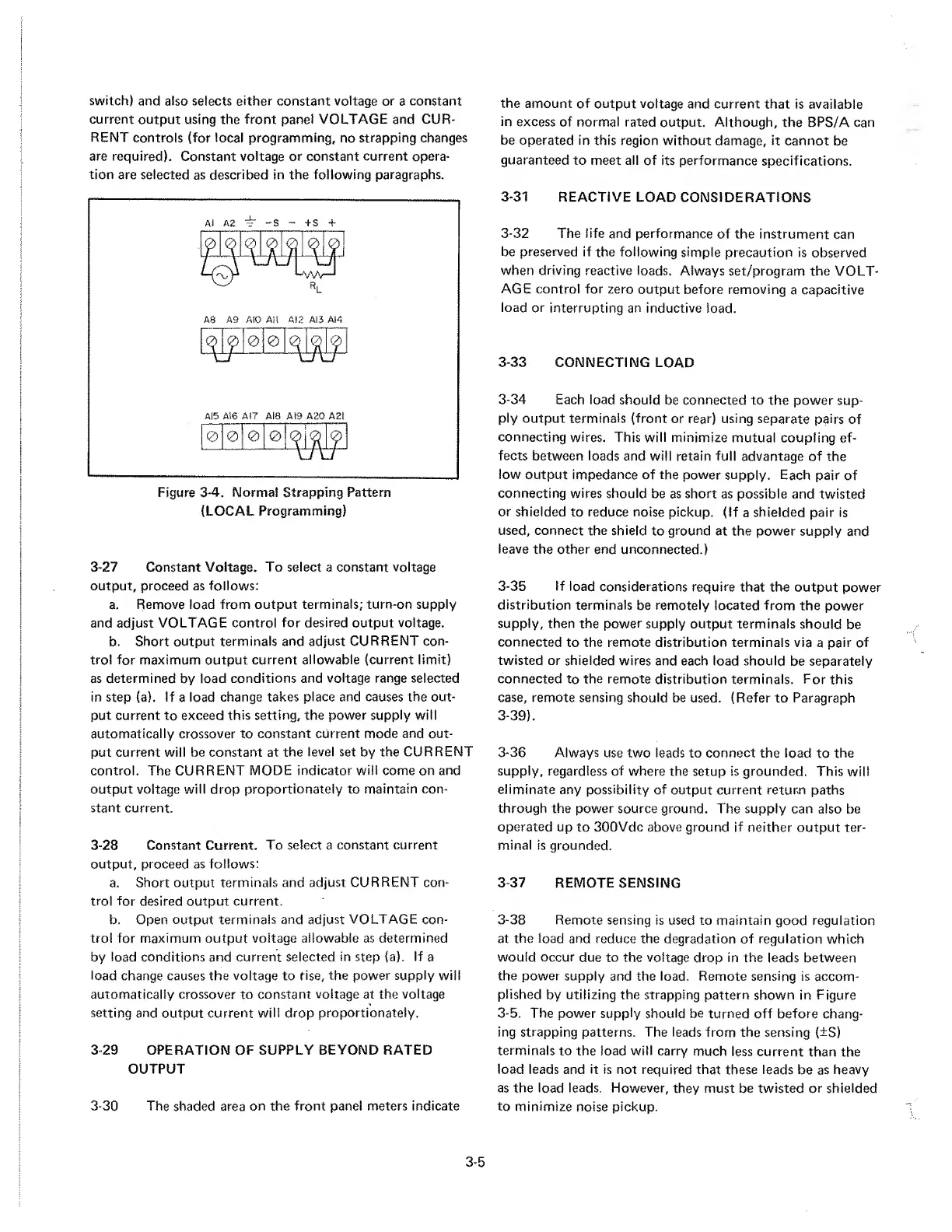

switch)
and
also
selects
either
constant
voltage
or
a
constant
current
output
using
the
front
pane!
VOLTAGE
and
CUR¬
RENT
controls
(for
local
programming,
no
strapping
changes
are
required).
Constant
voltage
or
constant
current
opera¬
tion
are
selected
as
described
in
the
following
paragraphs.
(LOCAL
Programming)
3-27
Constant
Voltage.
To
select
a
constant
voltage
output,
proceed
as
follows;
a.
Remove
load
from
output
terminals;
turn-on
supply
and
adjust
VOLTAGE
control
for
desired
output
voltage.
b.
Short
output
terminals
and
adjust
CURRENT
con¬
trol
for
maximum
output
current
allowable
(current
limit)
as
determined
by
load
conditions
and
voltage
range
selected
in
step
(a).
If
a
load
change
takes
place
and
causes
the
out¬
put
current
to
exceed
this
setting,
the
power
supply
will
automatically
crossover
to
constant
current
mode
and
out¬
put
current
will
be
constant
at
the
level
set
by
the
CURRENT
control.
The
CURRENT
MODE
indicator
will
come
on
and
output
voltage
will
drop
proportionately
to
maintain
con¬
stant
current.
3-28
Constant
Current.
To
select
a
constant
current
output,
proceed
as
follows;
a.
Short
output
terminals
and
adjust
CURRENT
con¬
trol
for
desired
output
current.
b.
Open
output
terminals
and
adjust
VOLTAGE
con¬
trol
for
maximum
output
voltage
allowable
as
determined
by
load
conditions
and
current
selected
in
step
(a).
If
a
load
change
causes
the
voltage
to
rise,
the
power
supply
will
automatically
crossover
to
constant
voltage
at
the
voltage
setting
and
output
current
will
drop
proportionately,
3-29
OPERATION
OF
SUPPLY
BEYOND
RATED
OUTPUT
3-30
The
shaded
area
on
the
front
panel
meters
indicate
the
amount
of
output
voltage
and
current
that
is
available
in
excess
of
normal
rated
output.
Although,
the
BPS/A
can
be
operated
in
this
region
without
damage,
it
cannot
be
guaranteed
to
meet
all
of
its
performance
specifications.
3-31
REACTIVE
LOAD
CONSIDERATIONS
3-32
The
life
and
performance
of
the
instrument
can
be
preserved
if
the
following
simple
precaution
is
observed
when
driving
reactive
loads.
Always
set/program
the
VOLT¬
AGE
control
for
zero
output
before
removing
a
capacitive
load
or
interrupting
an
inductive
load.
3-33
CONNECTING
LOAD
3-34
Each
load
should
be
connected
to
the
power
sup¬
ply
output
terminals
(front
or
rear)
using
separate
pairs
of
connecting
wires.
This
will
minimize
mutual
coupling
ef¬
fects
between
loads
and
will
retain
full
advantage
of
the
low
output
impedance
of
the
power
supply.
Each
pair
of
connecting
wires
should
be
as
short
as
possible
and
twisted
or
shielded
to
reduce
noise
pickup.
(If
a
shielded
pair
is
used,
connect
the
shield
to
ground
at
the
power
supply
and
leave
the
other
end
unconnected.)
3-35
If
load
considerations
require
that
the
output
power
distribution
terminals
be
remotely
located
from
the
power
supply,
then
the
power
supply
output
terminals
should
be
connected
to
the
remote
distribution
terminals
via
a
pair
of
twisted
or
shielded
wires
and
each
load
should
be
separately
connected
to
the
remote
distribution
terminals.
For
this
case,
remote
sensing
should
be
used.
(Refer
to
Paragraph
3-39).
3-36
Always
use
two
leads
to
connect
the
load
to
the
supply,
regardless
of
where
the
setup
is
grounded.
This
will
eliminate
any
possibility
of
output
current
return
paths
through
the
power
source
ground.
The
supply
can
also
be
operated
up
to
300Vdc
above
ground
if
neither
output
ter¬
minal
is
grounded.
3-37
REMOTE
SENSING
3-38
Remote
sensing
is
used
to
maintain
good
regulation
at
the
load
and
reduce
the
degradation
of
regulation
which
would
occur
due
to
the
voltage
drop
in
the
leads
between
the
power
supply
and
the
load.
Remote
sensing
is
accom¬
plished
by
utilizing
the
strapping
pattern
shown
in
Figure
3-5.
The
power
supply
should
be
turned
off
before
chang¬
ing
strapping
patterns.
The
leads
from
the
sensing
(±S)
terminals
to
the
load
will
carry
much
less
current
than
the
load
leads
and
it
is
not
required
that
these
leads
be
as
heavy
as
the
load
leads.
However,
they
must
be
twisted
or
shielded
to
minimize
noise
pickup.
3-5
