HP 7506 Product End-Of-Life Disassembly Instructions

EL-MF877-00 Page 4
Template Revision B
1. Unscrew the screws on PCB 4-2, and then remove PCB 4-2;
2. Unscrew the screws on PCB support plate 4-3, and then remove PCB support plate;
3. Unscrew the screws on PCB 4-4, and then remove PCB 4-4;
4. Remove shielding finger 4-5 from front panel 4-1;
5. Remove film 4-6 from front panel 4-1.
3.1.3 Guidance of treatments to module 5:

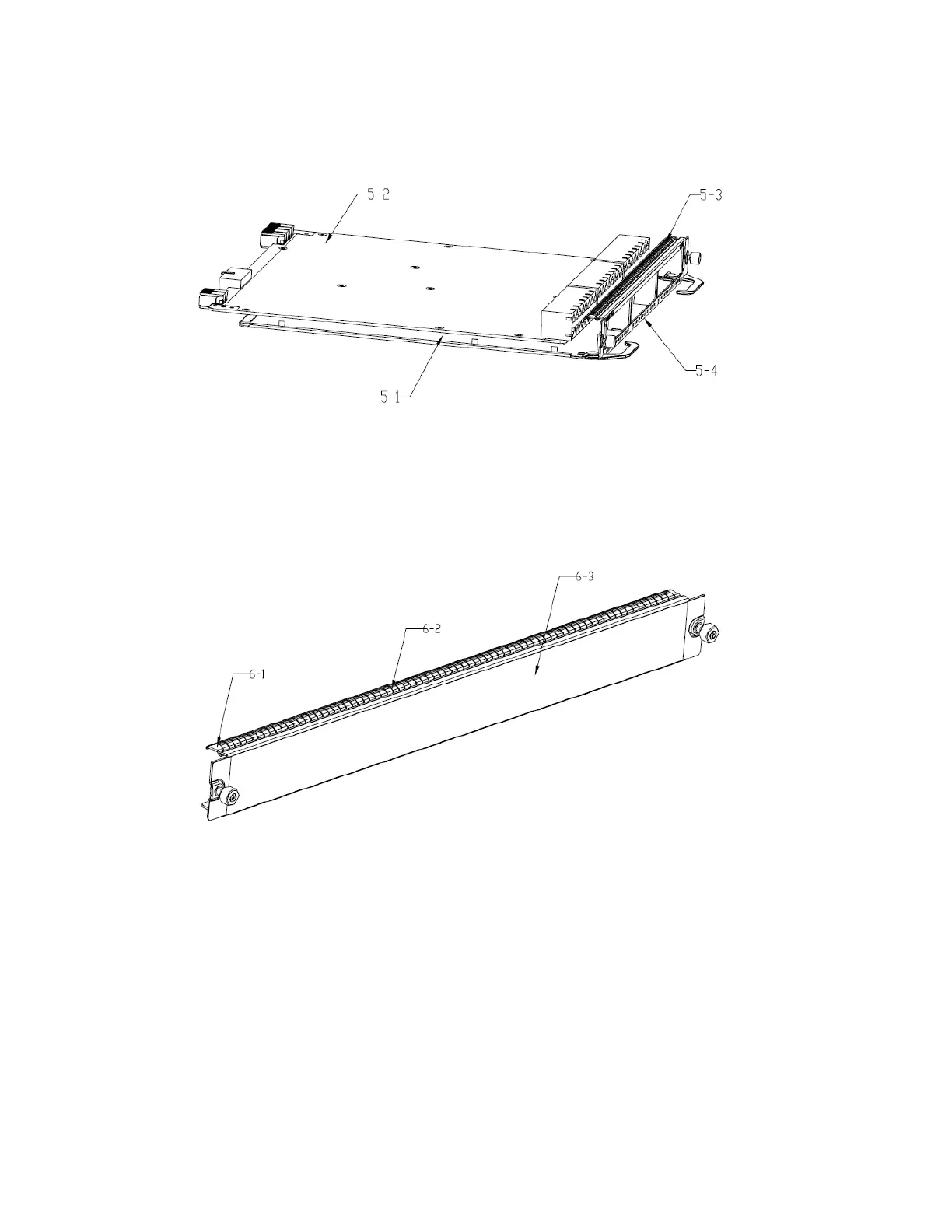

Figure 4 Treatments to module 5
1. Unscrew the screws on PCB 5-2, and then remove PCB 5-2;
2. Remove shielding finger 5-3 from front panel 5-1;
3. Remove film 5-4 from front panel 5-1.
3.1.4 Guidance of treatments to blank panel 6:
Figure 5 Treatments to blank panel 6
1. Remove shielding finger 6-2 from blank panel 6-1;
2. Remove film 6-3 from blank panel 6-1.
