INTERNAL FREQUENCY
STANDARD OUTPUT CHECK
Test
Setup
ON
THE
DUT:
Press
[INSTR
PRESET].
Connect
the
rear
panel
INT FREQUENCY
STANDARD BNC
directly
to the
input
on
the
spectrum
analyzer.
The DUT's
UNLOCK
annunciator
will
come
on,
this will
not
affect the
test.
Place the
FREQUENCY
STANDARD
switch
into
the INT
position.
ON
THE
SPECTRUM
ANALYZER:
Refer
to
the
figure
below for
appropriate
front
panel
settings.
Set
the
rear
panel
FREQ
REFERENCE
switch
to
INT.
Proper
Waveform
Parameters
As
shown
in
the
figure
below,
and
within
the
following
parameters:
Frequency
=10
MHz
Power
>.
OdBm
Harmonics
<.
—40dBc
REF
10
dB^
MKR
10.01
MHz
10.0
dBm
RTTEN
20
dB
4
•
0B
dBln
^——
f
1
^
^——
}-
STRRT
5.0
MHz
STOP
35.0
MHz
SMP
900
msec
RES
BW
100
kHz
VBM
1
kHz

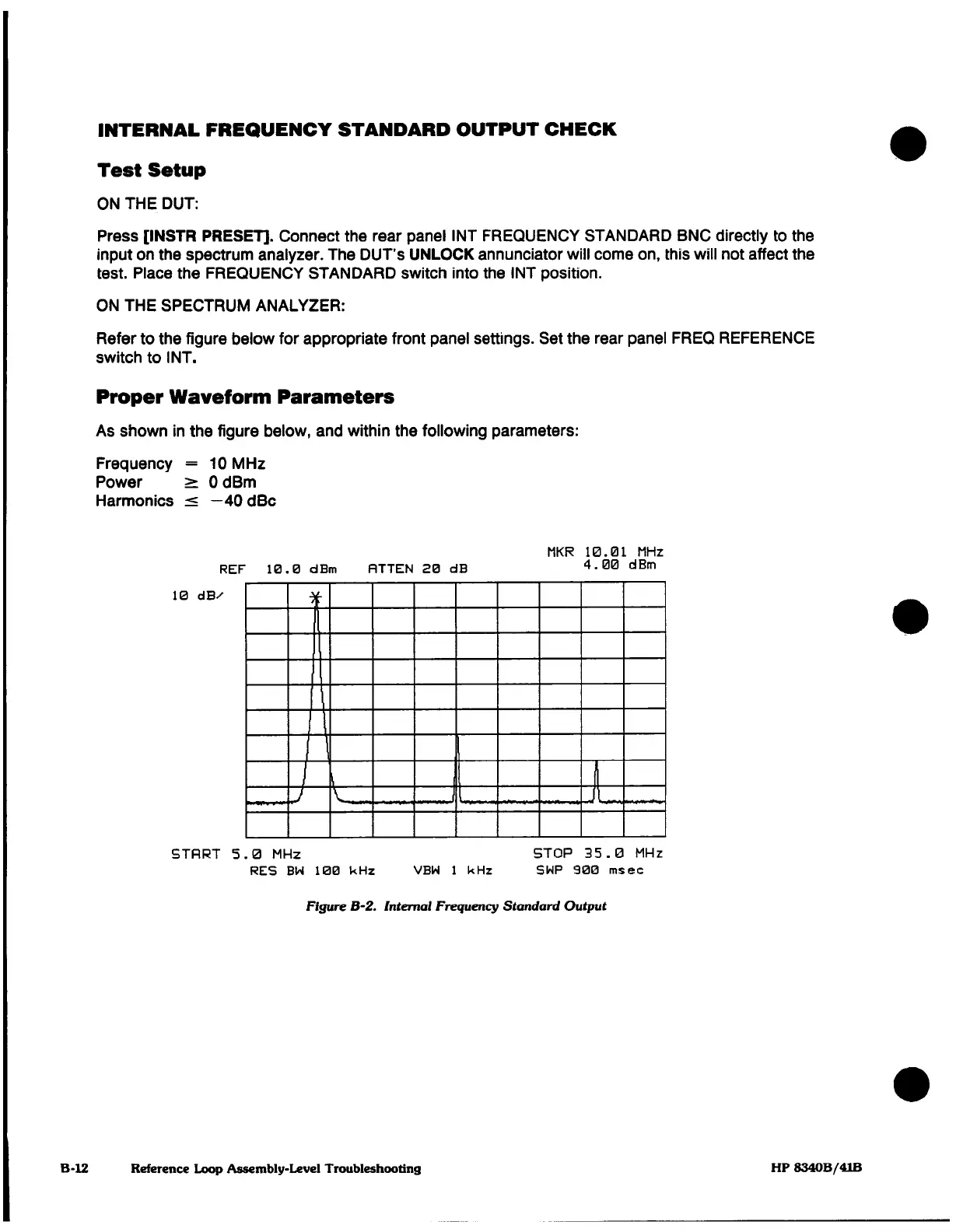

Figure
B-2.
Internal
Frequency
Standard
Output
Reference
Loop
Assembly-Level
Troubleshooting HP 8340B/41B
