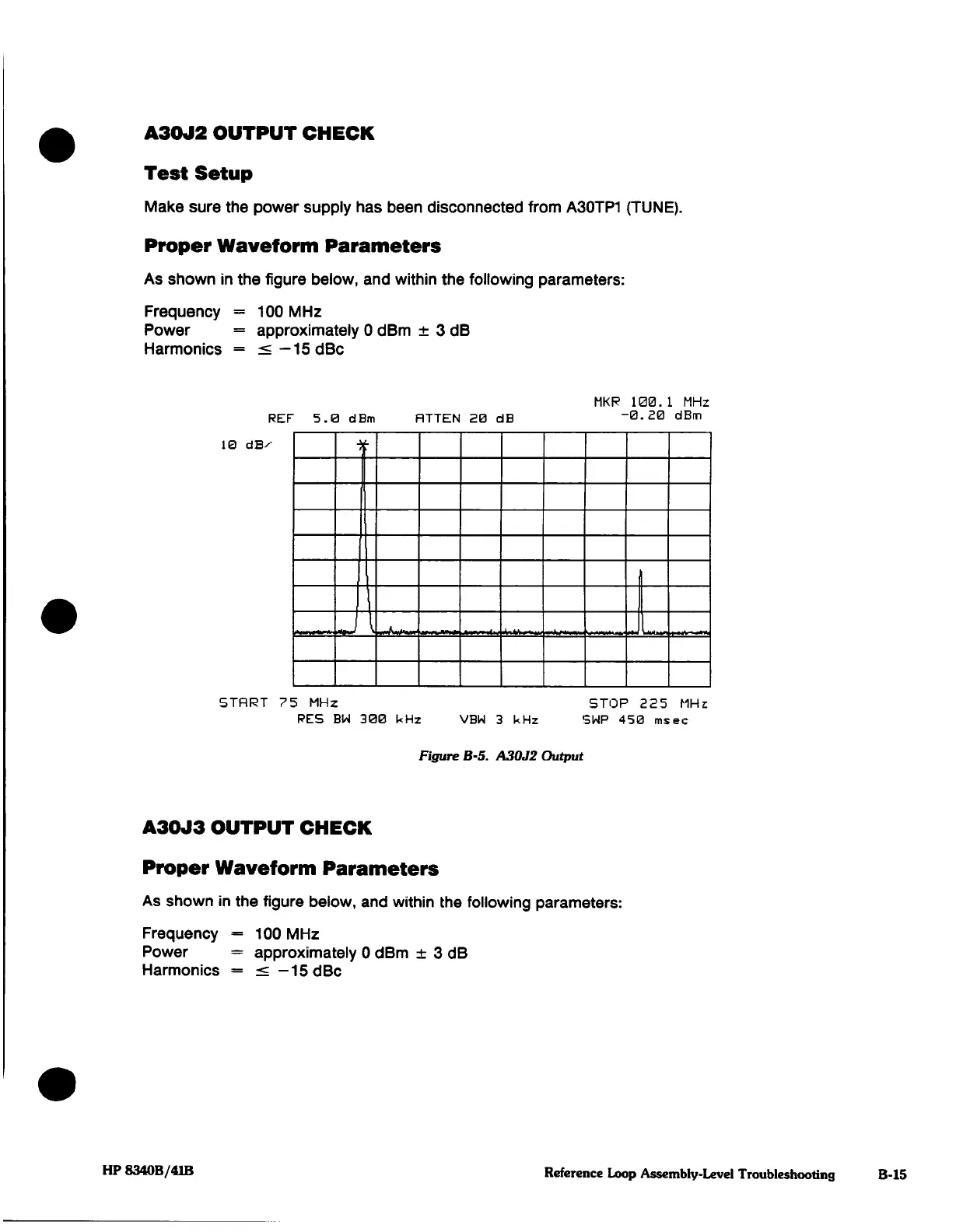

A30J2
OUTPUT
CHECK
Test
Setup
Make
sure
the
power
supply
has
been
disconnected
from
A30TP1
(TUNE).
Proper Waveform Parameters
As
shown
in
the
figure
below,
and
within
the
following
parameters:
Frequency
=
100
MHz
Power
=
approximately
0
dBm
±
3
dB
Harmonics
=
^—15dBc
REF
1B
dB/'
MKR
100.1
MHz
5.0
dBm HTTEN
20
dB
-0.20
dBm
:
--
1
5TRRT
75
MHz STOP
225
MHz
SWP
450
msec
PES
BM
300
kHz
VBM
3
kHz
Figure
B-5.
A30J2
Output
A30J3 OUTPUT
CHECK
Proper Waveform
Parameters
As
shown
in
the
figure
below,
and
within the
following
parameters:
Frequency
=
100
MHz
Power
=
approximately
0
dBm
±
3
dB
Harmonics
=
^
-15dBc
HP 8340B/41B
Reference
Loop
Assembly-Level
Troubleshooting
