BOTTOM
VIEW
A48YO
Loop Sampler
A49
YO
Loop
Phase
Detector
A54
YO
Pretune/
Delay
Compensation

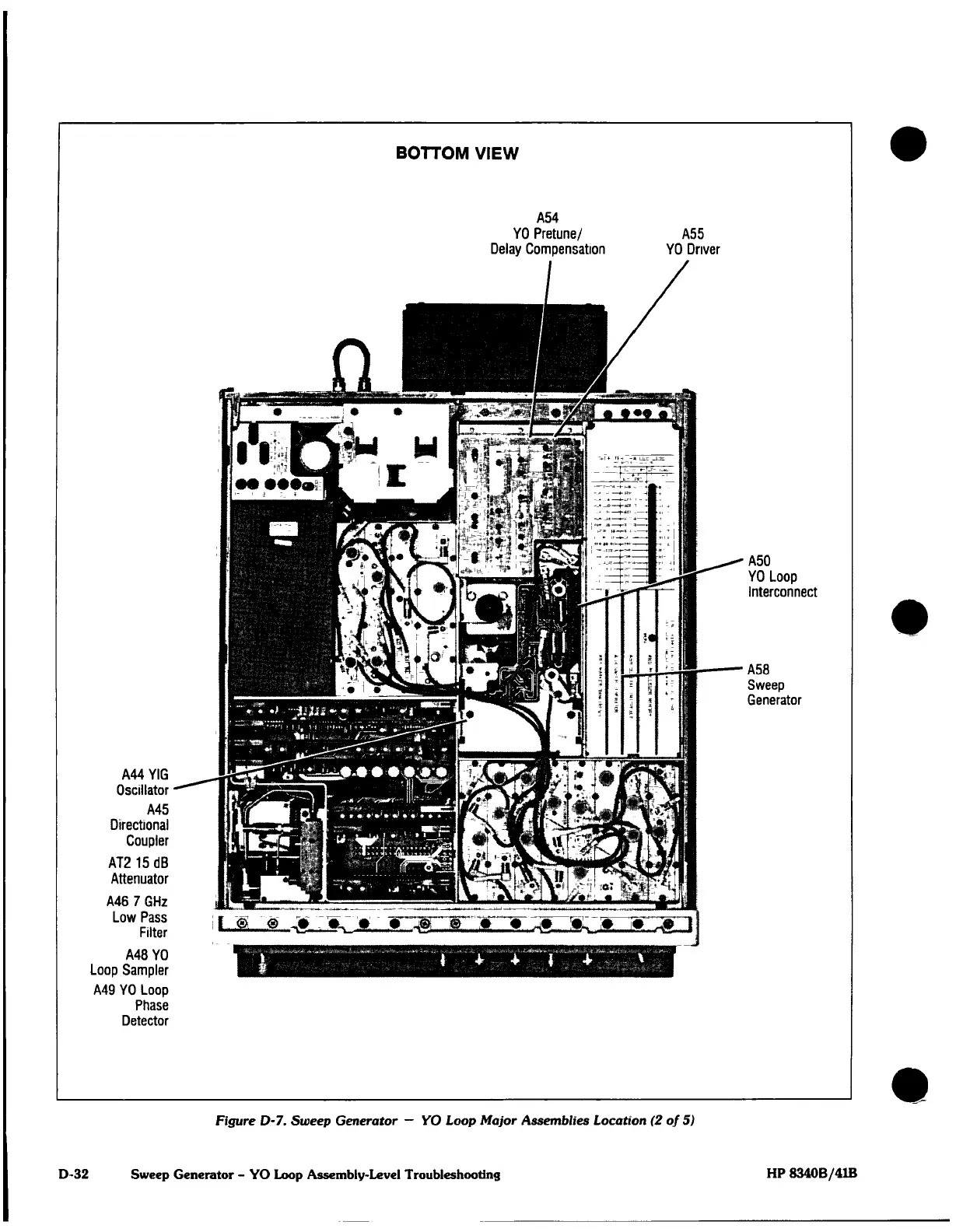

Figure
D-7.
Sweep
Generator
—
YO
Loop
Major
Assemblies
Location
(2
of
5)
D-32
Sweep
Generator
-
YO
Loop
Assembly-Level Troubleshooting
HP 8340B/41B
