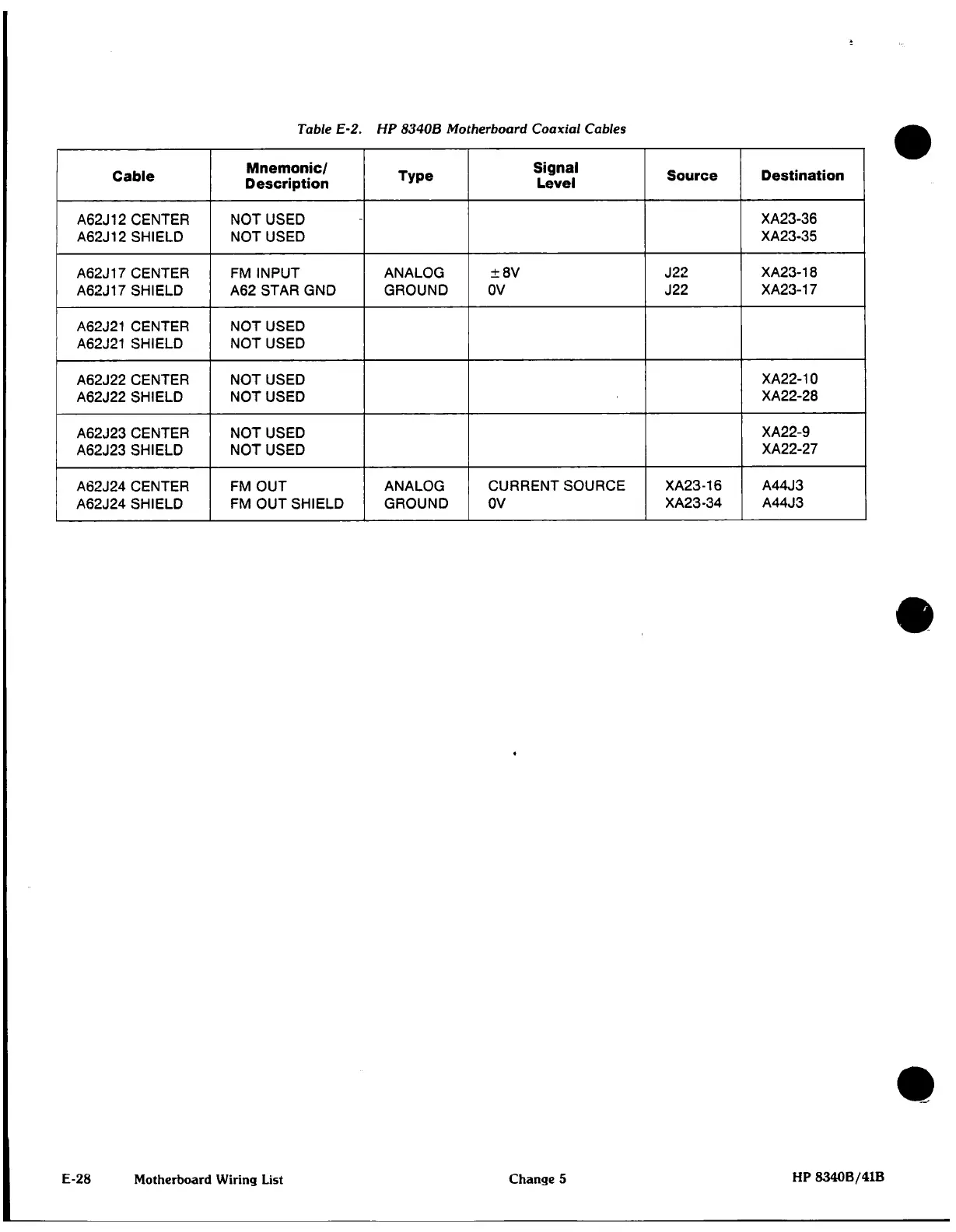

Table
E-2.
HP 8340B
Motherboard Coaxial
Cables
Cable
A62J12
CENTER
A62J12
SHIELD
A62J 17
CENTER
A62J17
SHIELD
A62J21
CENTER
A62J21
SHIELD
A62J22
CENTER
A62J22
SHIELD
A62J23
CENTER
A62J23
SHIELD
A62J24
CENTER
A62J24 SHIELD
Mnemonic/
Description
NOT
USED
NOT
USED
FM INPUT
A62
STAR GND
NOT
USED
NOT
USED
NOT
USED
NOT USED
NOT USED
NOT
USED
FMOUT
FM
OUT SHIELD
Type
ANALOG
GROUND
ANALOG
GROUND
Signal
Level
±8V
0V
CURRENT
SOURCE
0V
Source
J22
J22
XA23-16
XA23-34
Destination
XA23-36
XA23-35
XA23-18
XA23-17
XA22-10
XA22-28
XA22-9
XA22-27
A44J3
A44J3
E-28
Motherboard
Wiring List
Change
5
HP 8340B/41B
