REAR
PANEL
A26
LINEAR
MODULATOR
s
A21 PULSE
MODULATOR
DRIVER
£
A25
ALC
DETECTOR
t
AGO
PROCESSOR
Ji
A16
MODULATOR
SPLITTER
RIGID
COAX
OPTION
004
A10
DIRECTIONAL
COUPLER
RIGID
OPTION
005
A10
DIRECTIONAL
COUPLER
-e-
RIGID

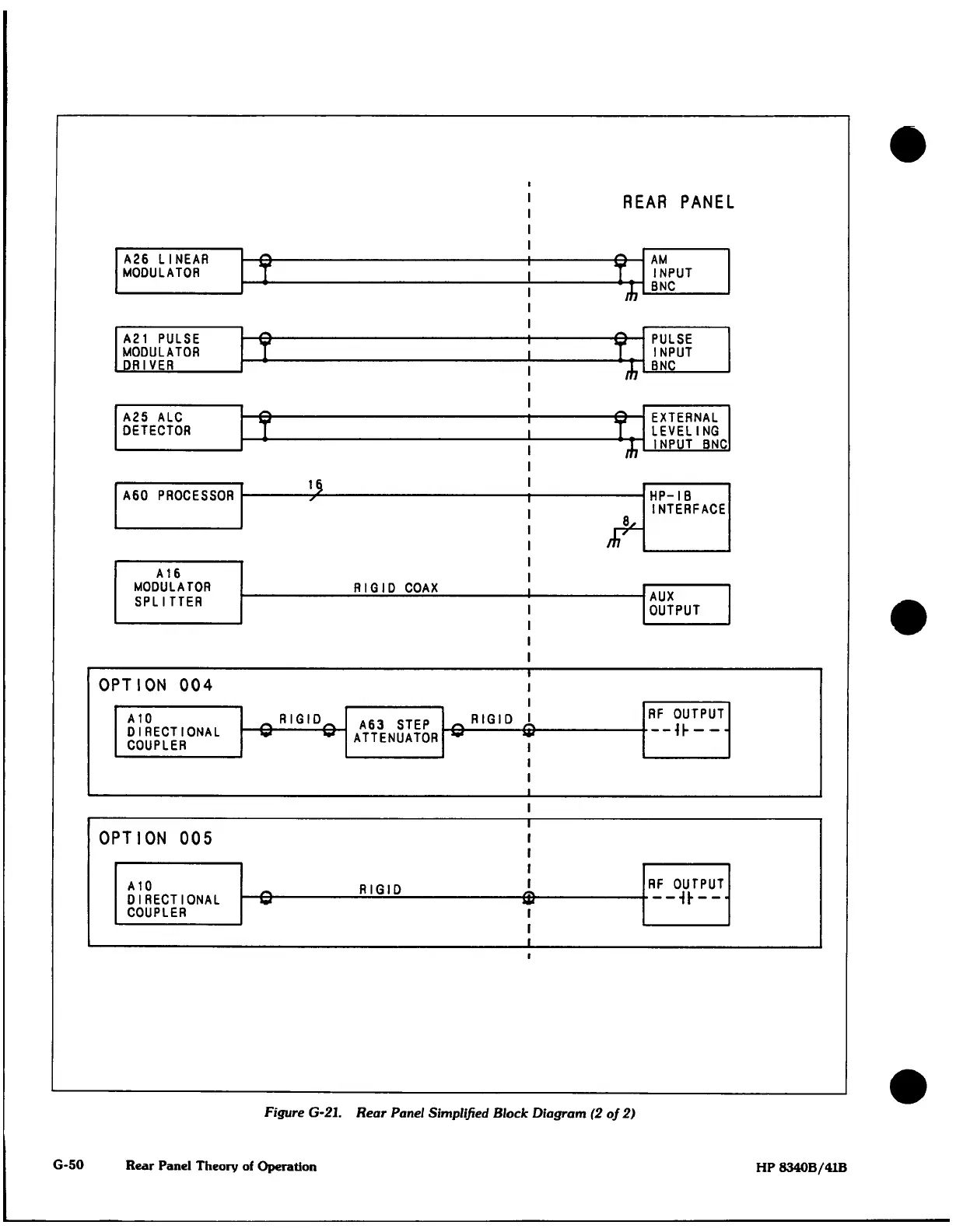

Figure G-21.
Rear
Panel
Simplified
Block
Diagram
(2
of
2)
G-50
Rear
Panel
Theory
of
Operation
HP
8340B/41B
