Appendix D Model 8642A/B

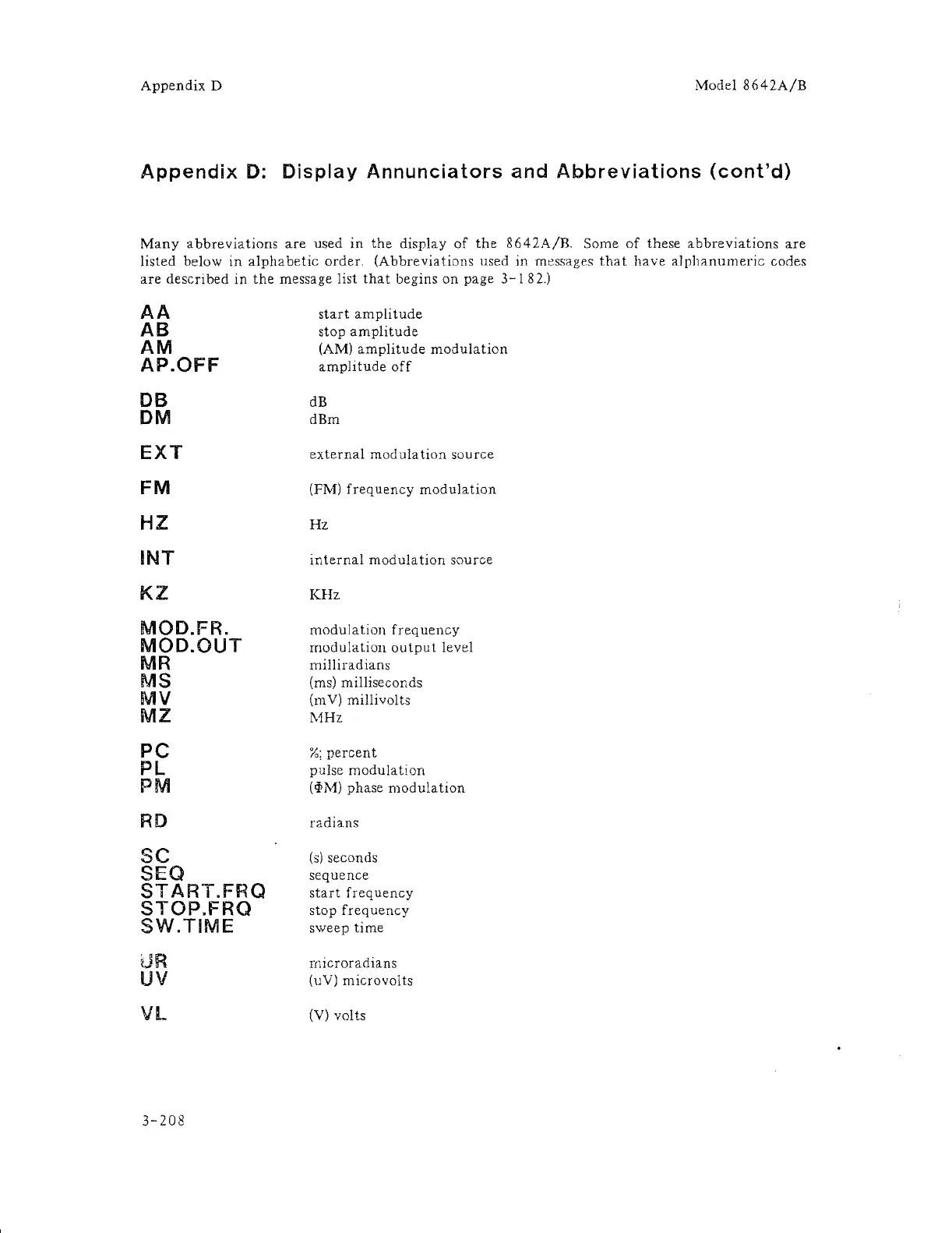

Appendix D: Display Annunciators and Abbreviations (cont'd)
Many abbreviations are used in the display of the 8642A/B. Some of these abbreviations are
listed below in alphabetic order. (Abbreviations used in me.ssages that have alphanumeric codes
are described in the message list that begins on page 3-182.)
AA
AB
AM
AP.OFF
DB
DM
EXT
FM
HZ
INT
KZ
MOD.FR.
MOD.OUT
MR
MS
MV
MZ
PC
PL
PM
RD
SC
SEQ
START.FRo
STOP.FRQ
SW.TIME
UR
UV
Vl
3-208
start amplitude
stop amplitude
(AM) amplitude modulation
amplitude off
dB
dBm
external modulation source
(PM) frequency modulation
Hz
internal modulation source
KHz
modulation frequency
modulation output level
milliradians
(ms) milliseconds
(mV) millivolts
MHz.
%; percent
pulse modulation
('1>M) phase modulation
radians
(s) seconds
sequence
start frequency
stop frequency
sweep time
microradians
(uV) microvolts
(V) volts
