HP 8756A Operation Manual

Installation Model 8756A

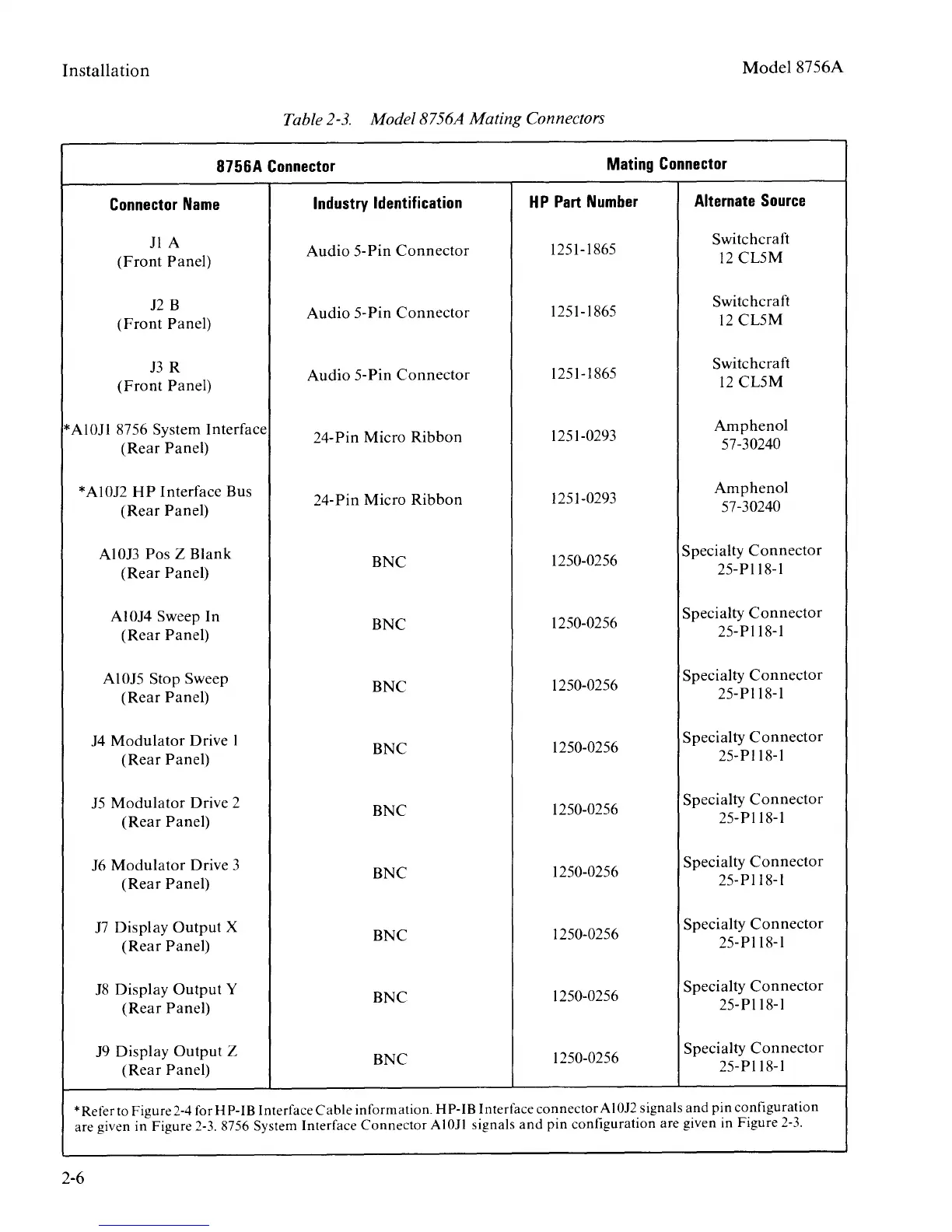

Table 2-3. Model8756A Mating Connectors
8756A Connector
Mating Connector
Connector
Name
Industry Identification
HP Part Number
Alternate Source
JlA
Audio 5-Pin Connector
1251-1865
Switch craft
(Front Panel)
12 CLSM
12 B
Audio 5- Pin Connector
1251-1865
Switch craft
(Front Panel)
12 CLSM
J3R
Audio 5- Pin Connector
1251-1865
Switchcraft
(Front Panel)
12 CL5M
* AlOJl 8756 System Interface
24-Pin Micro Ribbon
1251-0293
Am phenol
(Rear Panel)
57-30240
* Al012 HP Interface Bus
24- Pin Micro Ribbon
1251-0293
Am phenol
(Rear Panel)
57-30240
Al 013 Pos Z Blank
BNC
1250-0256
Specialty Connector
(Rear Panel)
25-Pll8-l
Al014 Sweep In
BNC
1250-0256
Specialty Connector
(Rear Panel)
25-Pll8-l
Al 015 Stop Sweep
BNC
1250-0256
Specialty Connector
(Rear Panel)
25-Pll8-l
14 Modulator Drive 1
BNC
1250-0256
Specialty Connector
(Rear Panel)
25-Pll8-l
15 Modulator Drive 2
BNC
1250-0256
Specialty Connector
(Rear Panel)
25-Pll8-l
16 Modulator Drive 3
BNC
1250-0256
Specialty Connector
(Rear Panel)
25-Pll8-l
17 Display Output X
BNC
1250-0256
Specialty Connector
(Rear Panel)
25-Pll8-l
18 Display Output Y
BNC
1250-0256
Specialty Connector
(Rear Panel)
25- Pll8-l
19 Display Output Z
BNC
1250-0256
Specialty Connector
(Rear Panel)
25- Pll8-l
*Refer to Figure 2-4 for HP-IB Interface Cable information. HP- IB Interface connector AI 012 signals and pin configuration
are given in Figure 2-3. 8756 System Interface Connector AIOJl signals and pin configuration are given in Figure 2-3.
