Model8756A General Information

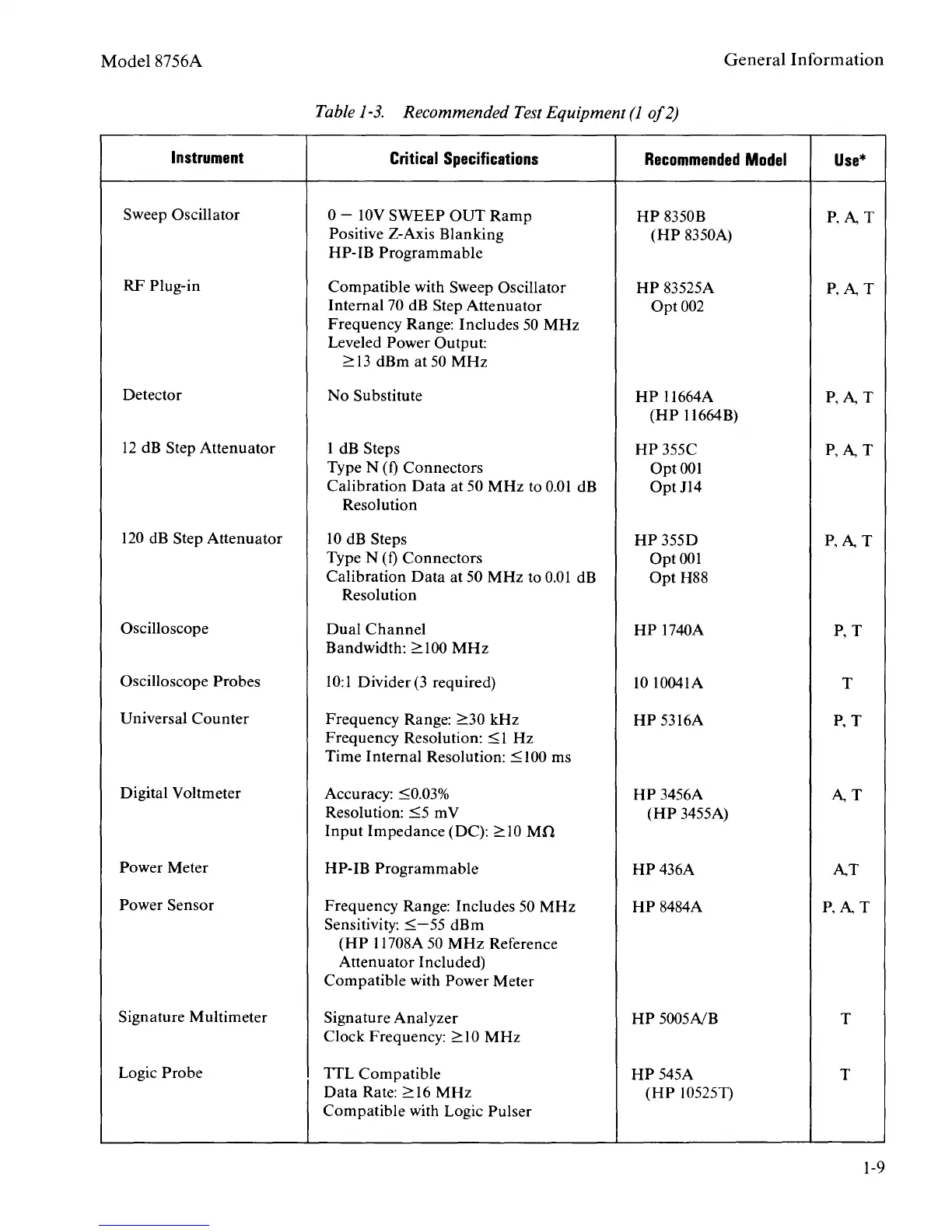

Table 1-3. Recommended Test Equipment (1 of 2)
Instrument
Critical Specifications
Recommended Model
Use*
Sweep Oscillator
0
- 10V SWEEP OUT Ramp
HP 8350B
P, A, T
Positive Z-Axis Blanking
(HP 8350A)
HP-
IB Programmable
RF Plug-in
Compatible with Sweep Oscillator
HP 83525A
P, A, T
Internal
70 dB Step Attenuator
Opt002
Frequency Range: Includes 50 MHz
Leveled Power Output:
~ 13 dBm at 50 MHz
Detector
No Substitute
HP ll664A
P,A, T
(HP 11664B)
12 dB Step Attenuator
1 dB Steps
HP 355C
P,A, T
Type N
(f) Connectors
OptOOl
Calibration Data at 50 MHz to 0.01 dB
OptJ14
Resolution
120 dB Step Attenuator
10 dB Steps
HP 355D
P,A, T
Type N
(f) Connectors
OptOOl
Calibration Data at 50 MHz to O.ot dB
Opt H88
Resolution
Oscilloscope
Dual Channel
HP 1740A
P, T
Bandwidth:
~100 MHz
Oscilloscope Probes
10:1 Divider (3 required)
10 10041A
T
Universal
Counter
Frequency Range: ~30 kHz
HP 5316A
P, T
Frequency Resolution:
~1 Hz
Time Internal Resolution: ~100 ms
Digital Voltmeter
Accuracy:
~0.03%
HP 3456A
A,T
Resolution: ~5 m V
(HP 3455A)
Input Impedance (DC): ~10 M.O
Power Meter
HP- IB Programmable
HP436A A,T
Power Sensor
Frequency Range: Includes
50 MHz
HP 8484A P, A, T
Sensitivity:
~-55 dBm
(HP ll708A 50 MHz Reference
Attenuator Included)
Compatible with
Power Meter
Signature Multimeter
Signature Analyzer
HP 5005NB
T
Clock Frequency:
~10 MHz
Logic Probe
TTL Compatible
HP 545A
T
Data Rate: ~16 MHz
(HP l0525T)
Compatible with Logic Pulser
1-9
