HP 8756A Operation Manual

Model 8756A
E
F
G
Operating Information

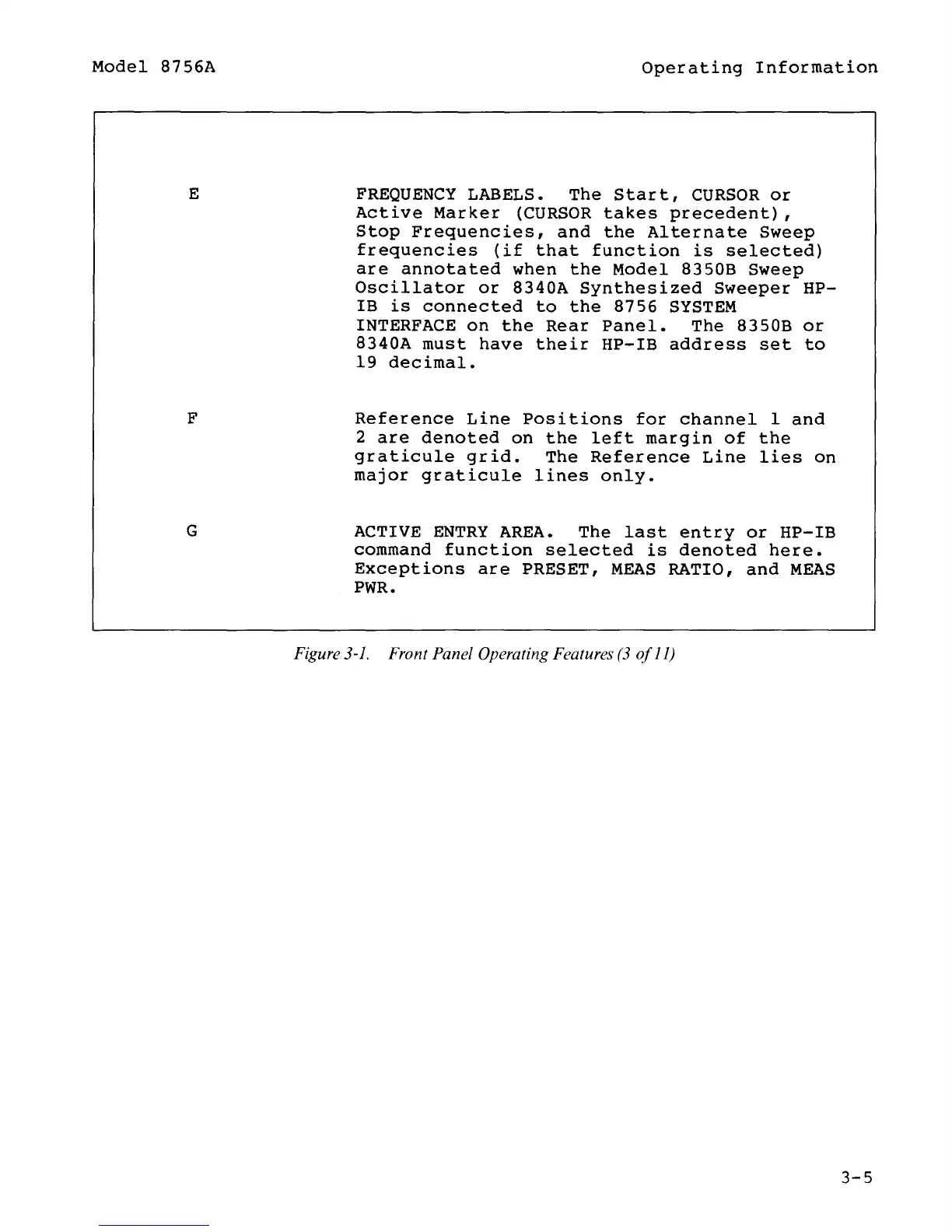

FREQUENCY LABELS. The Start, CURSOR or
Active Marker (CURSOR takes precedent) ,
Stop Frequencies, and the Alternate Sweep
frequencies (if that function is selected)
are annotated when the Model 8350B Sweep
Oscillator or 8340A Synthesized Sweeper HP-
IB is connected to the 8756 SYSTEM
INTERFACE on the Rear Panel. The 8350B or
8340A must have their HP-IB address set to
19 decimal.
Reference Line Positions for channel 1 and
2 are denoted on the left margin of the
graticule grid. The Reference Line lies on
major graticule lines only.
ACTIVE ENTRY AREA. The last entry or HP-IB
command function selected is denoted here.
Exceptions are PRESET, MEAS RATIO, and MEAS
PWR.
Figure 3-1. Front Panel Operating Features (3 of 11)
3-5
