HP 8901B - Page 222

Service Model 8901B

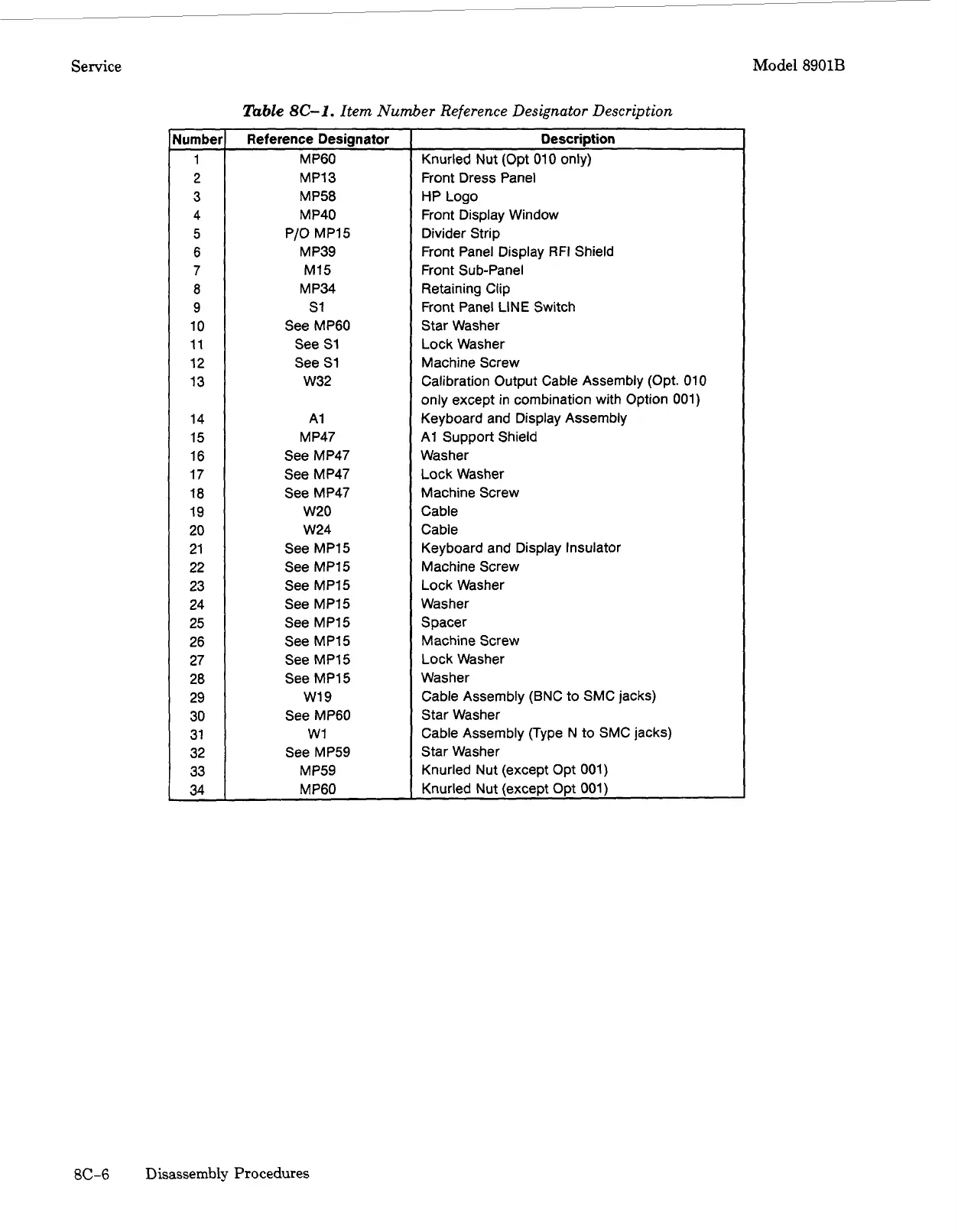

fible 8C-I. Item Number Reference Designator Description
Jumbei
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Reference Designator
MP60
MP13
MP58
MP40
P/O MP15
MP39
M15
M P34
SI
See MP60
See
S1
See S1
W32
A1
M P47
See MP47
See MP47
See MP47
w20
W24
See MP15
See MP15
See MP15
See MP15
See MP15
See MP15
See MP15
See MP15
w19
See MP60
w1
See MP59
MP59
MP60
Description
Knurled Nut (Opt 010 only)
Front Dress Panel
HP Logo
Front Display Window
Divider Strip
Front Panel Display
RFI Shield
Front Sub-Panel
Retaining Clip
Front Panel LINE Switch
Star Washer
Lock Washer
Machine Screw
Calibration Output Cable Assembly (Opt. 010
only except in combination with Option 001)
Keyboard and Display Assembly
A1 Support Shield
Washer
Lock Washer
Machine Screw
Cable
Cable
Keyboard and Display Insulator
Machine Screw
Lock Washer
Washer
Spacer
Machine Screw
Lock Washer
Washer
Cable Assembly (BNC to SMC jacks)
Star Washer
Cable Assembly (Type N to SMC jacks)
Star Washer
Knurled Nut (except Opt 001)
Knurled Nut (except Opt 001)
