Output bin base cover or output bin extender
1. Remove the mylar replacement kit (envelope).
2. Gently peel back the white scan background far enough to uncover four screws (callout 1).
NOTE: The foam backing should not tear if the white scan background is peeled back
gently.
3. Remove four screws (callout 1) and remove the output bin base cover or the output bin base
extender.
1

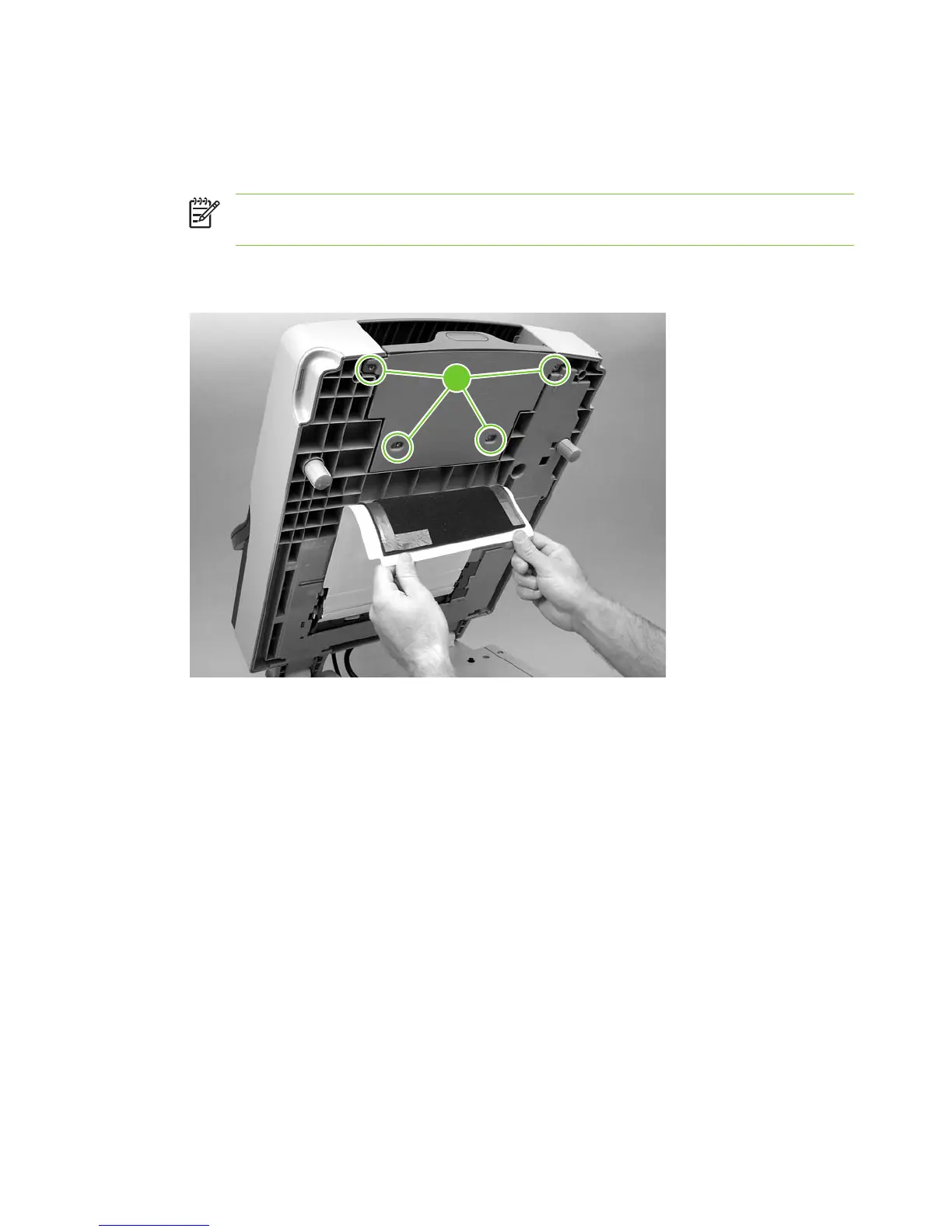

Figure 5-39 Removing the output bin base cover or output bin extender
64 Chapter 5 Removal and replacement ENWW
