HP 9250C Digital Sender - Left Hinge Cover Removal

Left hinge cover
1. Remove the scanner rear cover. See Scanner rear cover on page 76.
2. Remove two screws (callout 1).
1

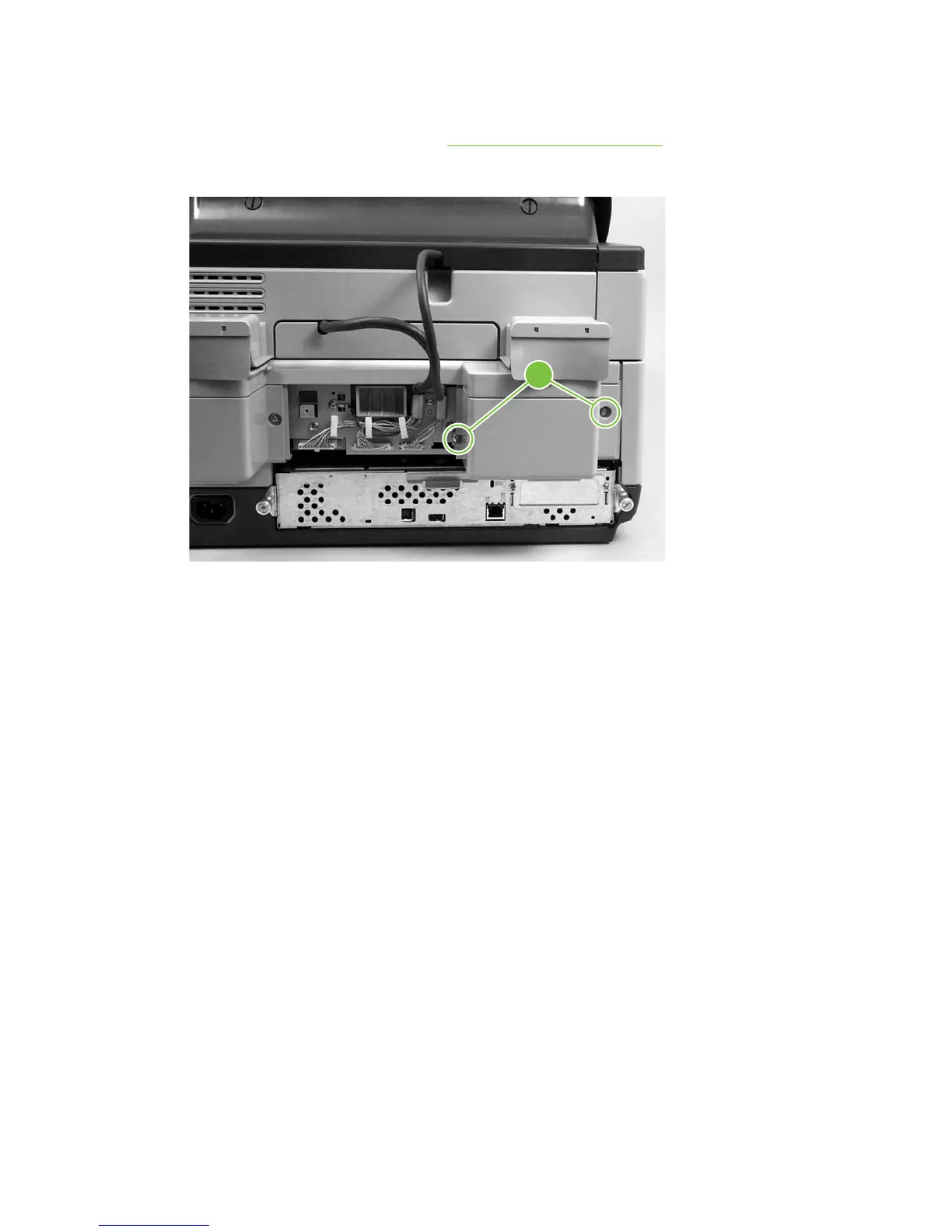

Figure 5-55 Removing the left hinge cover
3. Remove the left hinge cover.
78 Chapter 5 Removal and replacement ENWW
