4. Remove one grounding screw and wire (callout 3), and disconnect three cable connectors
(callout 4).
3
4

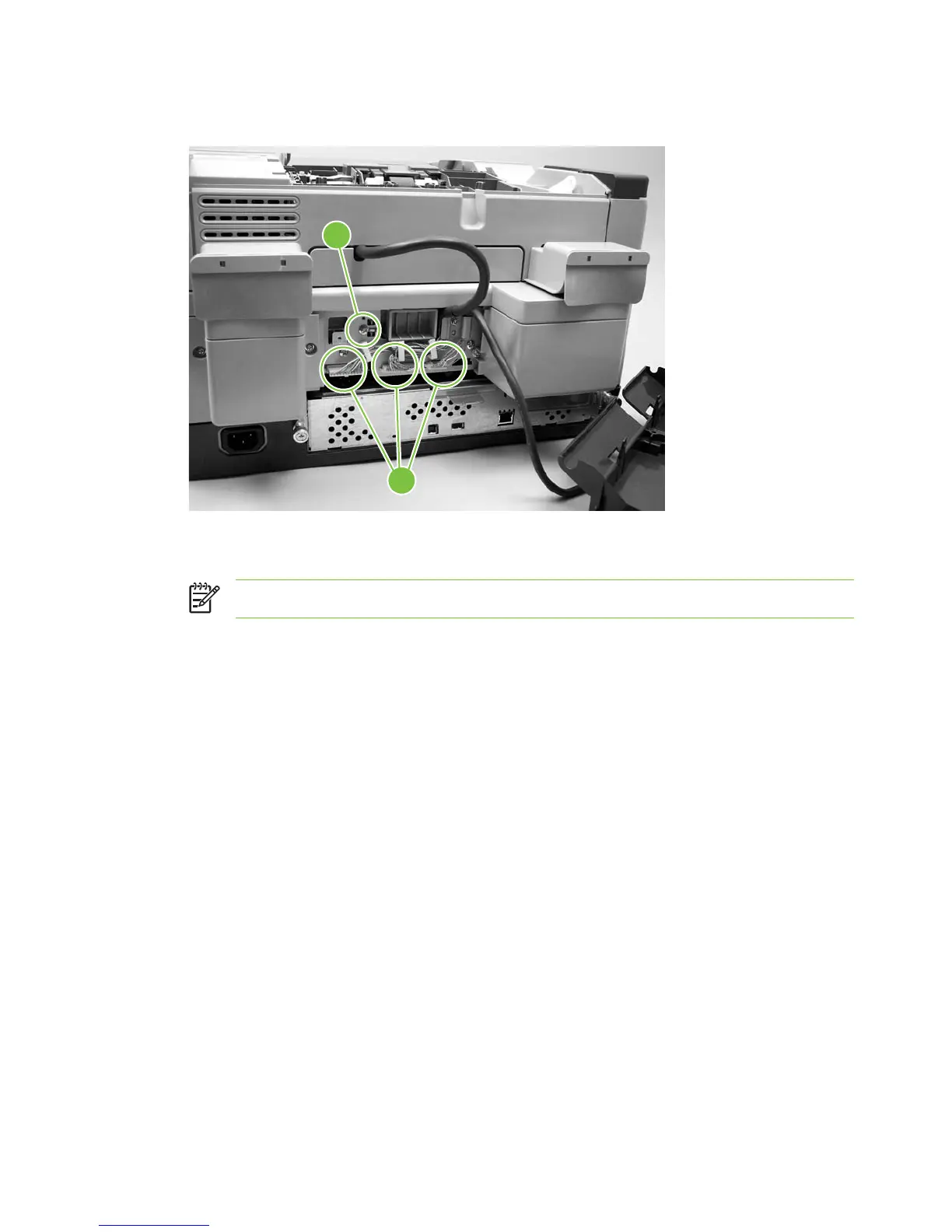

Figure 5-59 Removing the ADF assembly (3 of 3)
5. Remove the ADF assembly by lifting it up and lifting the rear hinges out of their sockets.
NOTE: Make sure you calibrate the scanner when necessary.
82 Chapter 5 Removal and replacement ENWW
