HP 9x9KS Series Installation Manual

Series 39/40/42 to 52 Field Upgrade

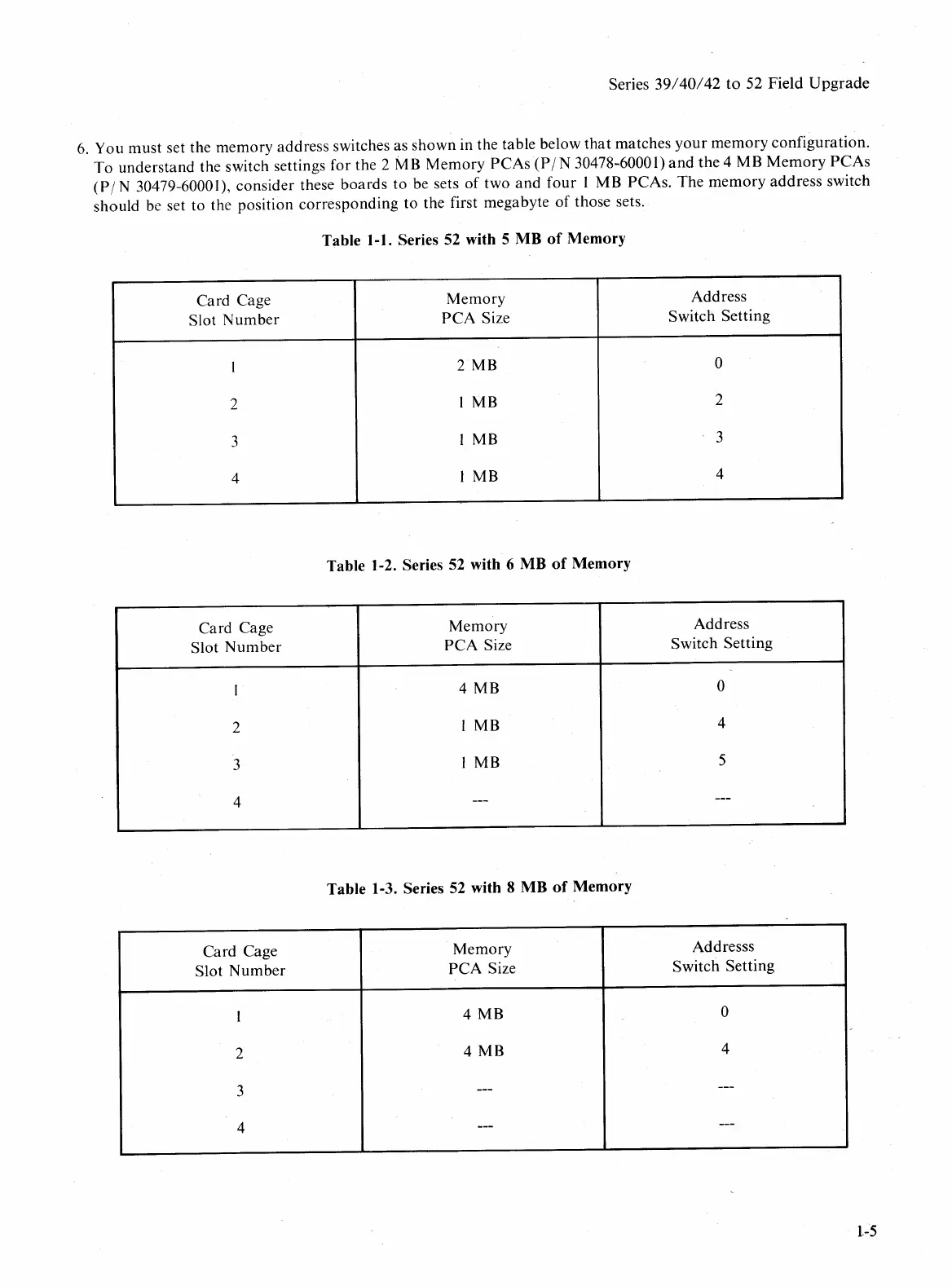

6. You must set the memory address switches as shown in the table below that matches your memory configuration.
To understand the switch settings for the 2 MB Memory PCAs(P / N 30478-60001) and the 4 MB Memory PCAs
(P / N 30479-6000 I), consider these boards to be sets of two and four 1 MB PCAs. The memory address switch
should be set to the position corresponding to the first megabyte of those sets.
Table
1.,.1. Series 52 with 5 MB of Memory
Card Cage
Memory
Address
Slot
Number
PCA Size
Switch
Setting
I
2MB
0
2
1MB 2
3 1 MB
3
4
1 MB 4
Table 1-2. Series 52 with 6 MB
of Memory
Card Cage
Memory
Address
Slot Number
PCA Size
Switch
Setting
I 4 MB
0
2
1
MB 4
3 1MB
5
4 ---
---
Table 1-3. Series 52 with 8 MB of Memory
Card Cage
Memory
Addresss
Slot
Number PCA Size Switch Setting
I
4 MB
0
2 4 MB 4
3
--- ---
4 --- ---
1-5
