Series 44/48 to 58 Memory Upgrade

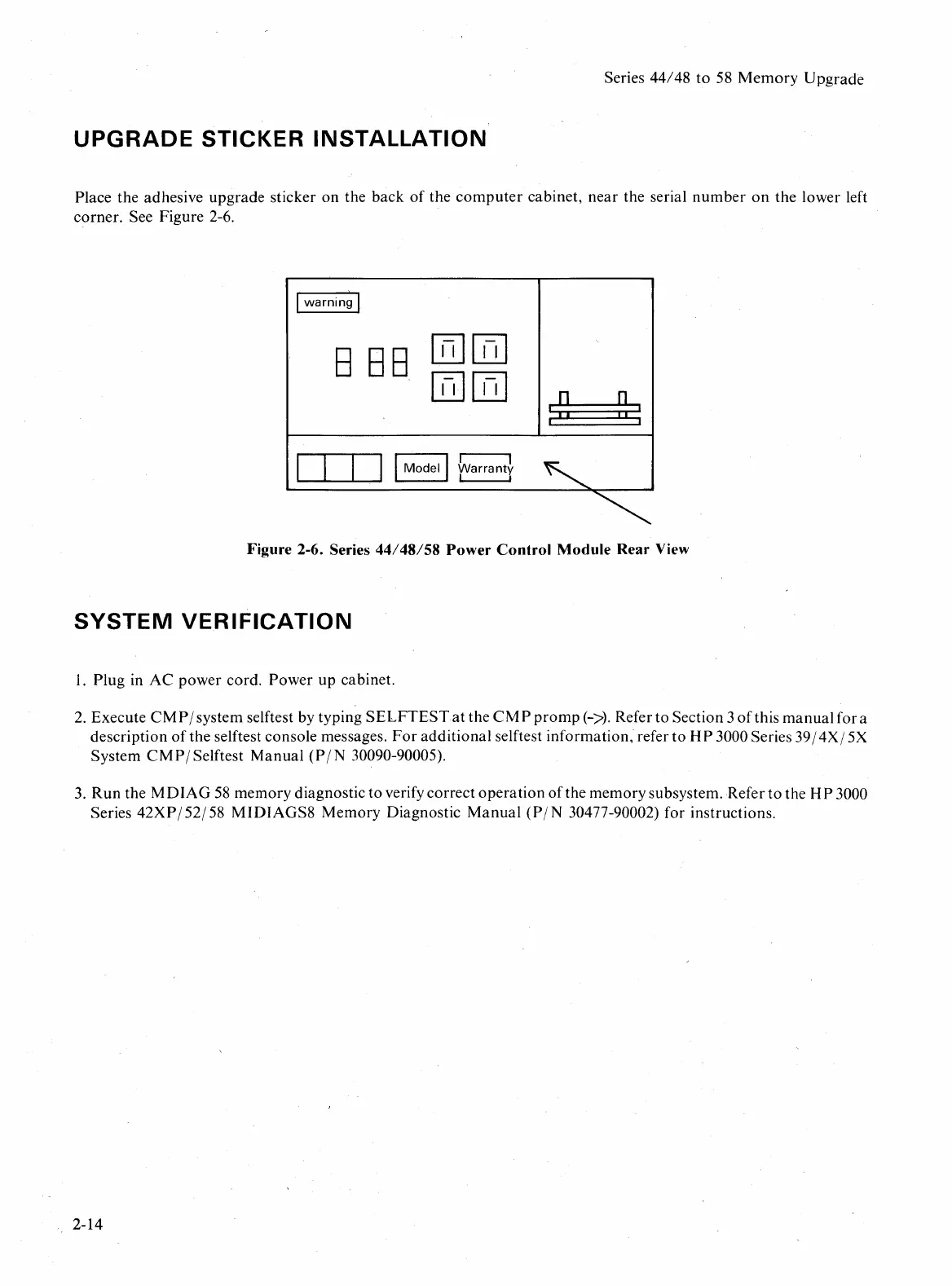

UPGRADE STICKER INSTALLATION
Place the adhesive upgrade sticker on the back of the computer cabinet, near the serial number on the lower left
corner. See Figure 2-6.
I warning I
B BB
[IT] [IT]
[IT][]]
:8
8
:
ITIJ IModel I
I I
Warranty
,
I ,
~
Figure 2-6. Series 44/48/58 Power Control Module Rear View
SYSTEM VERIFICATION
I. Plug in AC power cord. Power up cabinet.
2. Execute CMP/system selftest by typing SELFTESTat the CMP promp (-». Refer to Section 30fthis manual fora
description of the selftest console messages. For additional selftest information, refer to HP 3000 Series 39 I 4X/ 5X
System
CMP/Selftest Manual (PIN 30090-90005).
3. Run the MDIAG 58 memory diagnostic to verify correct operation of the memory subsystem. Refer to the HP 3000
Series
42XP 152/58 MIDIAGS8 Memory Diagnostic Manual (P / N 30477-90002) for instructions.
2-14
