HP 9x9KS Series Installation Manual

Series 44/48 to 58 Memory Upgrade

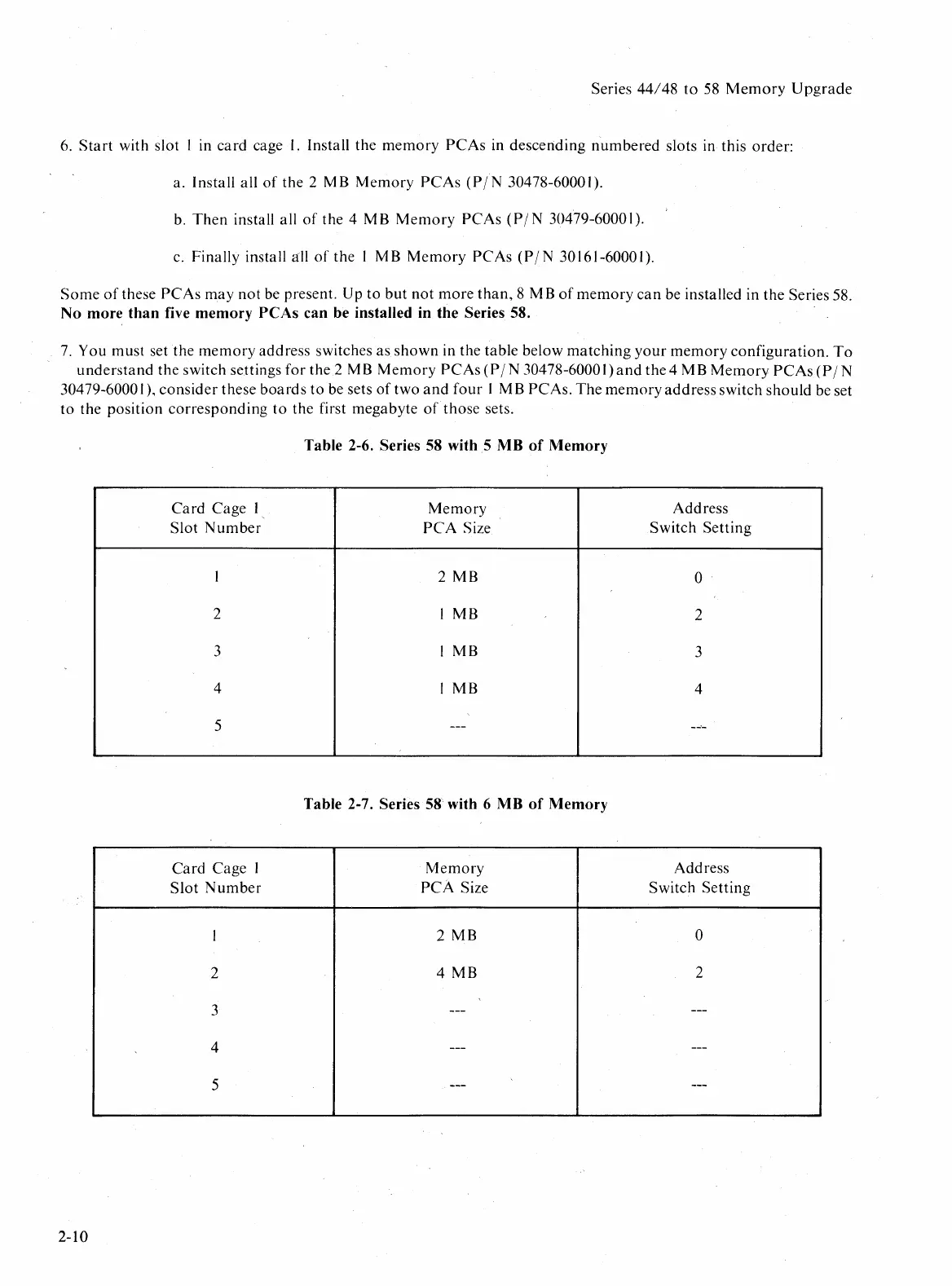

6. Start with slot I in card cage I. Install the memory PCAs in descending numbered slots in this order:
a. Install all of the 2 MB Memory PCAs (PIN 30478-60001).
b. Then install all of the 4 MB Memory PCAs (PIN 30479-6000I).
c. Finally install all
of the I MB Memory PC As (PIN 30161-60001).
Some of these PC As may not be present. Up to but not more than, 8 MB of memory can be installed in the Series 58.
No more than five memory peAs can be installed in the Series 58.
7. You must set the memory address switches as shown in the table below matching your memory configuration. To
understand the switch settings for the 2 MB Memory PCAs (PIN 30478-60001) and the4 MB Memory PCAs(PI N
30479-6000I),
consider these boards to be sets of two and four 1MB PCAs. The memory address switch should be set
to the position corresponding to the first megabyte of those sets.
Table 2-6. Series 58 with 5 MB of Memory
Card Cage I Memory
Address
Slot Number
PCA Size
Switch Setting
I
2 MB
0
2
1MB
2
3
1MB
3
4 1MB
4
5
---
---
Table 2-7. Series 58 with 6 MB of Memory
Card Cage I
Memory Address
Slot Number PCA Size Switch Setting
I
2 MB
0
2
4 MB
2
I
3
---
---
4
---
---
5
--- ---
2-10
