HP AF616A User Manual

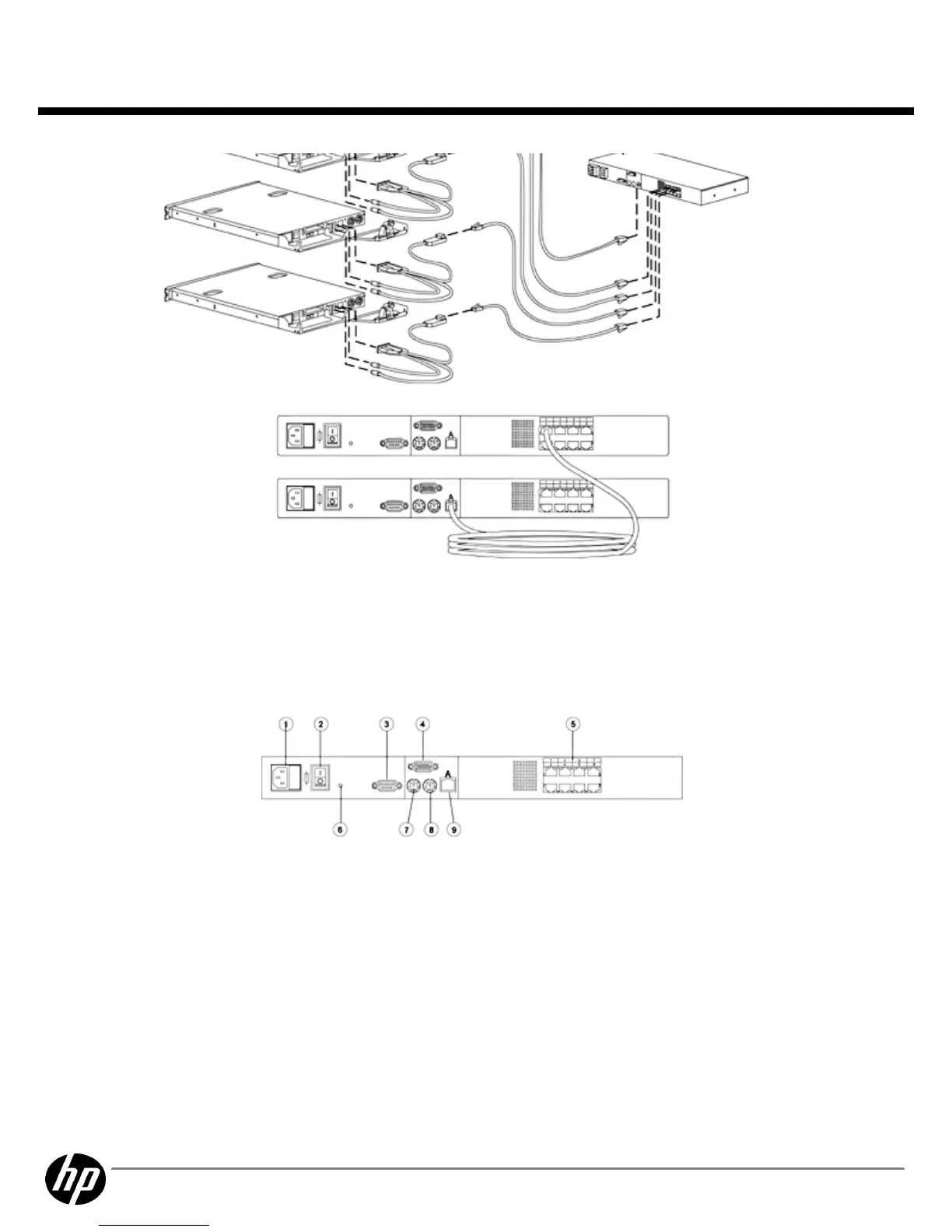

1. Server 5. UTP CAT5 cable
2. Main HP KVM Server Console Switch 6. KVM cable
3. PS/2 Interface Adapter or USB Interface Adapter* 7. Local port
4. UTP CAT5 cable 8. Cascaded HP KVM Server Console Switch
* USB IA not shown
Components
ComponentsComponents
Components
1. Power connector 6. Activity indicator light
2. Power switch 7. Keyboard connector
3. Serial download connector 8. Mouse connector
4. Monitor connector 9. RJ-45 Interface port (designated by the letter A)
5. Server connection ports
QuickSpecs
HP Server Console Switches
HP Server Console SwitchesHP Server Console Switches
HP Server Console Switches
HP Server Support
DA - 11834 Canada — Version 21 — June 20, 2011 Page 5

HP AF616A Specifications

General

Brand	HP
Model	AF616A
Category	Switch
Language	English
