00019-2

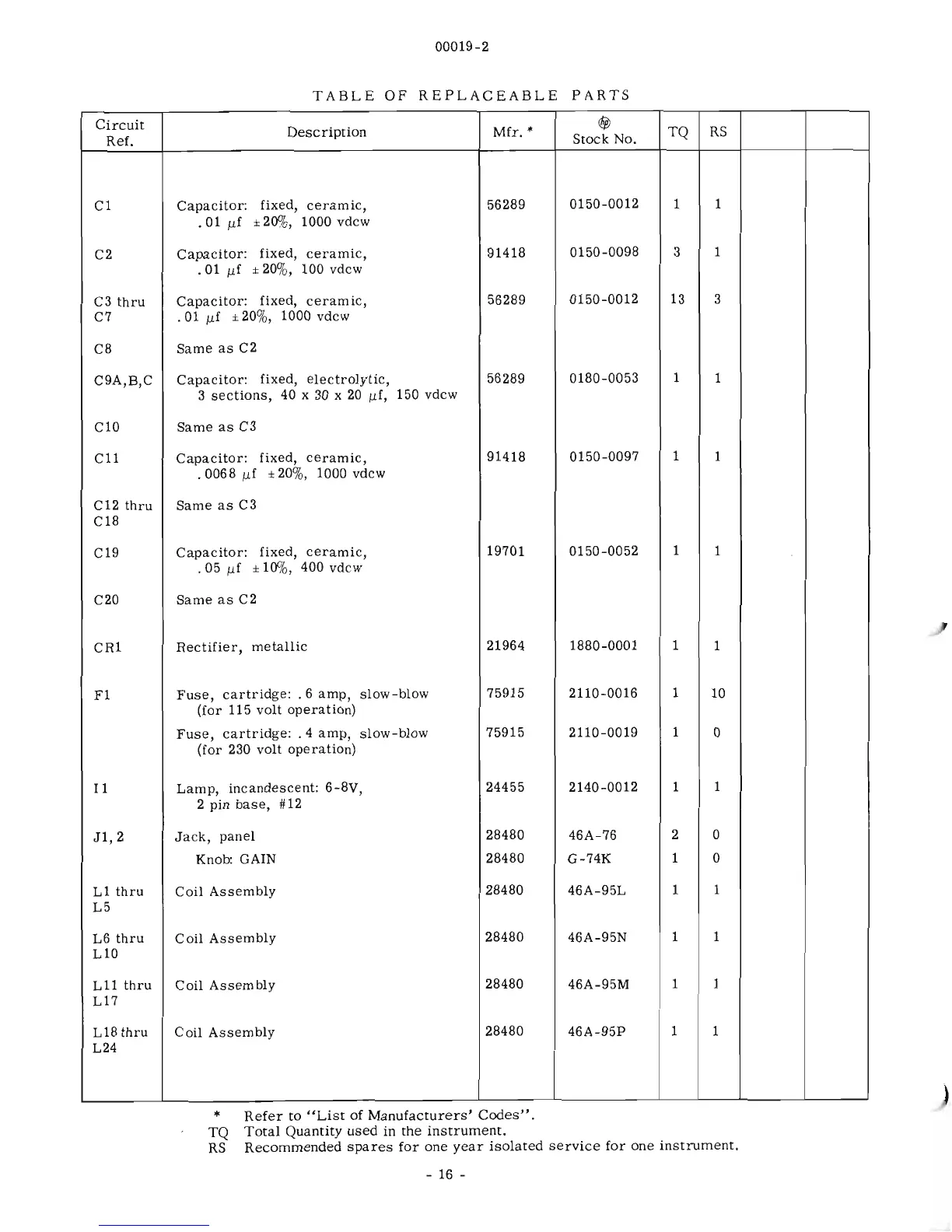

TABLE OF REPLACEABLE PARTS
Circuit
Description
Mfr. •
~
TQ RS
Ref.
Stock No.
C1
Capacitor:
fixed, ceramic,
56289
0150-0012 1 1
. 01
Ilf
± 20%, 1000 vdcw
C2
Capacitor:
fixed, ceramic,
91418
0150-0098 3 1
.01 Ilf ± 20%, 100 vdcw
C3
thru
Capacitor:
fixed, ceram ic,
56289
0150-0012
13 3
C7
.01 Ilf
± 20%, 1000 vdcw
C8
Same as C2
C9A,B,C
Capacitor:
fixed, electrolytic,
56289 0180-0053
1 1
3
sections, 40 x 30 x 20 Ilf, 150 vdcw
C10
Same as C3
C11
Capacitor:
fixed, ceramic,
91418
0150-0097
1 1
.0068 Ilf ± 20%, 1000 vdcw
C12 thru
Same as C3
C18
C19
Capacitor:
fixed, ceramic,
19701
0150-0052
1 1
.05 Ilf ± 10%, 400 vdcw
C20
Same as C2
CR1
Rectifier, metallic
21964
1880-0001 1 1
F1
Fuse, cartridge: .6 amp, slow-blow
75915
2110-0016 1 10
(for 115 volt operation)
Fuse, cartridge: .4 amp, slow-blow
75915
2110-0019 1 0
(for 230 volt operation)
11
Lamp, incandescent: 6-8V,
24455
2140-0012
1
1
2 pin
base, #12
J1,2
Jack, panel
28480 46A-76 2 0
Knob: GAIN
28480 G-74K 1 0
L1
thru
Coil Assembly
28480 46A-95L
1 1
L5
L6 thru
Coil Assembly
28480
46A-95N 1 1
L10
L11 thru
Coil Assembly
28480 46A-95M 1 1
L17
L18 thru Coil Assembly
28480
46A-95P
1
1
L24
•
Refer to "List of Manufacturers' Codes".
TQ Total Quantity used in the instrument.
RS Recommended spares for one year isolated service for one instrument.
- 16 -
