Section I

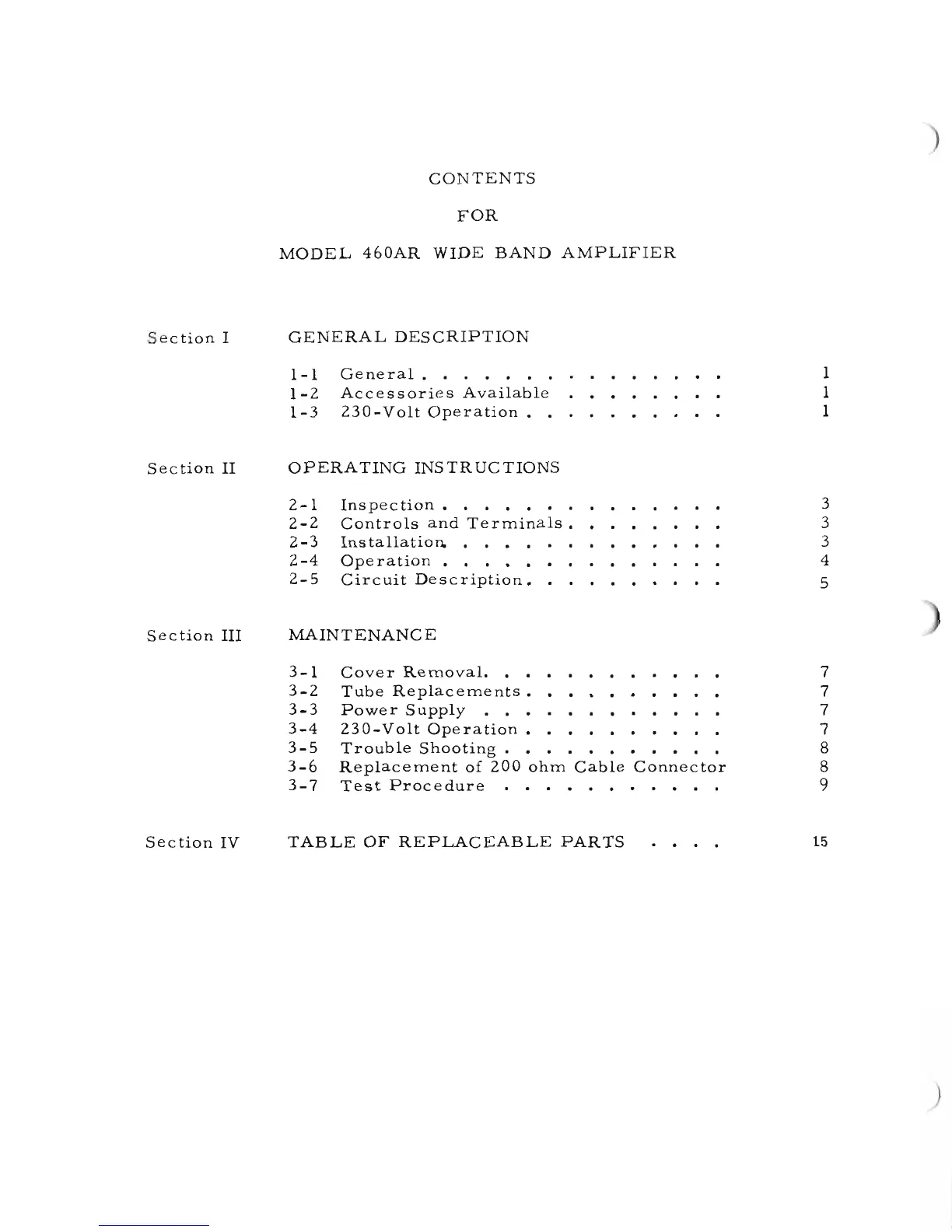

CO TENTS
FOR
MODEL 460AR WIDE BAND AMPLIFIER
GENERAL DESCRIPTION
1-1
1-2
1-3
General. • . • • • •
Accessories Available
230-Volt Operation .•
1
1
1
Section II OPERATING INSTRUCTIONS
2-1
2-2
2-3
2-4
2-5
Inspection. . • • • • •
Controls and Terminals. . • • •
Ins tallation. . • • . • • • •
Operation • • • • • • • • •
Circuit Description. •
3
3
3
4
5
Section III MAINTENANCE
3-1 Cover Removal.
3 -2 Tube Replacements. •
3-3 Power Supply • • • •
3-4 230-Volt Operation ••••••
3-5 Trouble Shooting. • .
3
-6 Replacement of 200 ohm Cable Connector
3-7 Test Procedure •••••••••••
7
7
7
7
8
8
9
Section IV
TABLE OF REPLACEABLE PARTS
. . . .
15
)
