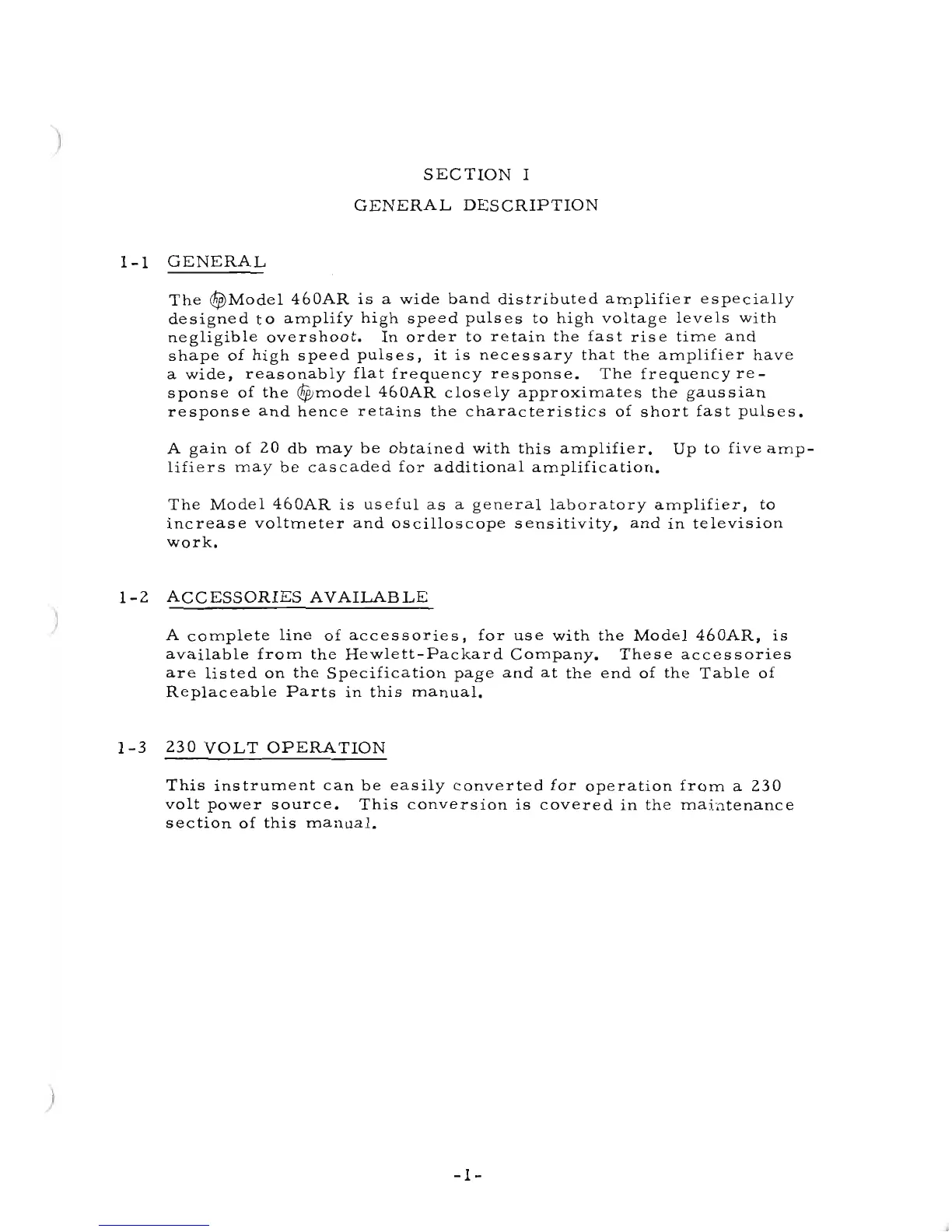

SECTION
I
GENERAL
DESCRIPTION
1-1
GENERAL
The
<$lModel
460AR
is
a
wide
band
distributed
amplifier
especially
designed
to
amplify
high
speed
pulses
to
high
voltage
levels
with
negligible
overshoot.
In
order
to
retain
the
fast
rise
time
and
shape
of
high
speed
pulses,
it
is
necessary
that
the
amplifier
have
a
wide,
reasonably
flat
frequency
response.
The
frequency
re-
sponse
of
the
~model
460AR
closely
approximates
the
gaussian
response
and
hence
retains
the
characteristics
of
short
fast
pulses.
A
gain
of
20
db
may
be
obtained
with
this
amplifier.
Up
to
five
amp-
lifiers
may
be
cascaded
for
additional
amplification.
The
Model
460AR
is
useful
as
a
general
laboratory
amplifier,
to
increase
voltmeter
and
oscilloscope
sensitivity,
and
in
television
work.
)
1-2
1-3
ACCESSORIES
AVAILABLE
A
complete
line
of
accessories,
for
use
with
the
Model
460AR,
is
available
from
the
Hewlett-Packard
Company.
These
accessories
are
listed
on
the
Specification
page
and
at
the
end
of
the
Table
of
Replaceable
Parts
in
this
manual.
230
VOLT
OPERATION
This
instrument
can
be
easily
converted
for
operation
from
a
230
volt
power
source.
This
conversion
is
covered
in
the
maintenance
section
of
this
manual.
-1-
