HP AR - Specifications

)
FREQUENCY RESPONSE:
GAIN:
SINUSOIDAL OUTPUT:
PULSE OUTPUT:
INPUT IMPEDANCE:
OUTPUT IMPEDANCE:
NOISE FIGURE:
DELAY CHARACTERISTICS:
RISE TIME:
00019-2

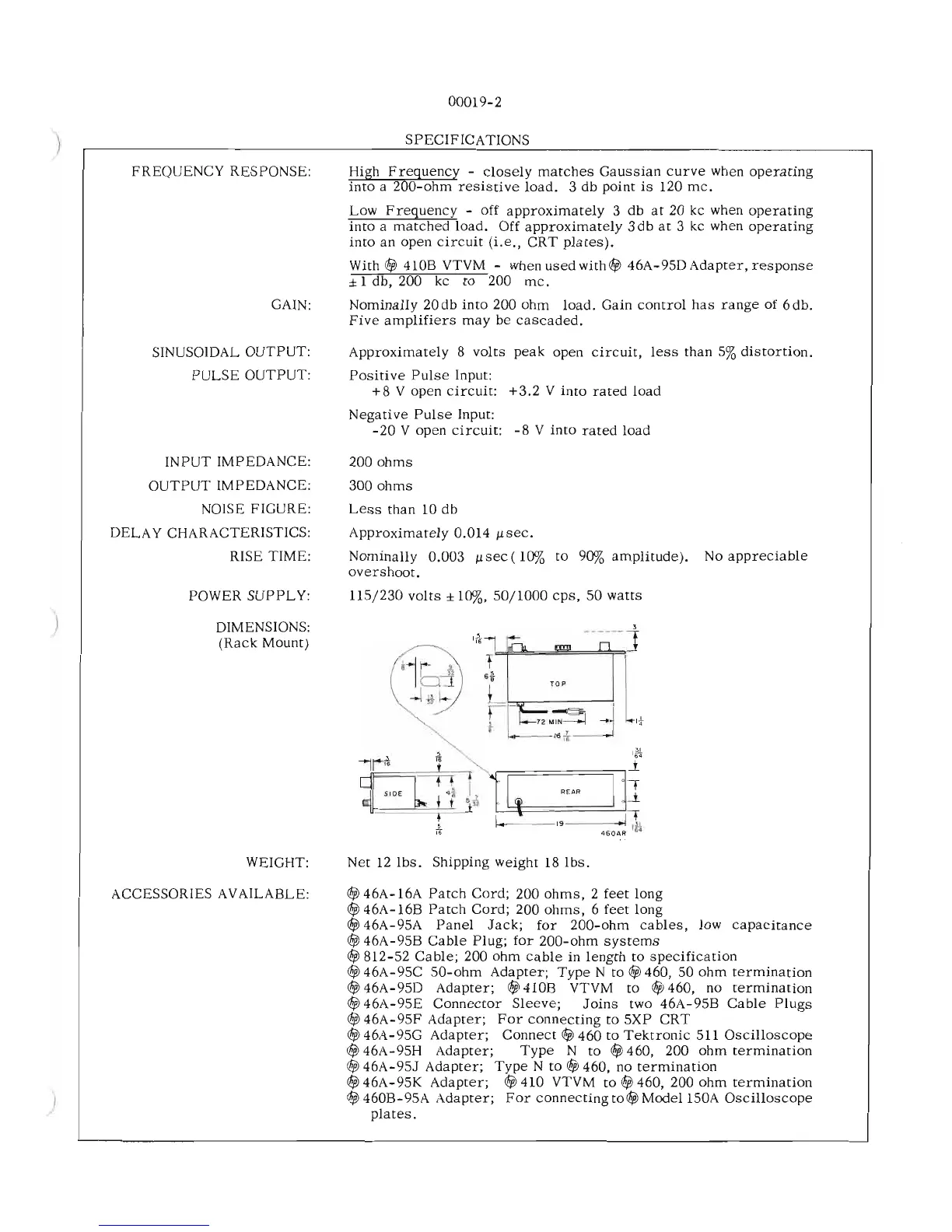

SPECIFICATIONS
High FriO!uenc
y
-
closely matches Gaussian curve when operating
into a 20 -ohm resistive load. 3 db point is 120 me.
Low Frequency - off approximately 3 db at 20 kc when operating
into a matched load. Off approximately 3db at 3 kc when operating
into an open circuit (Le., CRT plates).
With ~ 4lOB VTVM - whenusedwith~ 46A-95DAdapter, response
± 1 db, 200 kc to 200 me.
Nominally 20db into 200 ohm load. Gain control has range of 6db.
Five amplifiers may be cascaded.
Approximately 8 volts peak open circuit, less than 5% distortion.
Positive Pulse Input:
+8 V open circuit: +3.2 V into rated load
Negative Pulse Input:
-20 V open circuit: -8 V into rated load
200
ohms
300 ohms
Less than 10 db
Approximately 0.014 lisec.
Nominally 0.003 Ii sec (10% to 90% amplitude). No appreciable
overshoot.
115/230 volts ± 10%, 50/1000 cps, SO watts
)
POWER SUPPLY:
DIMENSIONS:
(Rack Mount)
lit
~
16
REAR
4---19--_
Ita
)
WEIGHT:
ACCESSORIES AVAILABLE:
Net
12 lbs. Shipping weight 18 Ibs.
~46A-16A Patch Cord; 200 ohms, 2 feet long
~ 46A-16B Patch Cord; 200 ohms, 6 feet long
~ 46A-95A Panel Jack; for 200-ohm cables, low capacitance
~ 46A-95B Cable Plug; for 200-ohm systems
~ 812-52 Cable; 200 ohm cable in length to specification
~ 46A-95C SO-ohm Adapter; Type N to ~ 460, SO ohm termination
~ 46A-95D Adapter; ~ 410B VTVM to ~ 460, no termination
~ 46A-95E Connector Sleeve; Joins two 46A-95B Cable Plugs
~ 46A-95F Adapter; For connecting to 5XP CRT
~ 46A-95G Adapter; Connect ~ 460 to Tektronic 511 Oscilloscope
~ 46A-95H Adapter; Type N to t/iiJ 460, 200 ohm termination
~ 46A-95J Adapter; Type N to ~ 460, no termination
~ 46A-95K Adapter; ~ 410 VTVM to ~ 460, 200 ohm termination
~ 460B-95A Adapter; For connecting to~ Model 150A Oscilloscope
plates.
