Top Cover Support Removal
June 1999 Removal/Replacement Procedures 7-15
Top Cover Support Removal
To remove the top cover support:
1 Open the top cover.
2 Remove the spring from the top cover support (single screw).
3 Remove the screws holding the support to the base of the printer.
Replacement Note:
Replace one support at a time so that the other remains in place to stabilize the top cover.
Spring Screw

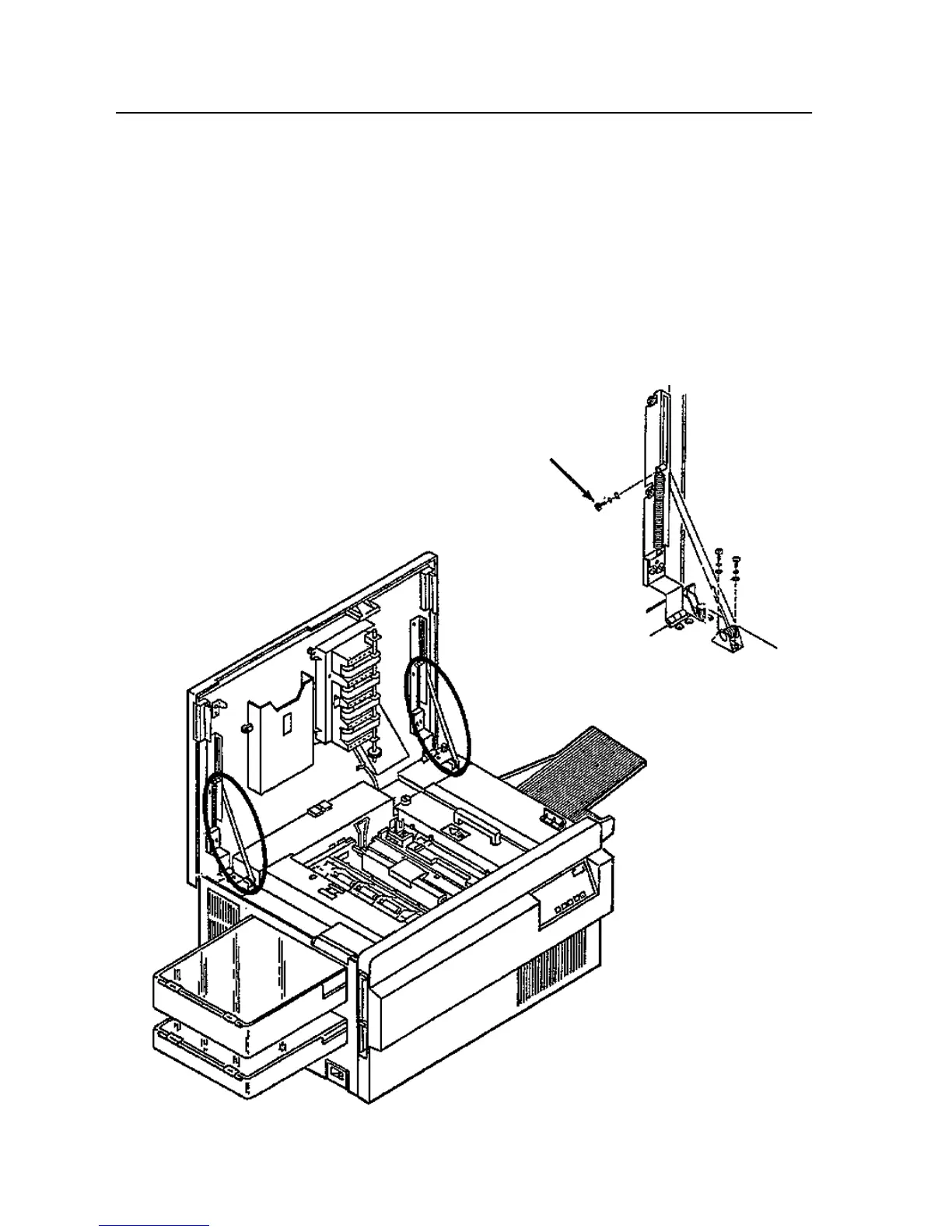

Support Detail
