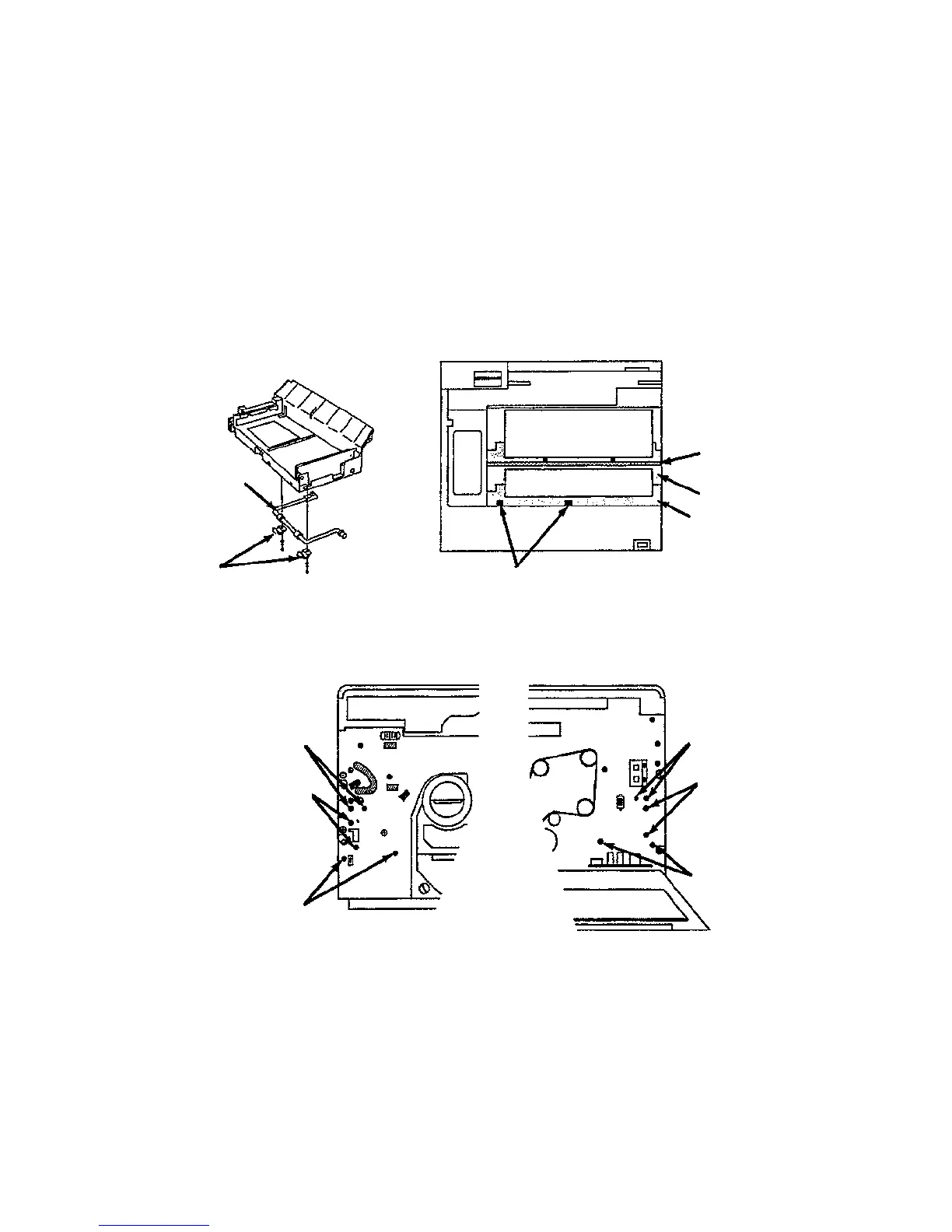

Lower Cassette Mount Removal
7-48 Removal/Replacement Procedures June 1999
13 Remove the lower bracket (four screws; two front and two back).
14 Remove the tray (four screws, two front and two back)
15 Remove the AC power supply (see page 7-29).
16 Remove the lower tray lift arm (two screws with two plastic retainers).
17 Remove the screws holding the lower cassette mount in place (two front and two
side).
18 Pull the lower cassette mount from its front and back mounting pins.
19 Rotate the lower cassette mount upwards and out of the printer.
Paper
Lift Arm
Retainers
Tray
Lower Bracket
Lower Cassette
Mount
Front Mounting Screw Detail
Tray
Lower Bracket
Lower Cassette
Mount
Mounting Screws
Left Side Detail
Cassette Mount Detail
Tray
Lower Bracket
Lower Cassette
Mount
Back Mounting Screw Detail
To Next Page
