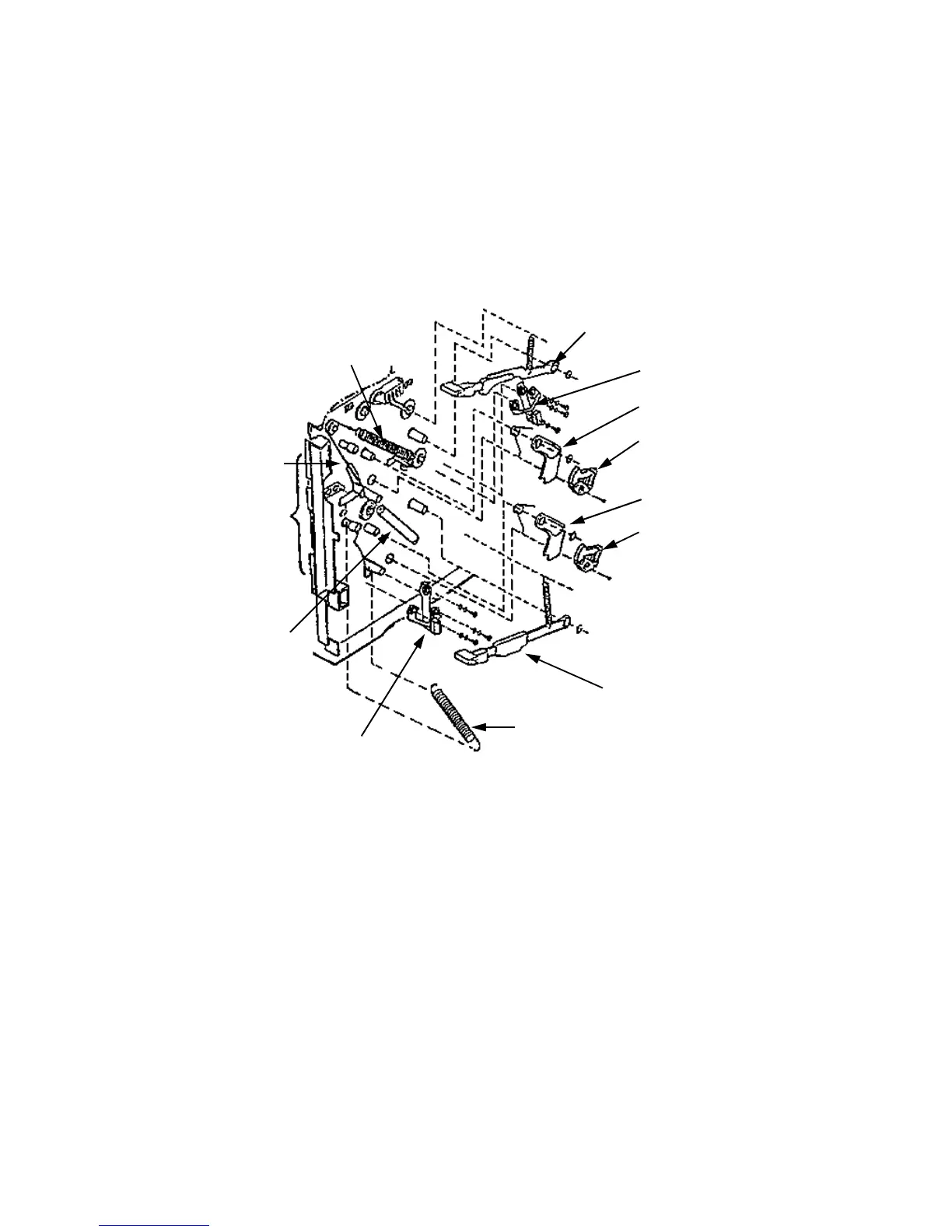

Lower Cassette Mount Removal
June 1999 Removal/Replacement Procedures 7-47
12 For the lower tray release:
• Remove the lower cassette release lever (one spring and C-clip).
• Set the lower paper tension lever to its minimum (–) position.
• Carefully release the cable tension spring from its cable (only on the most recent
versions of the printer); remove the spring and cable.
• Remove the lower latch (one spring and C-clip).
• Remove the lower cam (one screw).
Upper Cassette
Upper Latch
Upper Cam
Lower Cam
Lower Paper
Tension Lever
Cable Tension Spring
Damper
Edge
Guide
Cable
Cable Tension Spring
Lower Latch
Release Lever
Assembly
Upper Paper
Tension Lever
Lower Cassette
Release Lever
To Next Page
