Lower Cassette Mount Removal
7-46 Removal/Replacement Procedures June 1999
9 Remove the lower paper size sensor (see page 7-40).
10 Remove the cassette release cover (two screws).
11 Remove the plastic guide on the vertical edge of the printer. Depress the tabs visible
through the cassette housing. Gently turn the guide and lift it from the printer.

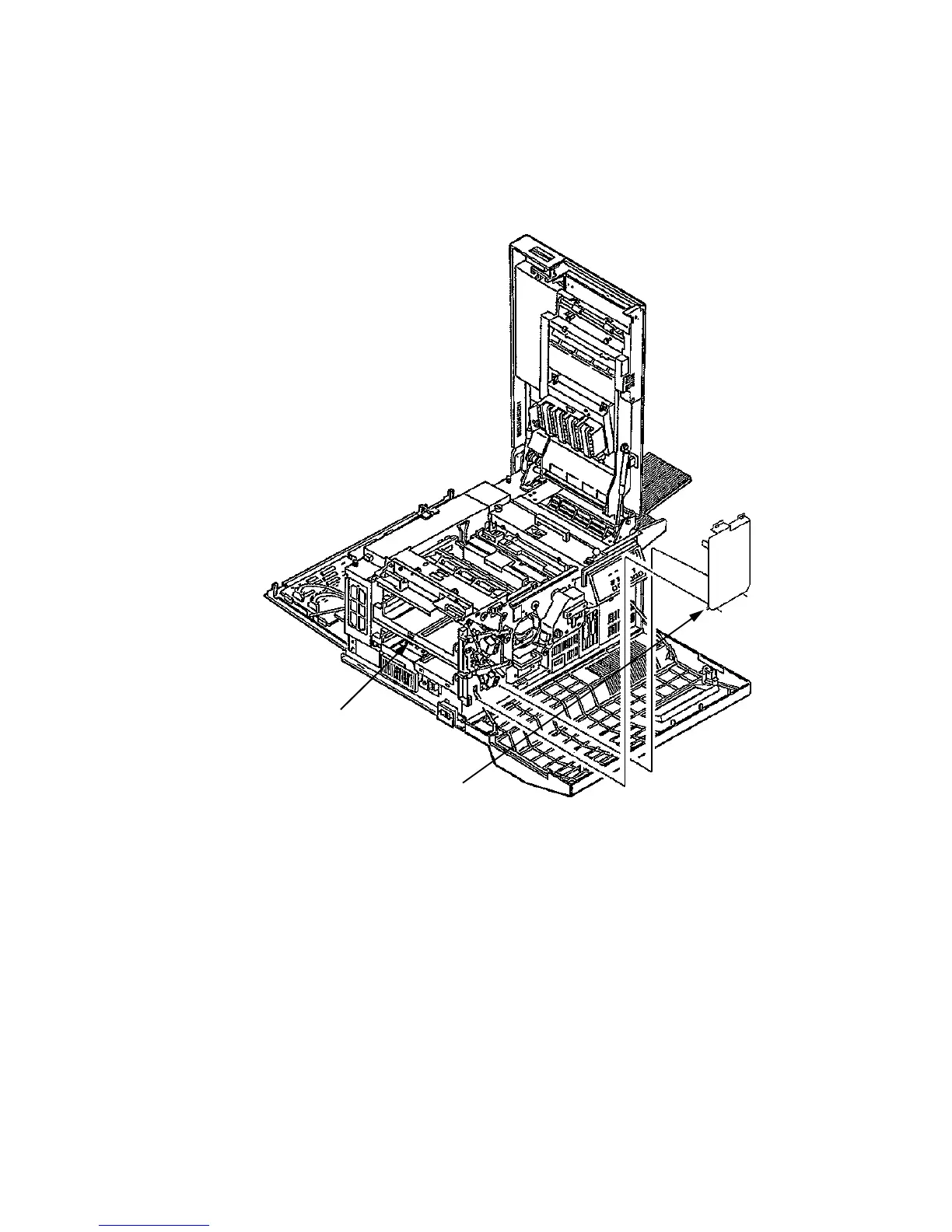

Lower Paper Size Sensor
Cassette Release Cover
To Next Page
