HP C30 - Upper Paper Guide Roller Removal

Upper Paper Guide Roller Removal
June 1999 Removal/Replacement Procedures 7-51
Upper Paper Guide Roller Removal
To remove the upper paper guide roller:
1 Open the top cover.
2 Remove the two springs at each end of the roller. To do this, press down gently on the
end of the spring and move it out from under the plastic.
3 Raise the upper paper guide.
4 Remove the roller and bearings from the underside of the upper paper guide.

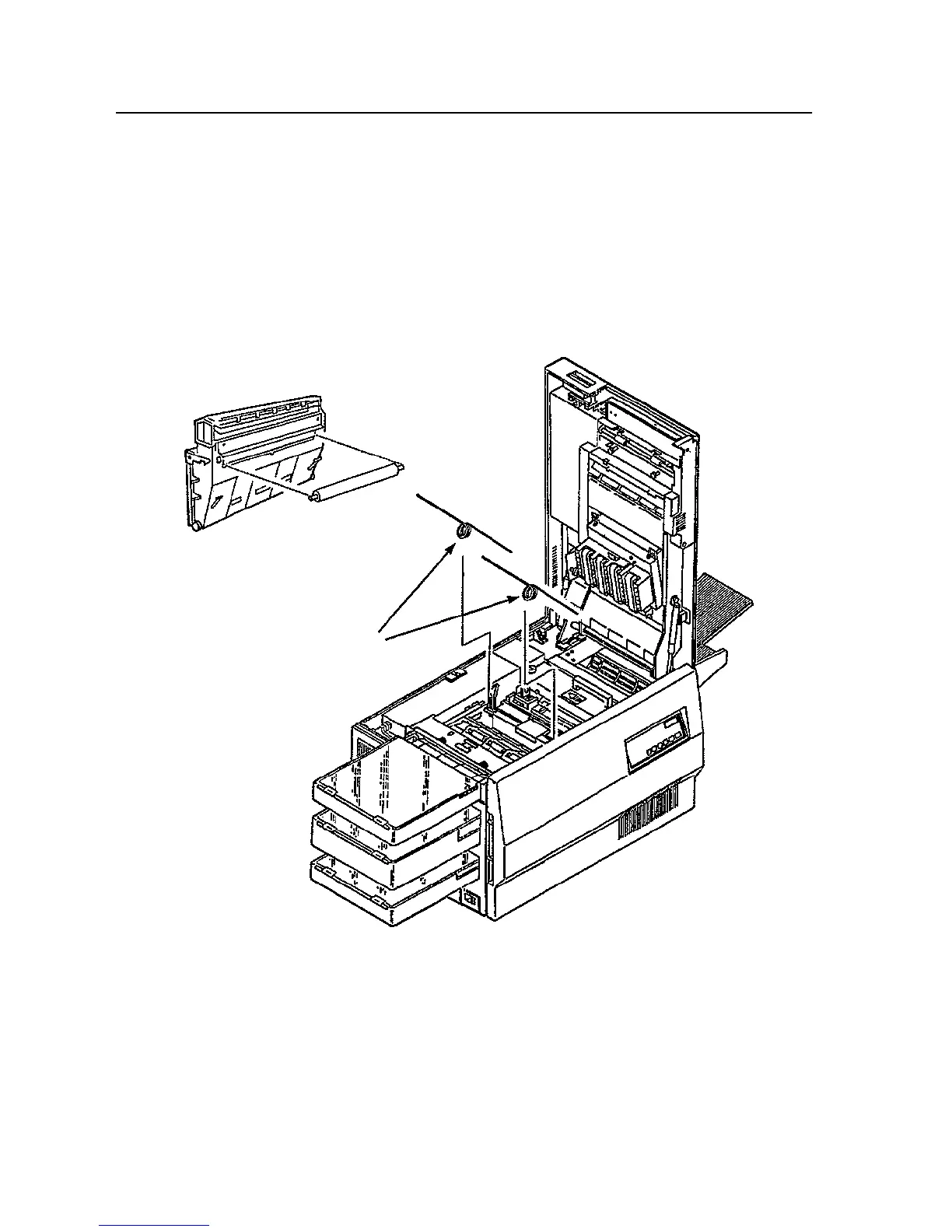

Upper Paper Guide
Underside
Springs
