Cleaner Drive Belt Removal
June 1999 Removal/Replacement Procedures 7-55
Cleaner Drive Belt Removal
To remove the cleaner drive belt:
1 Open the back cover.
2 Remove the fuser drive cover (three screws).
3 Remove the main drive cover (one screw).
4 Lift the idler arm and slide the cleaner drive belt off the gear.

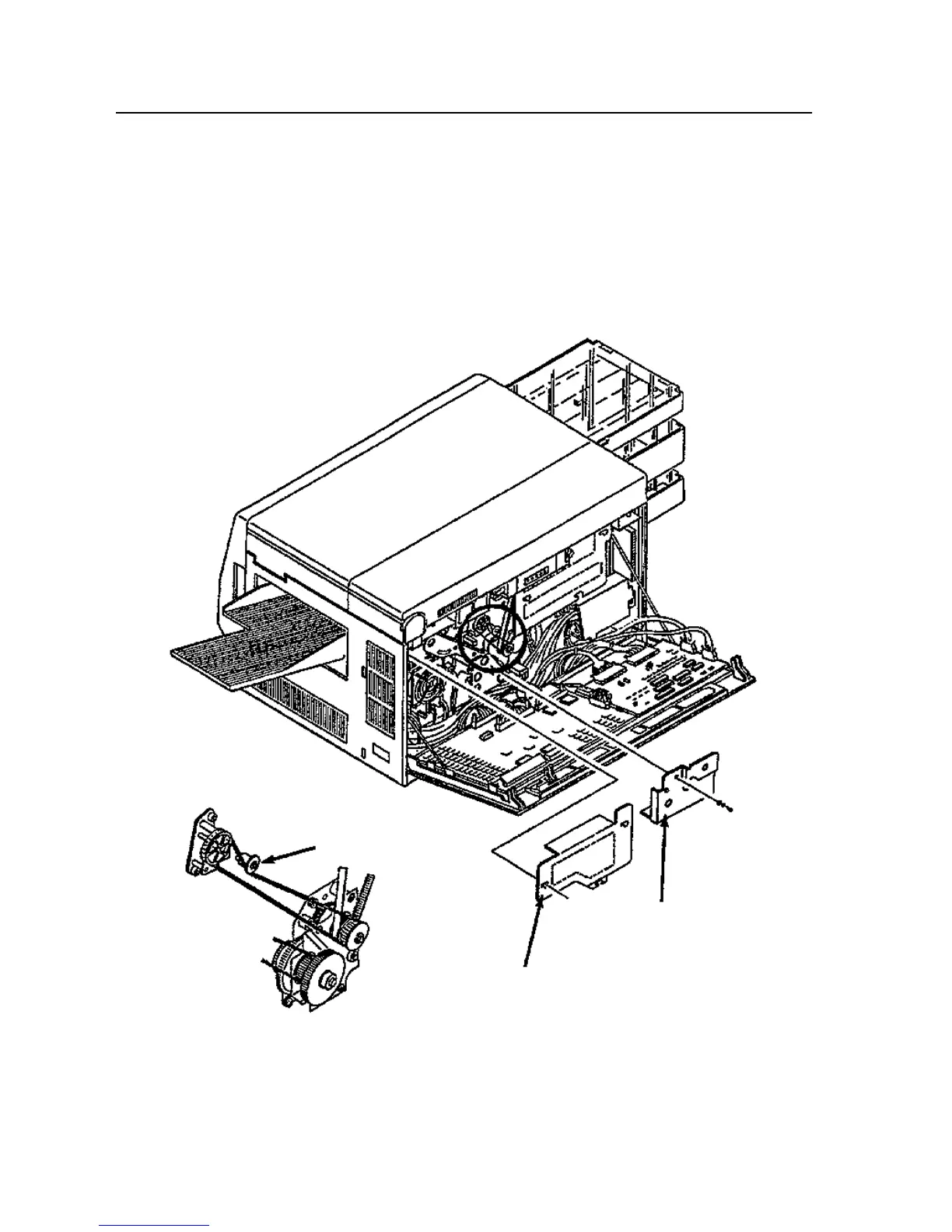

Idler Arm
Cleaner Drive Belt Detail
Fuser Drive
Main Drive
Cover
Cover
