HP C30 - Paper Timing Guide Removal

Paper Timing Guide Removal
7-54 Removal/Replacement Procedures June 1999

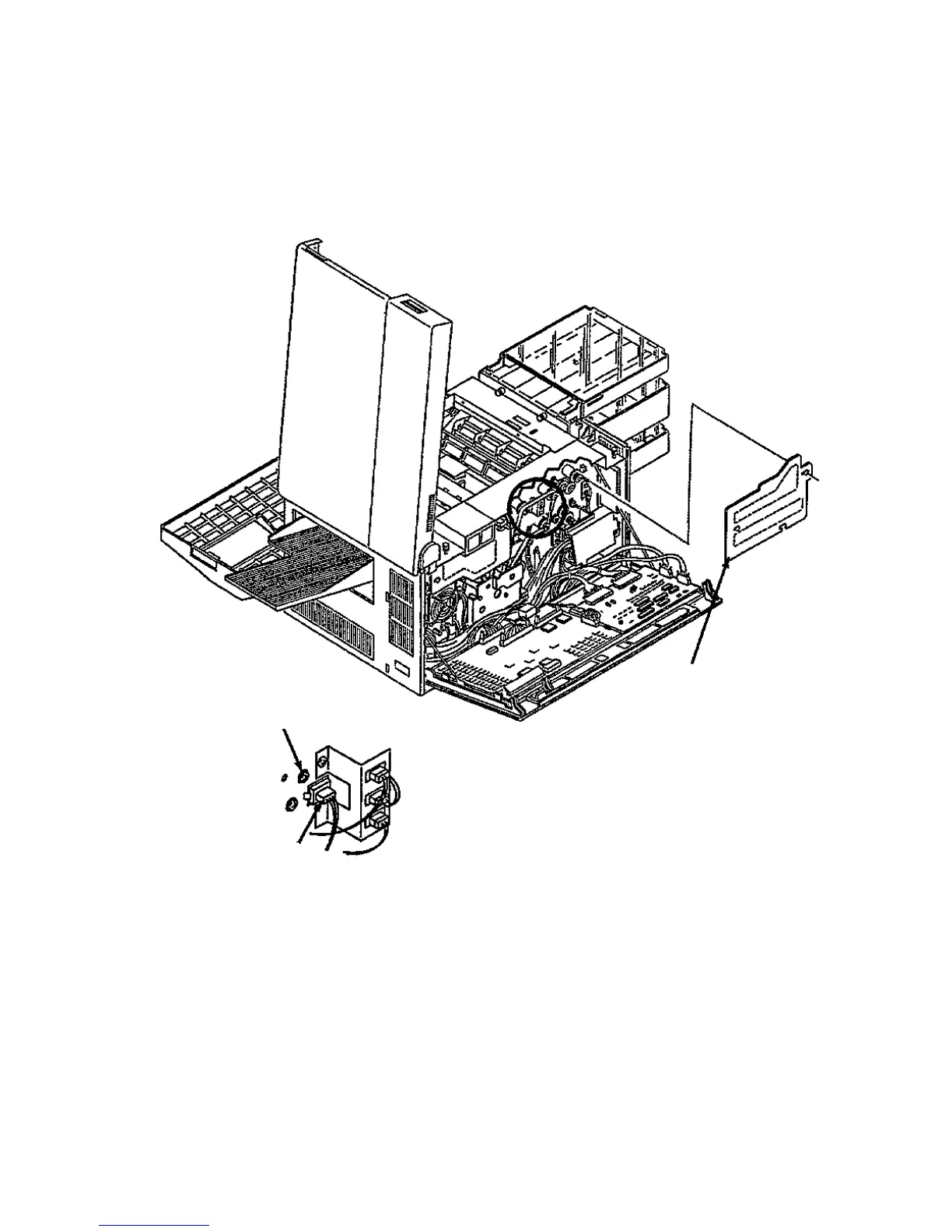

4 Remove the paper feed drive cover (three screws).
5 Remove the back screw holding the paper timing guide in place. Remove the paper
timing guide.
6 Disconnect CN58.
Mounting Screw
CN58
Back Detail
Paper Feed Drive Cover
