Paper Timing Guide Removal
June 1999 Removal/Replacement Procedures 7-53
Paper Timing Guide Removal
To remove the paper timing guide:
1 Open the front, back, and top covers.
2 Raise the upper paper guide.
3 Remove the lower paper guide (see page 7-52).

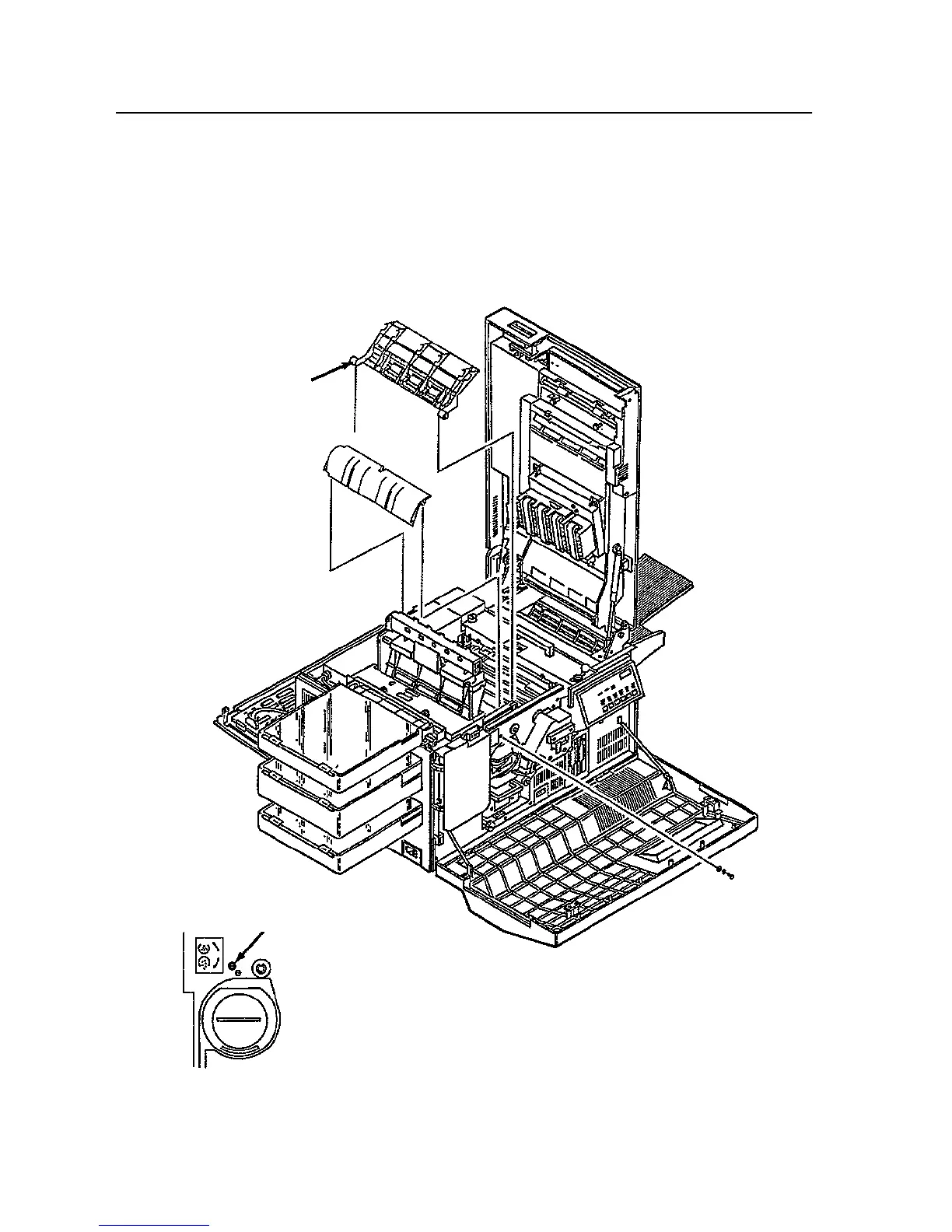

Lower Paper Guide
Paper Timing Guide
Mounting Screw
Front Detail
