Lower Feed Roller Removal
7-62 Removal/Replacement Procedures June 1999
Lower Feed Roller Removal
To remove the lower feed roller:
1 Open the front and back covers.
2 Remove the paper feed drive cover (three screws).
3 Disconnect CN67.
4 Remove the paper feed drive belt from the lower feed roller gear.
5 Remove the cassette release cover (two screws).
6 Remove the front C-clip and bearing.
7 Slide the lower feed roller out the back of the printer.

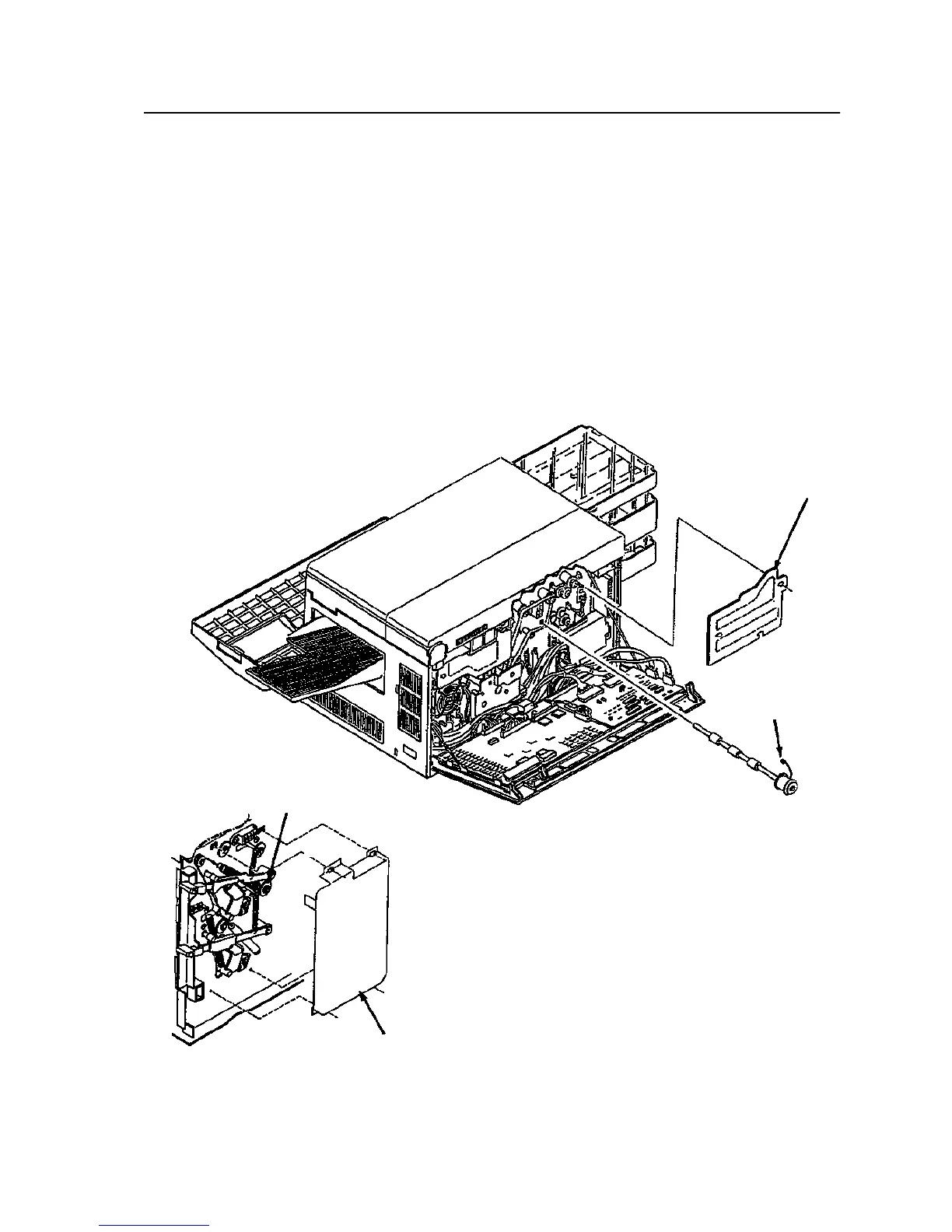

Paper Feed
Drive Cover
CN67
C-Clip and Bearing
Front Detail
Cassette Release Cover
To Next Page
