Upper Pick-Up Roller Removal
June 1999 Removal/Replacement Procedures 7-63
Upper Pick-Up Roller Removal
To remove the upper pick-up roller:
1 Open the front and back covers.
2 Remove the paper feed drive cover (three screws).
3 Disconnect CN68.
4 Remove the cassette release cover (two screws).
5 Remove the front C-clip and bearing.
6 Slide the upper pick-up roller out the back of the printer.
Note: You may need to remove the EMI grounding plate.

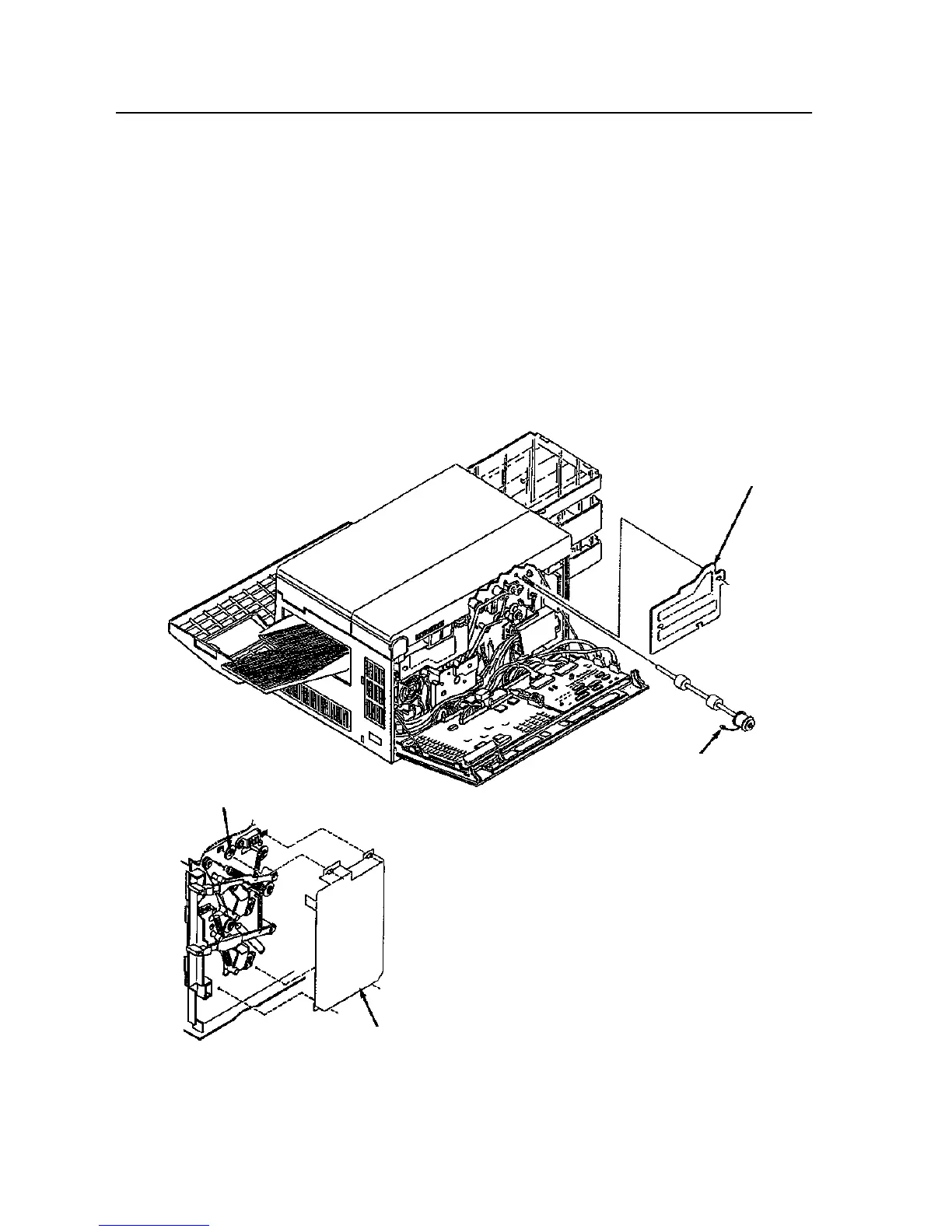

Paper Feed
Drive Cover
CN68
C-Clip and Bearing
Cassette Release Cover
Front Detail
To Next Page
