Upper Pick-Up Roller Drive Removal
7-64 Removal/Replacement Procedures June 1999
Upper Pick-Up Roller Drive Removal
To remove the upper pick-up roller drive:
1 Open the back cover.
2 Remove the paper feed drive cover (three screws).
3 Remove the upper pick-up roller drive (three screws).
Note: You may need to remove the EMI grounding plate.

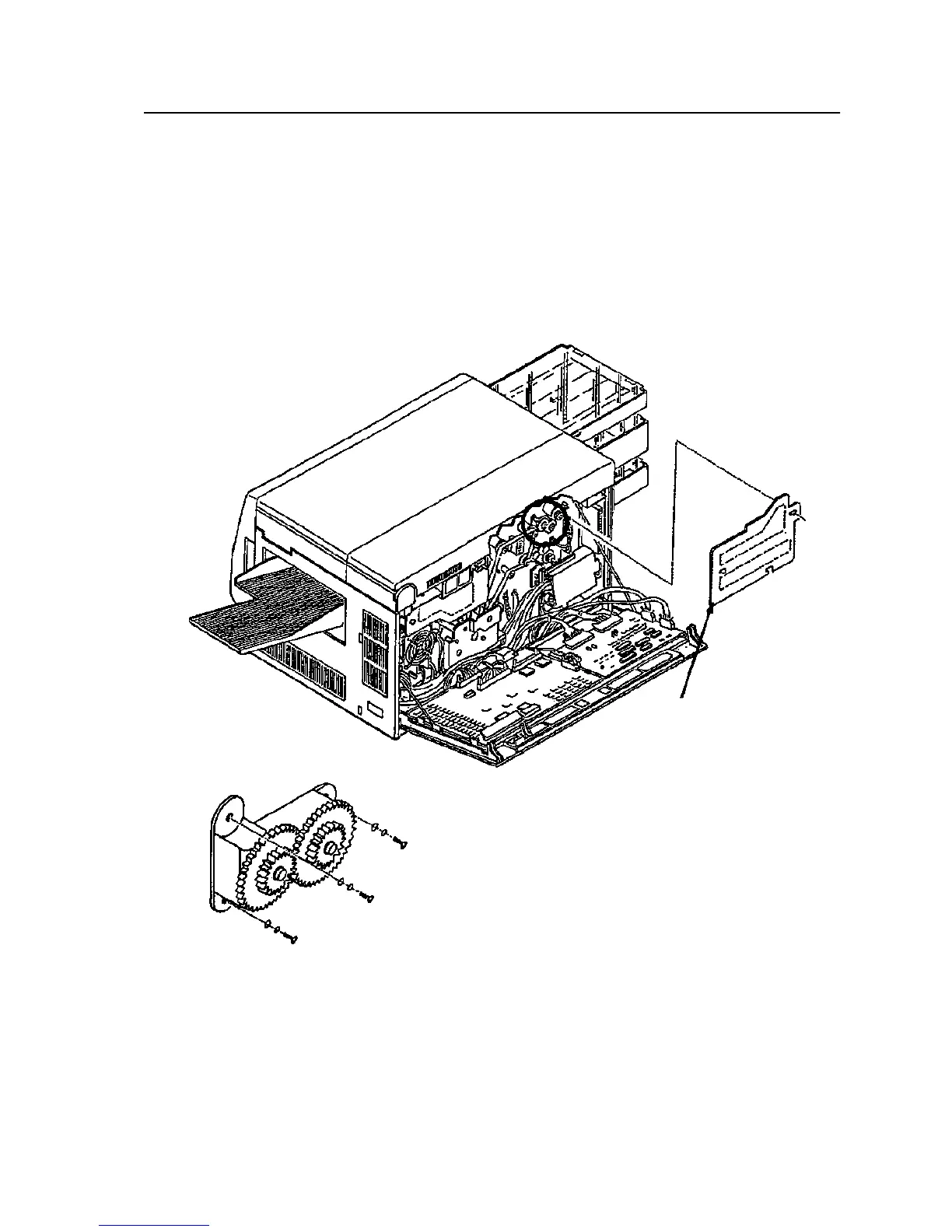

Paper Feed
Upper Pick-up Roller Drive Detail
Drive Cover
To Next Page
