Lower Pick-Up Roller Removal
June 1999 Removal/Replacement Procedures 7-65
Lower Pick-Up Roller Removal
To remove the lower pick-up roller:
1 Open the front and back covers.
2 Remove the paper feed drive cover (three screws).
3 Disconnect CN69.
4 Remove the cassette release cover (two screws).
5 Remove the front C-clip and bearing.
6 Slide the lower pick-up roller out the back of the printer.

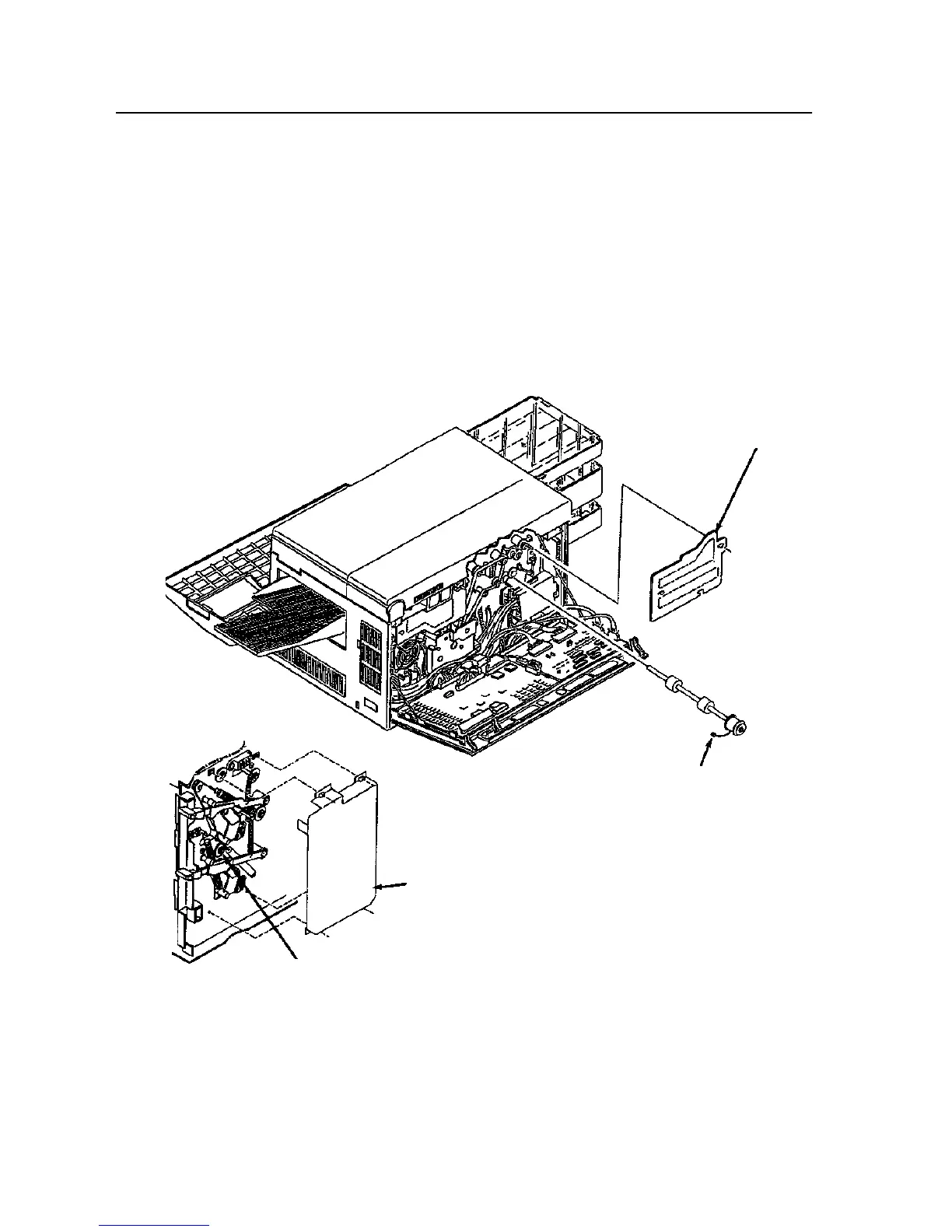

Paper Feed
Drive Cover
CN69
Cassette Release Cover
C-Clip and Bearing
Front Detail
