Lower Pick-Up Roller Drive Removal
7-66 Removal/Replacement Procedures June 1999
Lower Pick-Up Roller Drive Removal
To remove the lower pick-up roller drive:
1 Open the back cover.
2 Remove the paper feed drive cover (three screws).
3 Remove the lower pick-up roller drive (three screws).

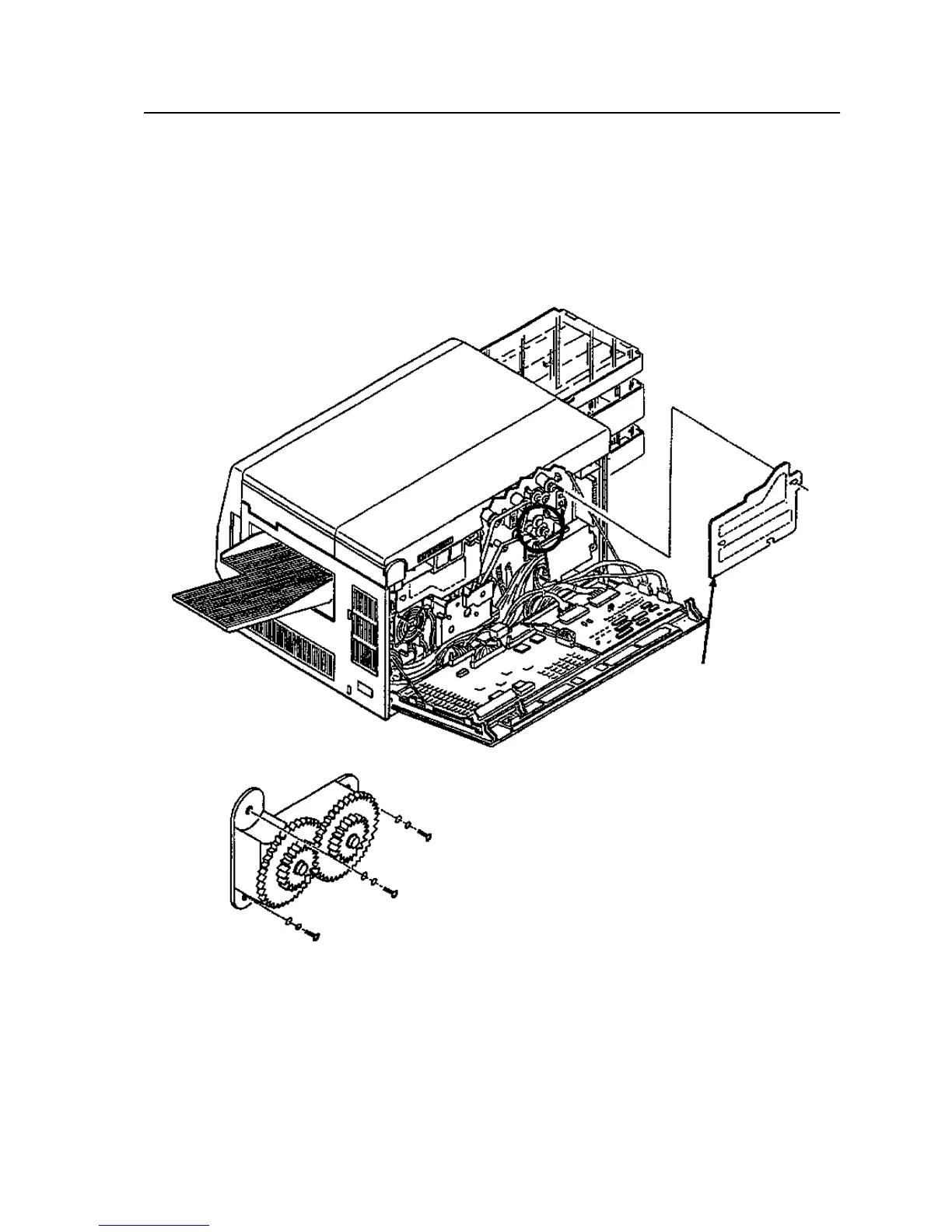

Paper Feed
Drive Cover
Lower Pick-up Roller Drive Detail
