Erase Lamp Removal
7-84 Removal/Replacement Procedures June 1999
Erase Lamp Removal
To remove the erase lamp:
1 Open the top and back covers.
2 Remove the photoconductor and place it in its protective packaging.
3 Remove the fuser drive cover (three screws).
4 Disconnect CN26.
5 Remove the screw holding the erase lamp in place.
6 Disengage the front of the erase lamp from its guide pin.
7 Slide the unit out from the back of the printer.

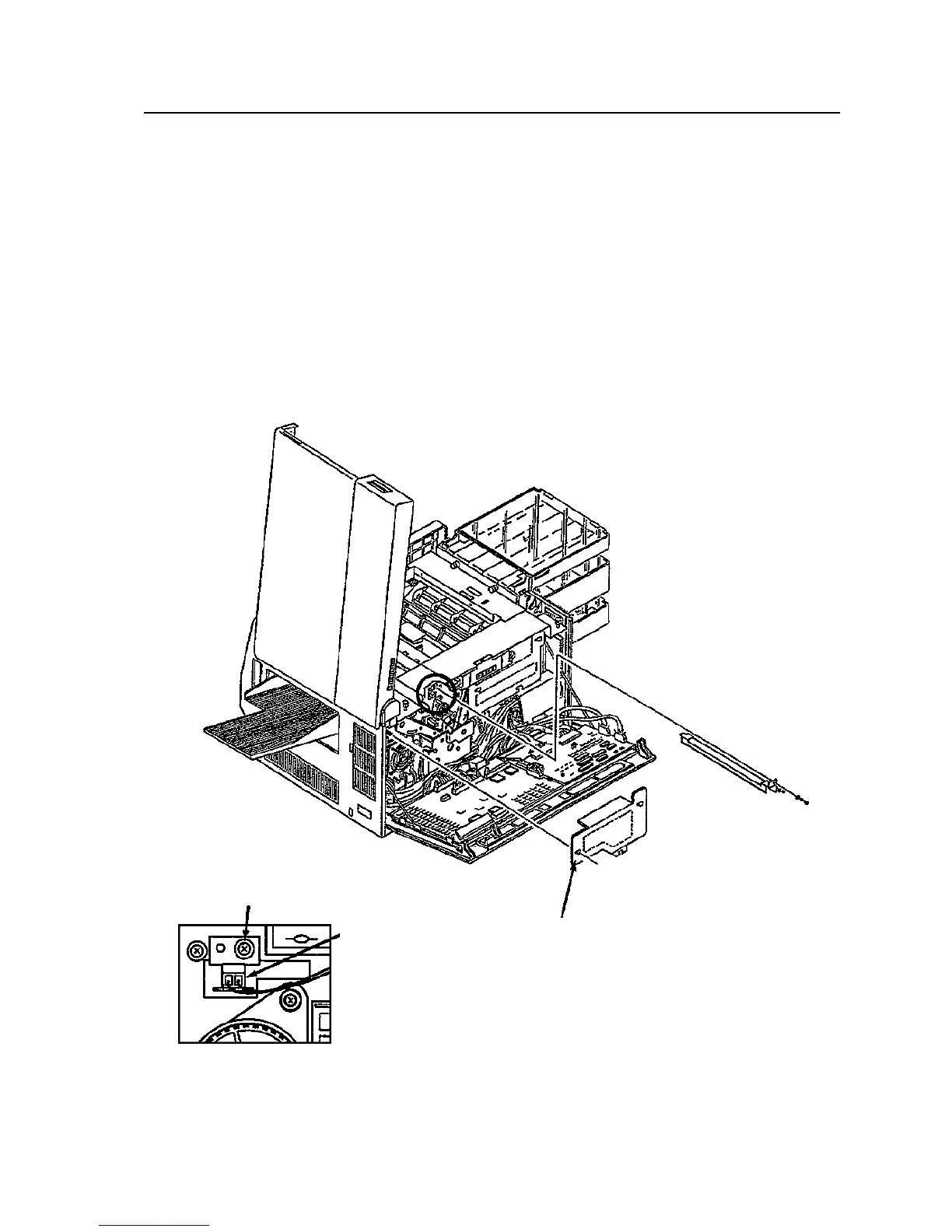

Back Detail
CN26
Mounting Screw
Fuser Drive Cover
To Next Page
