EP Cover Removal
7-86 Removal/Replacement Procedures June 1999
6 Remove the fuser drive cover (three screws).
7 Remove the two supports for the vacuum transport unit (one screw each).
8 Duplex only: Remove the duplex fan (see page 7-27).
9 Remove the four screws holding the EP cover in place (two front and two back).
10 Remove the upper right screw holding the fuser drive in place.
11 Lift the EP cover straight up and out of the printer.
Replacement Note:
The higher of the two drive shaft support arms should be facing the left side of the printer.

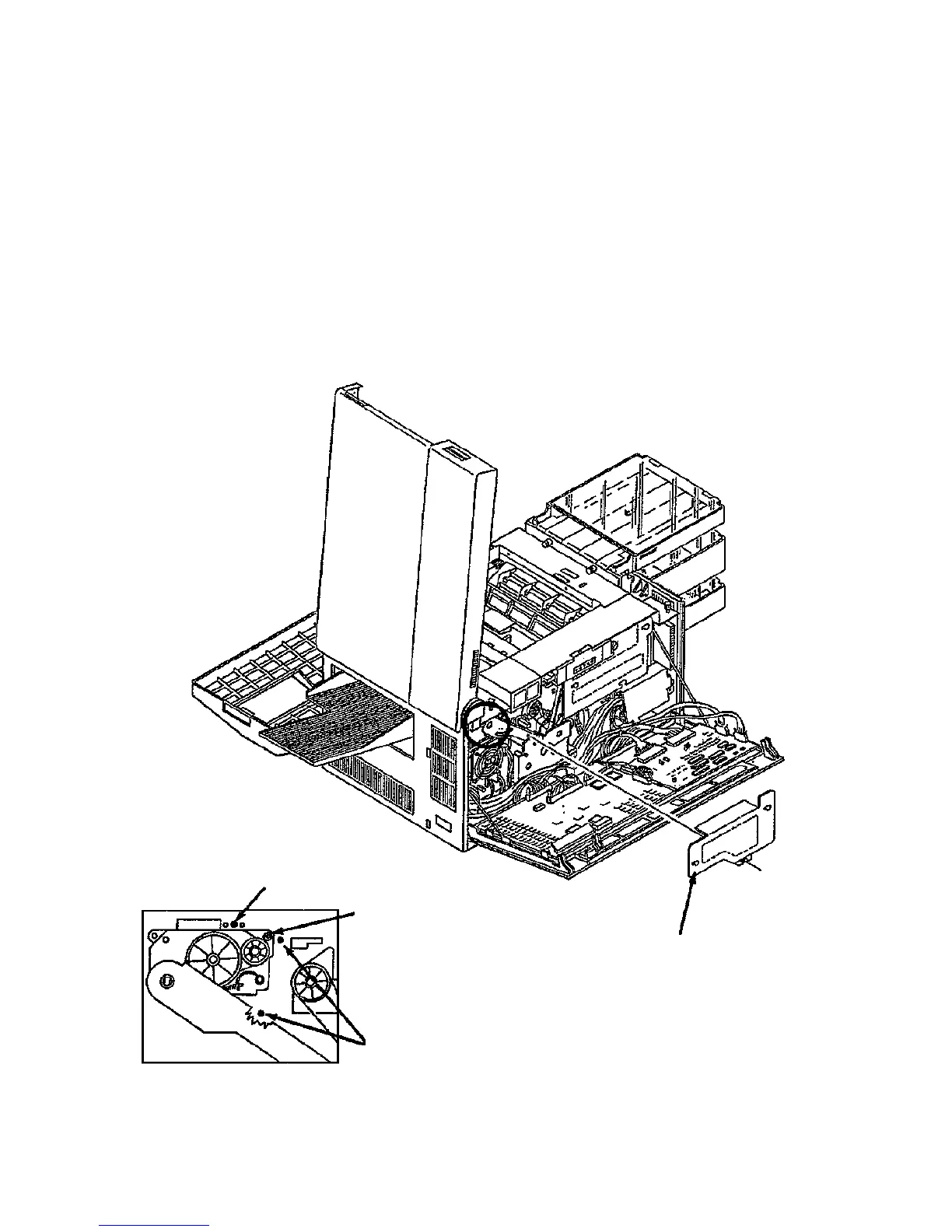

Support Screw
Fuser Drive Screw
EP Cover Screws
Back Detail
Fuser Drive Cover
To Next Page
