Upper Duplex Drive/Clutch Assembly Removal
June 1999 Removal/Replacement Procedures 7-95
Upper Duplex Drive/Clutch Assembly Removal

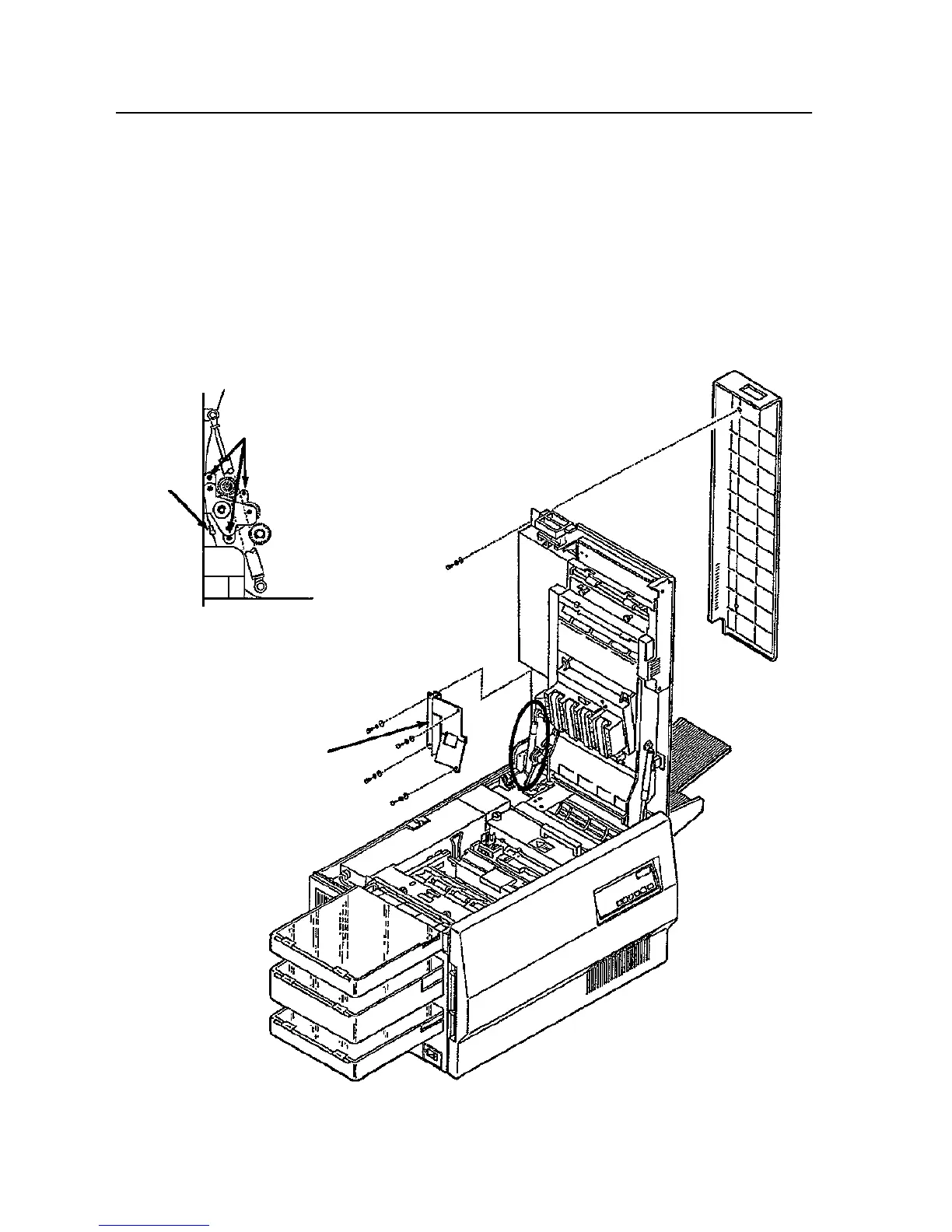

To remove the upper duplex drive/clutch assembly:
1 Open the top cover.
2 Remove the rear duplex cover (see page 7-17).
3 Remove the lower duplex roller cover (four screws).
4 Disconnect CN316.
5 Remove the upper duplex drive/clutch assembly (three screws).
Mounting Screws
CN316
Side Detail
Lower Duplex
Roller Cover
