Duplex Route Motor/Solenoid Assembly Removal
7-96 Removal/Replacement Procedures June 1999
Duplex Route Motor/Solenoid Assembly Removal
To remove the duplex route motor/solenoid assembly:
1 Open the top cover.
2 Remove the rear duplex cover (see page 7-17).
3 Remove the upper duplex roller cover (four screws).
4 Disconnect CN313 and CN314.
5 Remove the duplex route motor/solenoid assembly (three screws).

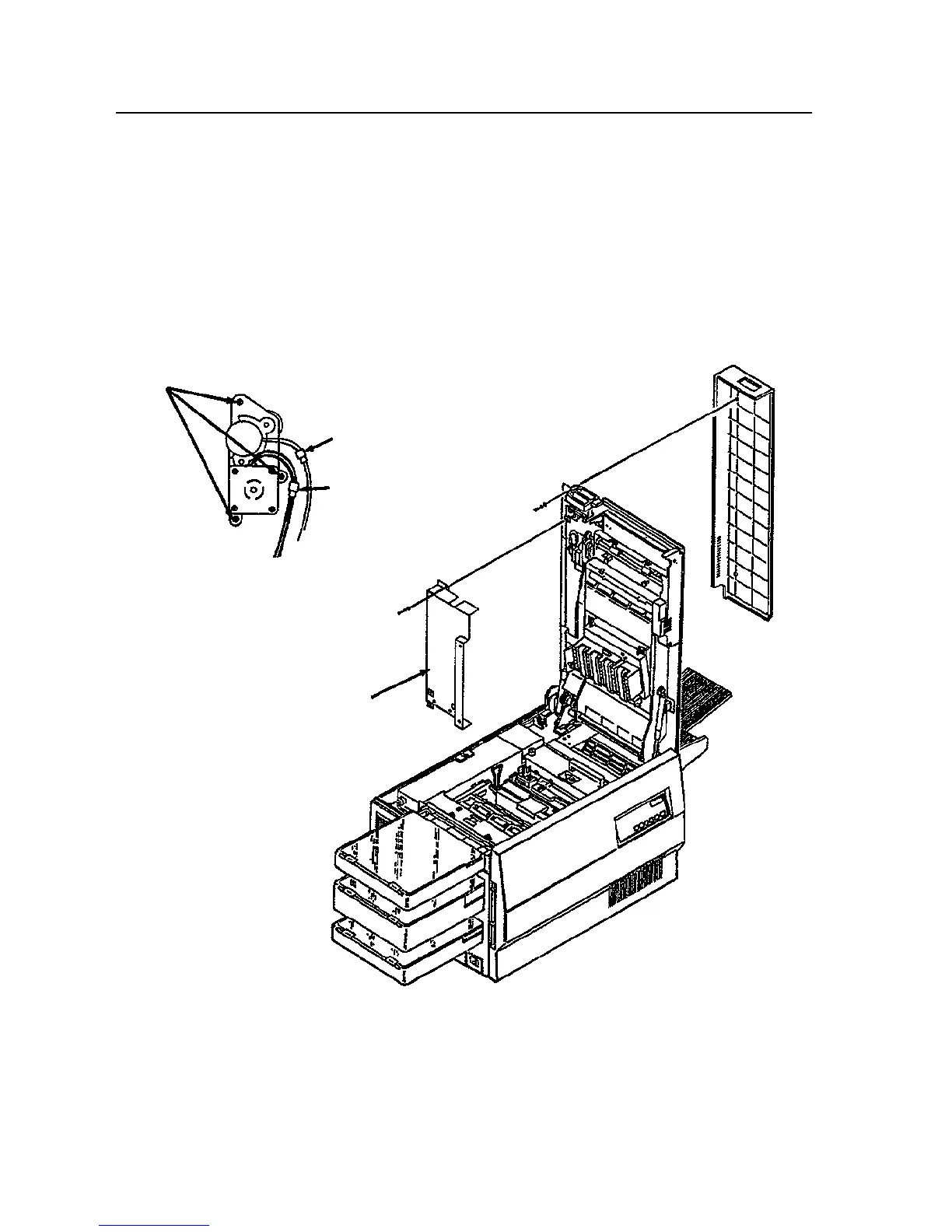

Mounting Screws
Duplex Route Motor/Solenoid Detail
CN314
CN313
Upper Duplex
Roller Cover
