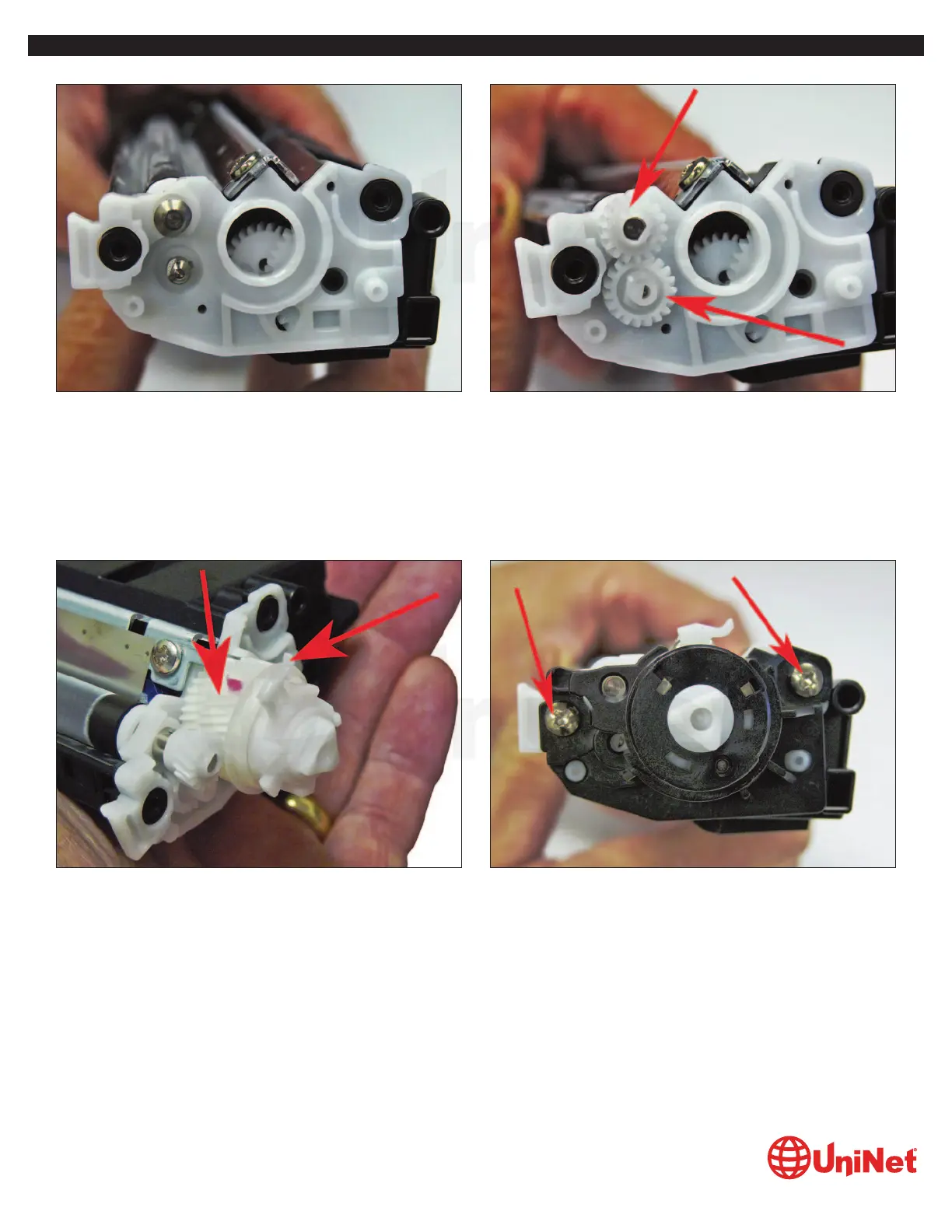

23. Press the inner end cap in place. 24. Install the two gears on the feed and developer roller shafts.
25. Install the drum drive gear.
Make sure the white tab is facing up!
26. Install the end cap and two screws.
