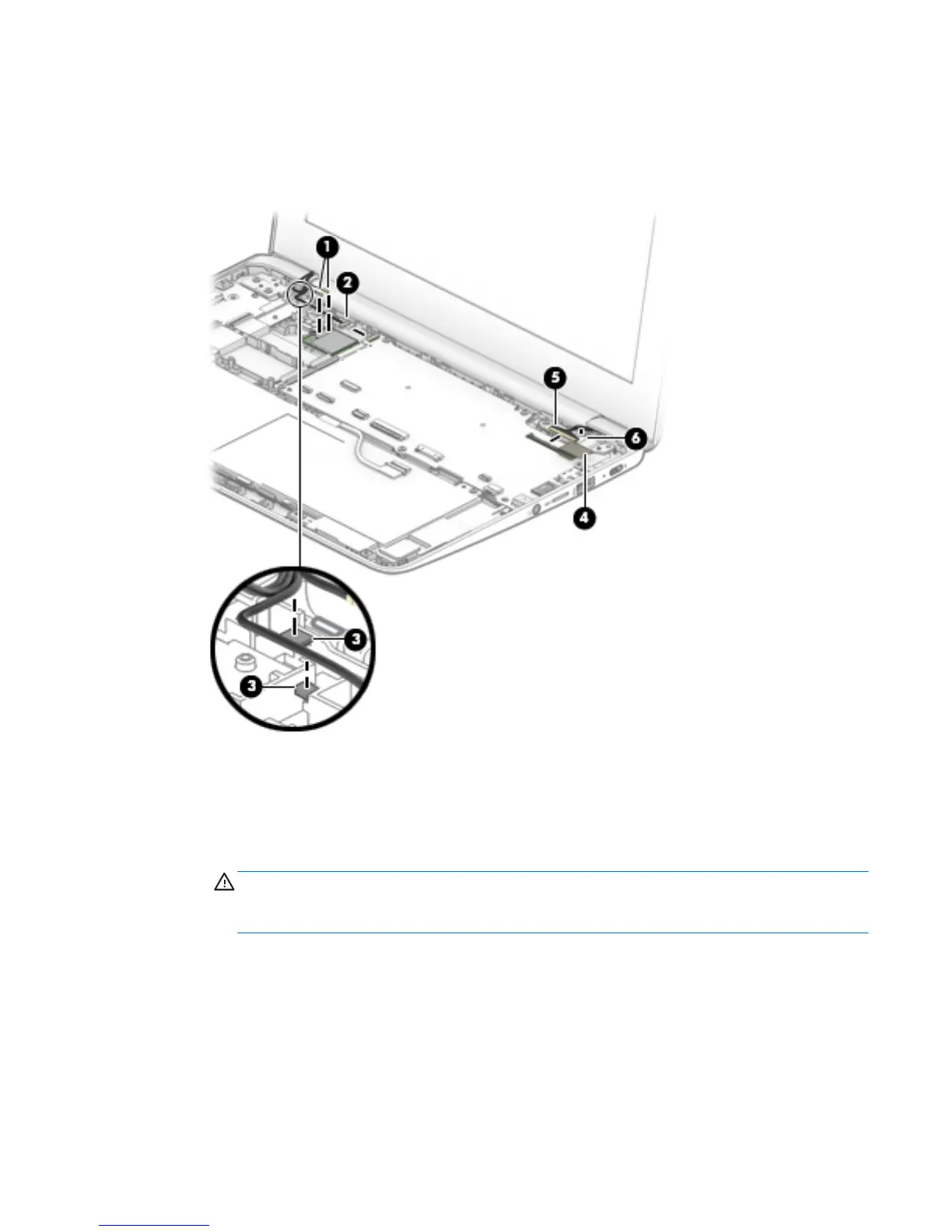

4. Release the adhesive strip (4) that secures the display panel cable to the system board.
5. Disconnect the display panel cable (5) from the system board.
6. Release the display panel cable from the retention clips (6) and routing channels built into
the bottom cover.
7. Open the computer as far as it will open.
8. If it is necessary to replace the display bezel or any of the display assembly subcomponents:
a. Release the top edge of the display bezel (1) from the display assembly.
b. Release the left and right edges of the display bezel (2) from the display assembly.
CAUTION: There is double-sided adhesive (3) on the inside edge of the display bezel bottom edge.
Use caution when releasing the display bezel bottom edge. Failure to follow this caution can result in
personal injury or damage to the display bezel.
c. Release the bottom edge of the display bezel (4) from the display assembly.
Component replacement procedures 35
