● Touchpad cable (ZIF) (7)
● Flat USB board cable from bottom of system board (ZIF) (8)
● Flat USB board cable from bottom of system board (ZIF) (9)

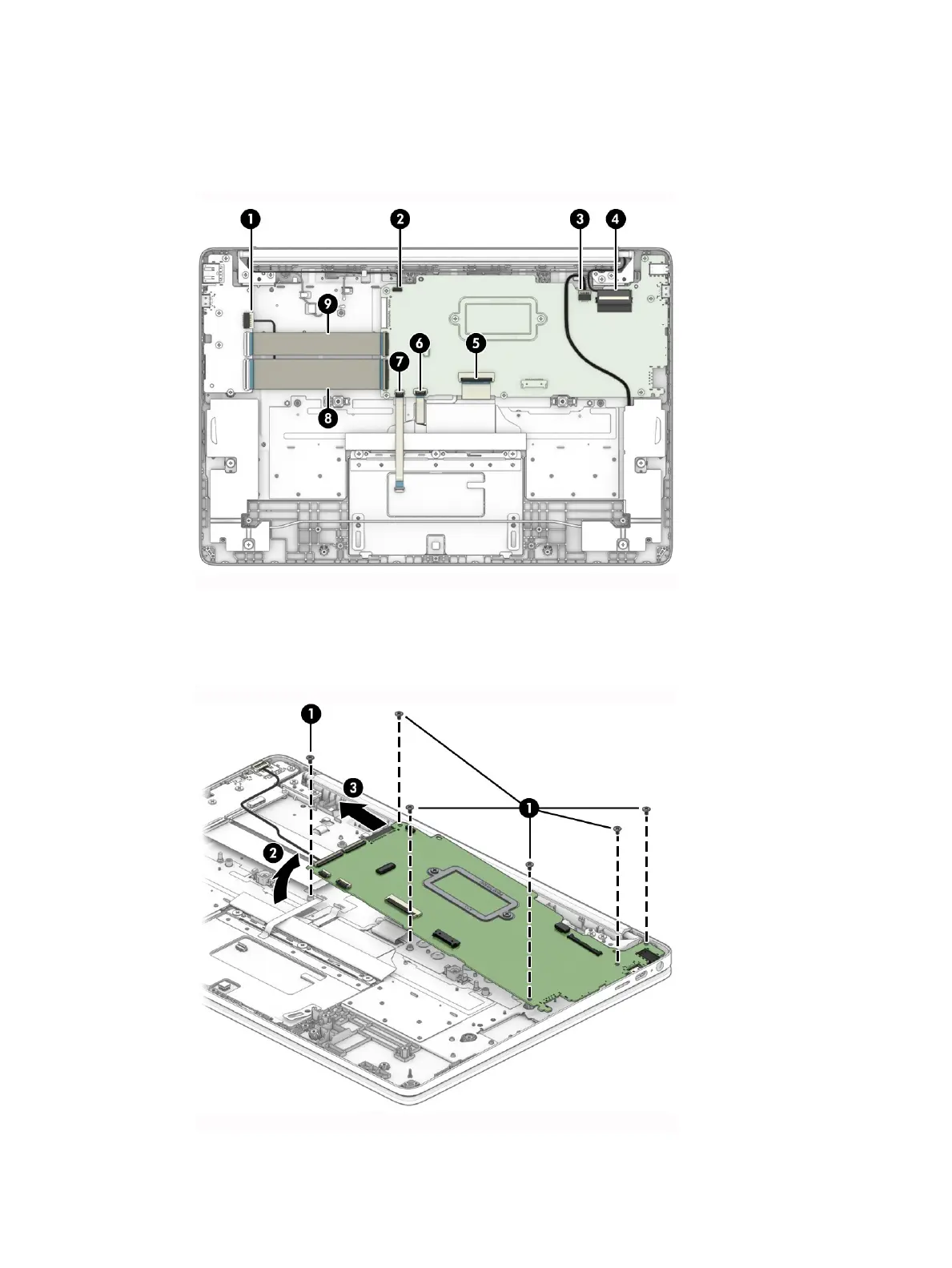

2. Remove the six Phillips M2.0 × 3.5 screws (1) that secure the system board to the computer.
3. Lift the left side of the system board upward (2), and then pull the system board to the left to remove it
from the computer (3).
Component replacement procedures 31
