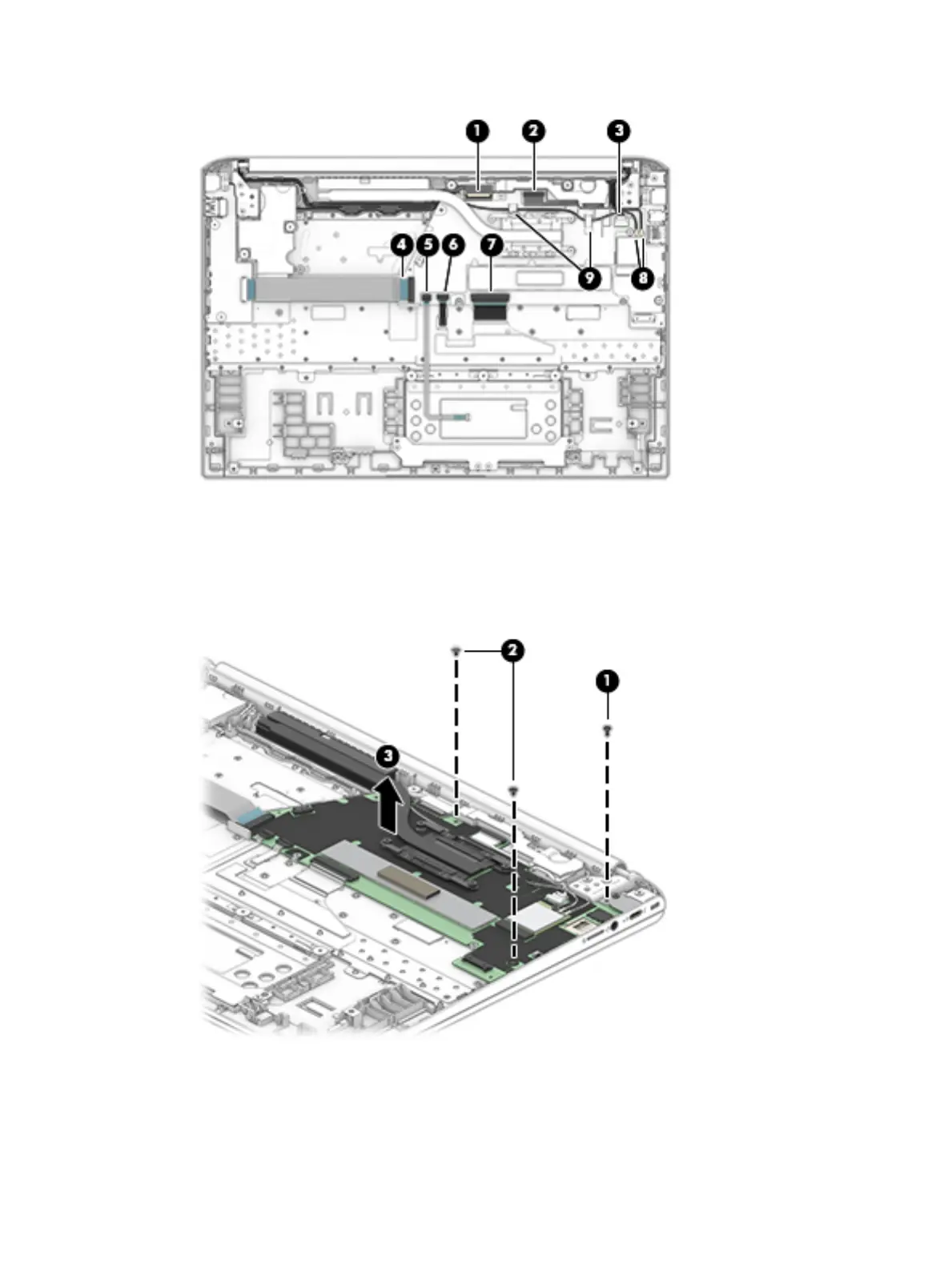

2. Remove the Phillips M2.0 × 4.0 screw (1) that secures the USB bracket to the system board.
3. Remove the two Phillips M2.0 × 3.0 screws (2) that secure the system board to the computer.
4. Lift and position the system board upside down to access the USB board cable connector underneath
(3).
5. Release the ZIF connector for the USB board cable on the bottom of the system board (1), and then
disconnect the cable (2).
Component replacement procedures 35
