HP Chromebook 15 Series User Manual

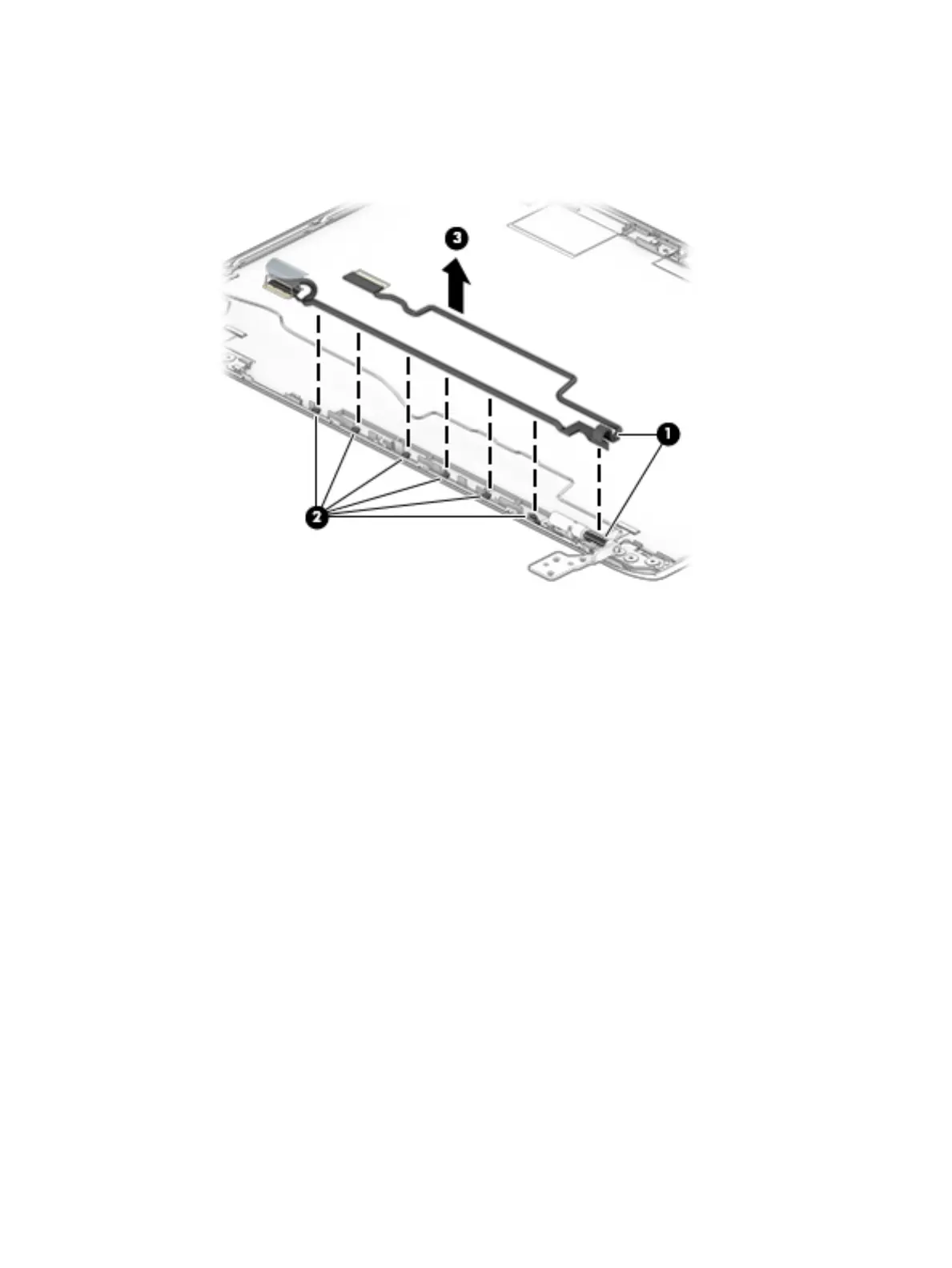

b. Remove the cable from the clips and routing path along the bottom of the back cover (2), and then
remove the cable from the back cover (3).
The display cable is available using spare part number L54825-001 on models with a touch display
and L54826-001 on models with a non-touch display.
15. If it is necessary to replace the wireless antennas:
a. Peel the antennas o the top of the display back cover (1).
46 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP Chromebook 15 Series Specifications

General

Operating System	Chrome OS
RAM	4GB, 8GB
Storage	32GB, 64GB eMMC
Display	HD (1366 x 768) or FHD (1920 x 1080)
Ports	2x USB-C 3.1, 2x USB-A 3.1, 1x 3.5mm Headphone/Microphone Combo Jack, 1x MicroSD Card Reader
Wireless	802.11ac Wi-Fi
