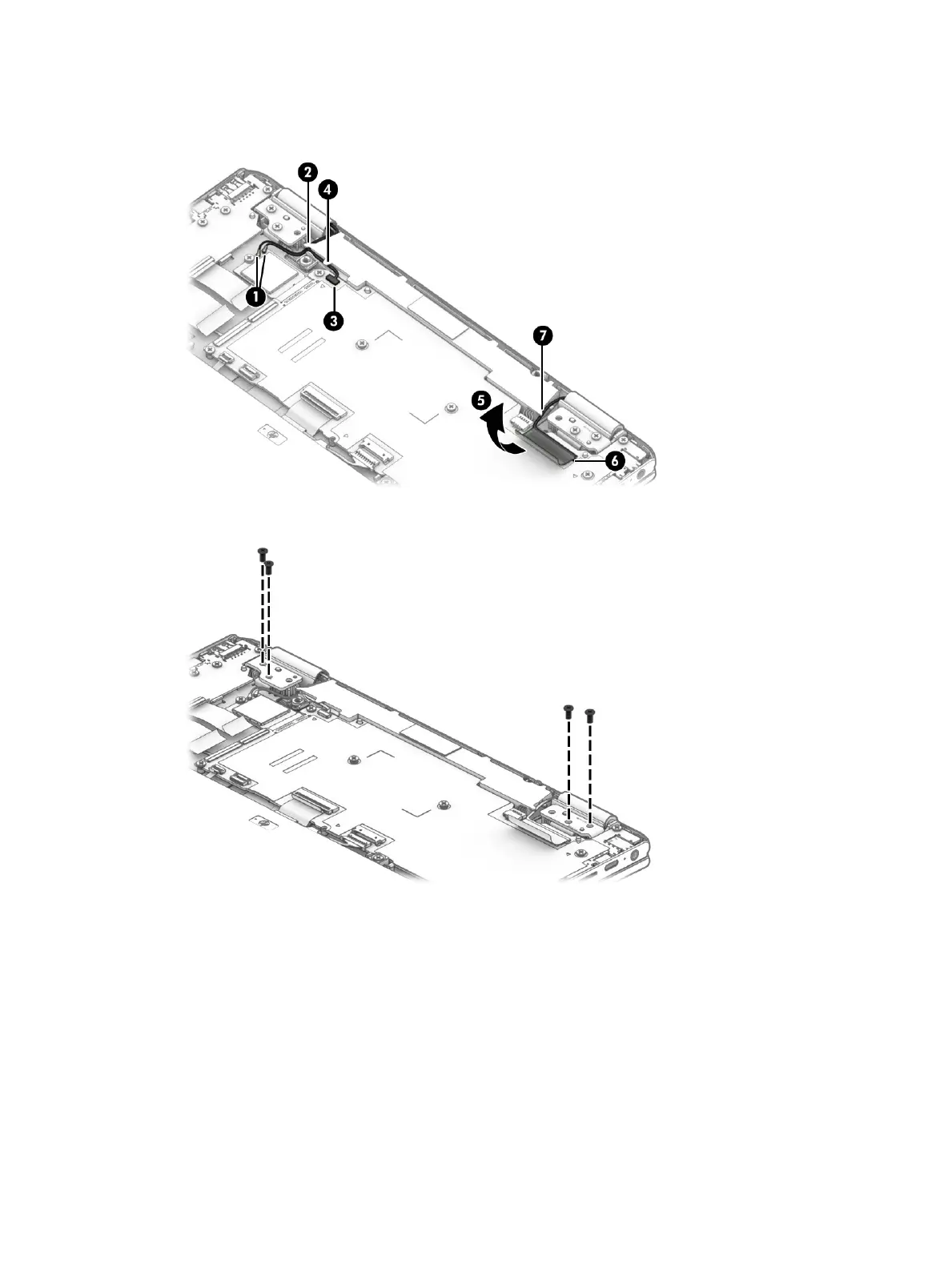

6. Disconnect the display panel cable (6) from the system board.
7. Release the display panel cable from the retention clip (7) and routing channel built into the speakers.
8. Remove the four Phillips M2.5×5.6 screws that secure the display assembly to the keyboard/top cover.
9. Swing the keyboard/top cover (1) up and away from the display assembly.
30 Chapter 5 Removal and replacement procedures
