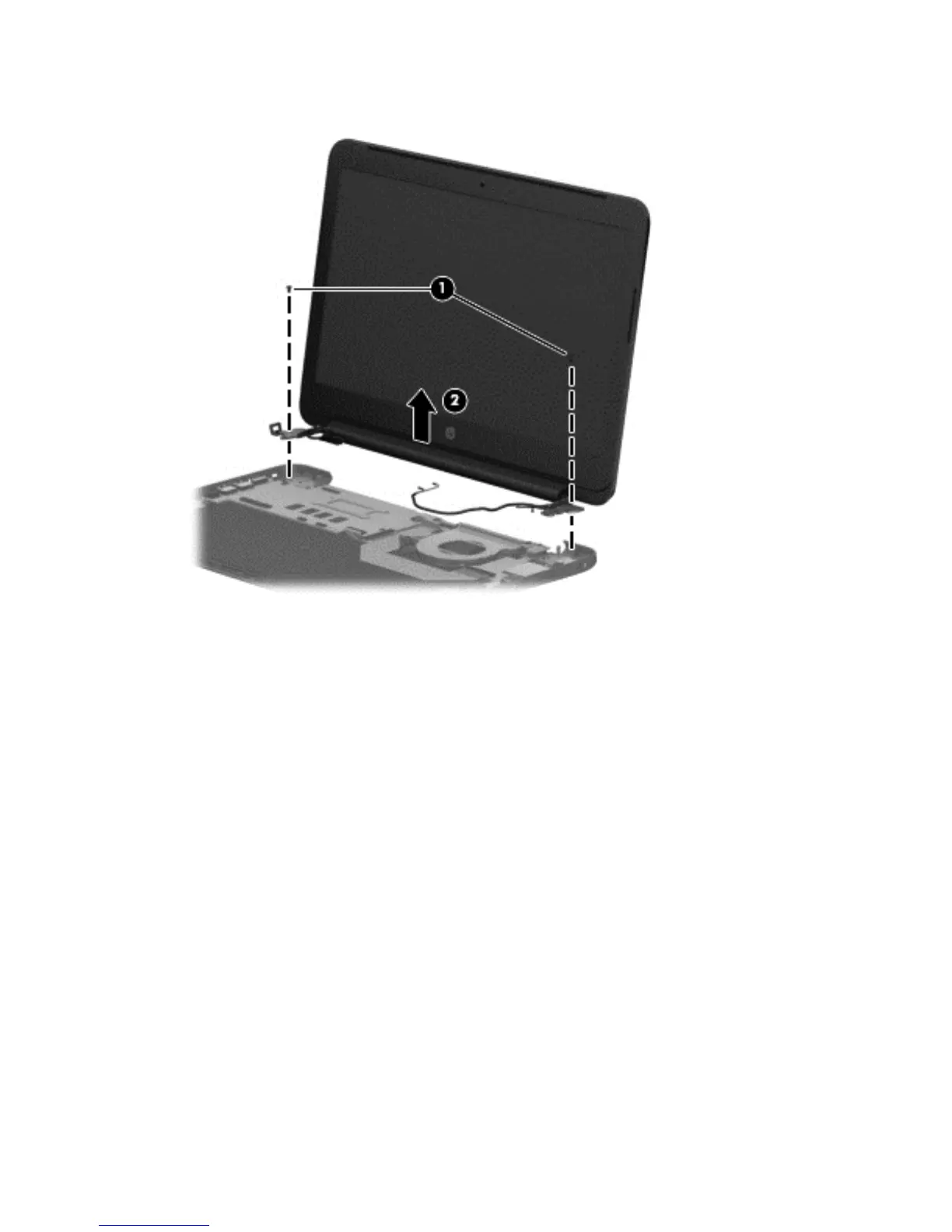

7. Remove the display assembly (2).
8. If it is necessary to replace the display bezel or any of the display assembly subcomponents:
a. Remove the two screw covers (1) and the two Phillips PM2.0×2.5 screws (2) that secure the
display bezel to the display assembly.
The screw covers are available in the following Rubber Kits:
●
741055-001–For use on computer models with ocean turquoise finish
●
743914-001–For use on computer models with peach coral finish
●
743915-001–For use on computer models with snow white finish
42 Chapter 4 Removal and replacement procedures preliminary requirements
