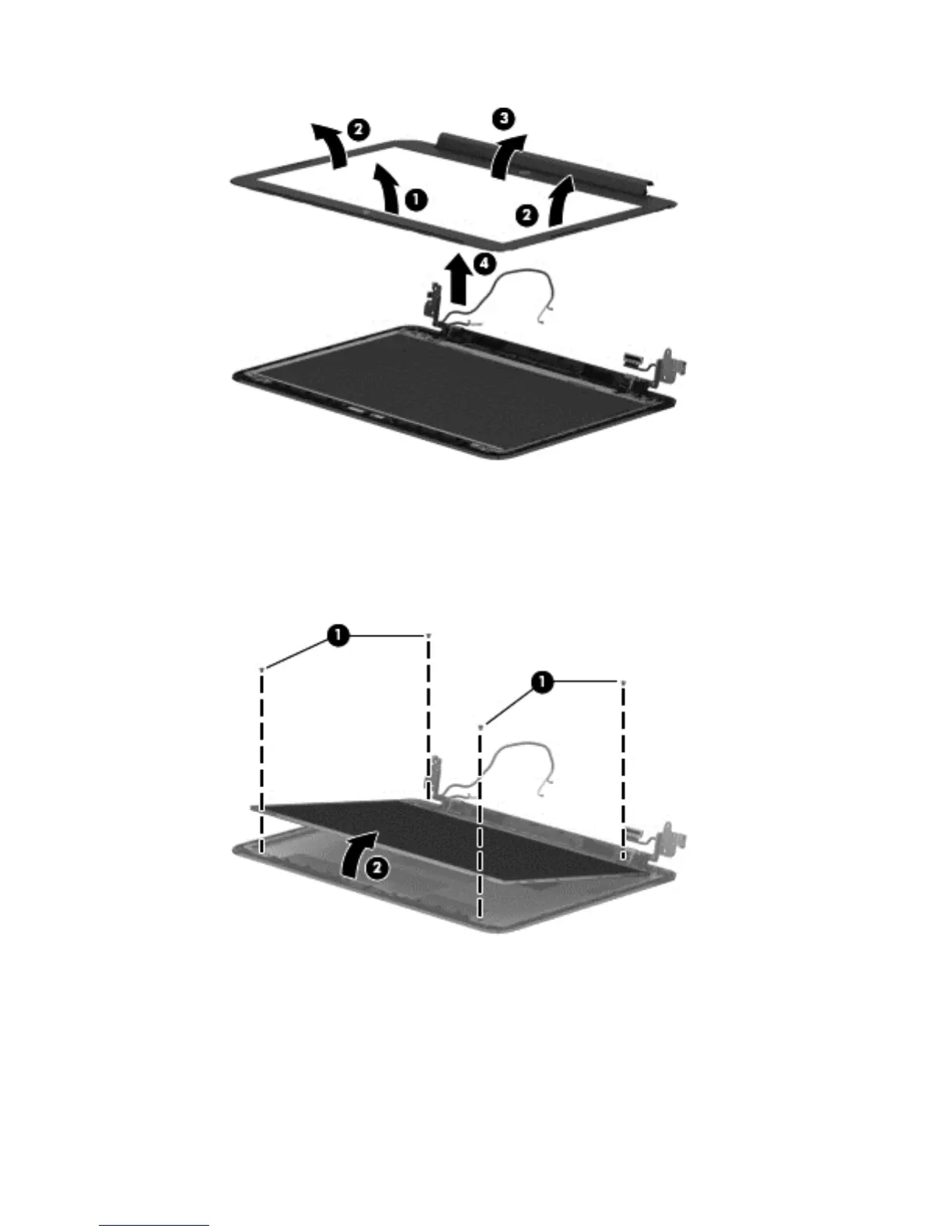

9. If it is necessary to replace the display panel:
a. Remove the four Phillips PM2.0×2.5 screws (1) that secure the display panel to the
display enclosure.
b. Lift the top edge of the display panel (2) until it rests at an angle.
c. Release the adhesive support strip (1) that secures the display panel cable to the
display panel.
d. Disconnect the display panel cable (2) from the display panel.
44 Chapter 4 Removal and replacement procedures preliminary requirements
