C7085-90921 Chapter 6 Removal and replacement 207
Transfer roller assembly
To remove the transfer roller assembly
1 Remove the HVPS.
2 Remove the left side cover.
3 Remove the ITB drawer.
4 Open the drum drawer and remove the drum cartridge.
5 Remove the star wheel assembly.
6 Using needle-nose pliers, remove the E-ring on each side of the shaft.
7 Remove the gear.
8 Remove the bushings.
9 Slide the assembly out of the chassis.

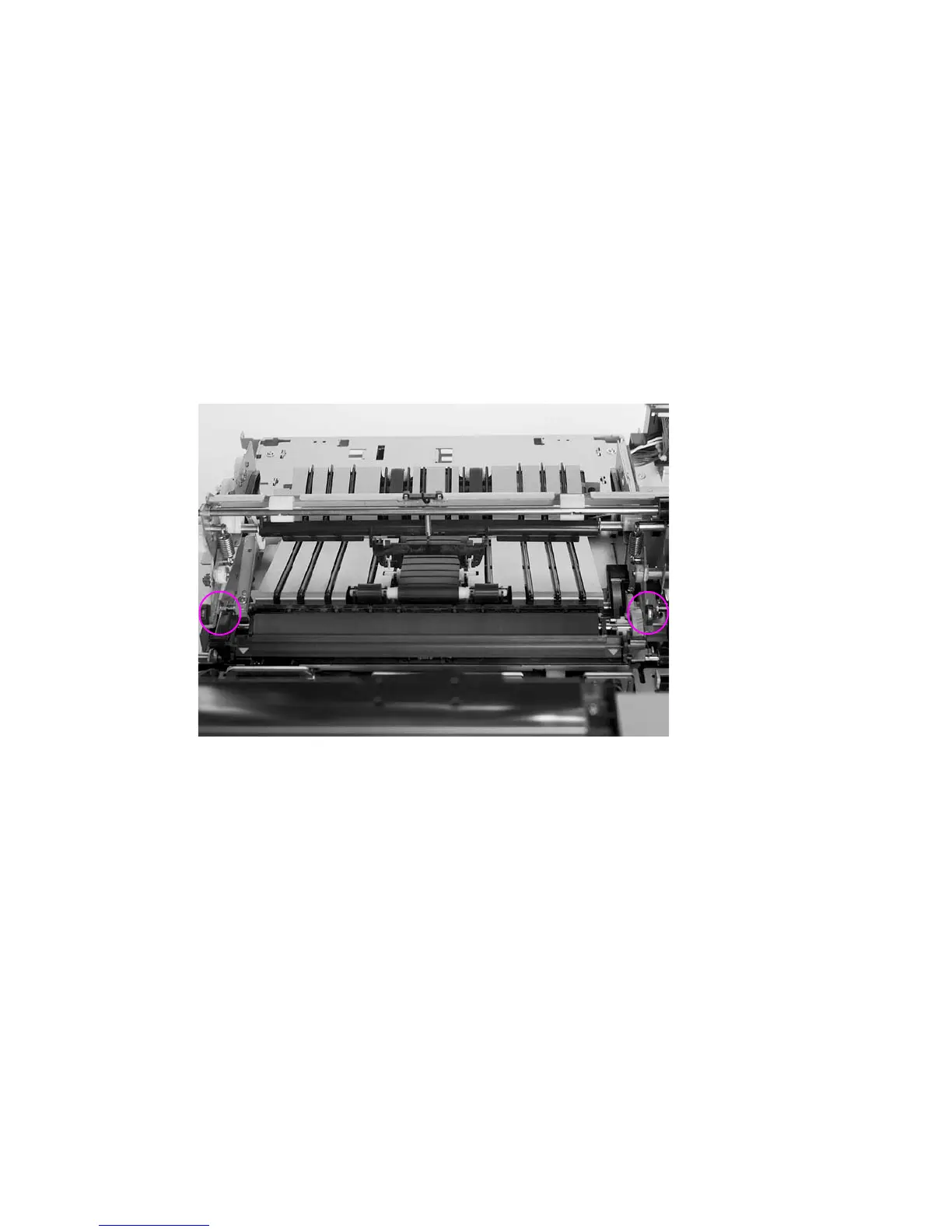

Figure 6-72 Transfer roller removal and replacement
